RS PRO Yellow Panel Mount Indicator, 2V dc, 14mm Mounting Hole Size, Lead Wires Termination

View all Panel Mount Indicators
Bulk discount available

Subtotal (1 unit)*

£2.35

(exc. VAT)

£2.82

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 17 unit(s), ready to ship
Units
Per unit
1 - 24£2.35
25 - 49£2.10
50 - 99£1.86
100 - 249£1.59
250 +£1.32

*price indicative

RS Stock No.:
209-131
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Voltage Rating

2V dc

Light Output Colour

Yellow

Mounting Hole Size

14mm

Lamp Type

LED

Termination Type

Lead Wires

Bezel Style

Prominent

Bezel Colour

Black

Current Rating

20mA

Intensity

30mcd

Length

21mm

COO (Country of Origin):
GB

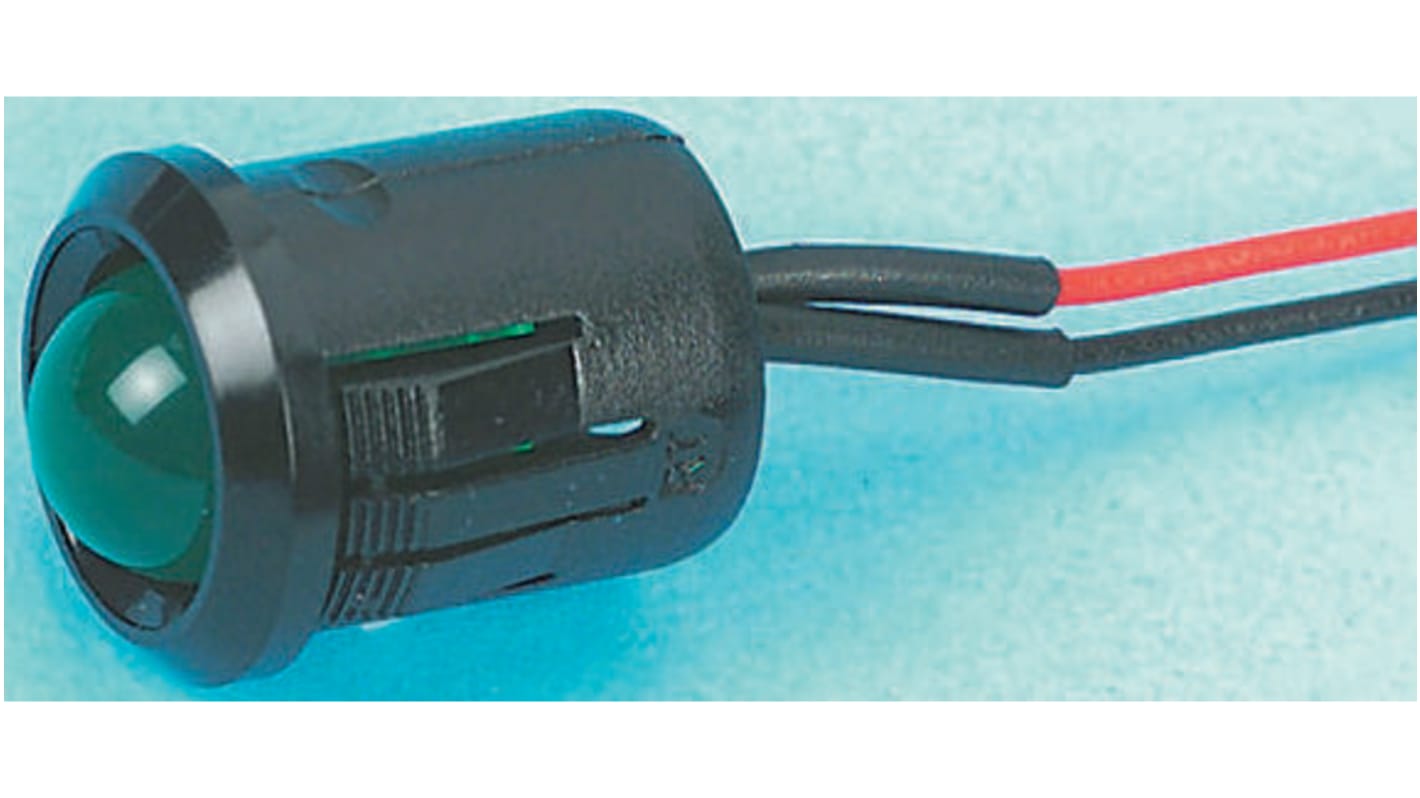

RS Pro Snap-in LED Indicators, 14 mm Mount


Brought to you by RS Pro, a range of LED indicators. Each indicator has a compact and robust high quality build, complete with a snap-in technology. The incredible ease of the installation process ensures these LED indicators are perfect for your application. All models are highly reliable and excellent quality.

Features and Benefits


• 10 mm tinted diffused epoxy lens
• Snap-in fixing, requires no additional hardware
• 16 mm black plastic recessed style bezel enhances LED contrast
• 500 mm length wire lead connection
• Life Expectancy 60000 Hours

What is a Snap-in indicator?


The snap-in ability of these indicators is a great asset for a simple and efficient installation process. Normally LED indicators would need to be fixed to the surface or mounting hole. These particular models incorporate 'snap-in' technology. It requires no additional hardware and can be quickly fixed to the mounting hole. They are pushed through the hole and the plastic catches around the side 'snap', fully fixing the indicator in place.

What are the uses of an Indicator?


Uses of indicators fall entirely down to the user. They can be fixed to PCB circuit boards and mounted on push buttons and switches. Primarily, these types of indicators are used within circuit boards and electronic designs. This is due to their relatively small size, as compared with other types of indicators, such as car turn signals.

Why choose LED?


For excellent performance, enhanced by a long life and low power consumption, then LED is the way forward. However, there are various other reasons to consider:

• Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would.
• Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this wouldn't apply if the LED indicator is being used as a circuit board signal.
• Cost - typically as LED's are in a larger supply than standard bulbs or pilot lights, they are a more cost effective solution to purchase, as well as run.

Note

These LED indicators should not be operated without a suitable series resistor or other current-limiting device


10mm - 15.8mm Mounting


All products have a reverse voltage of 5V.
