MPN

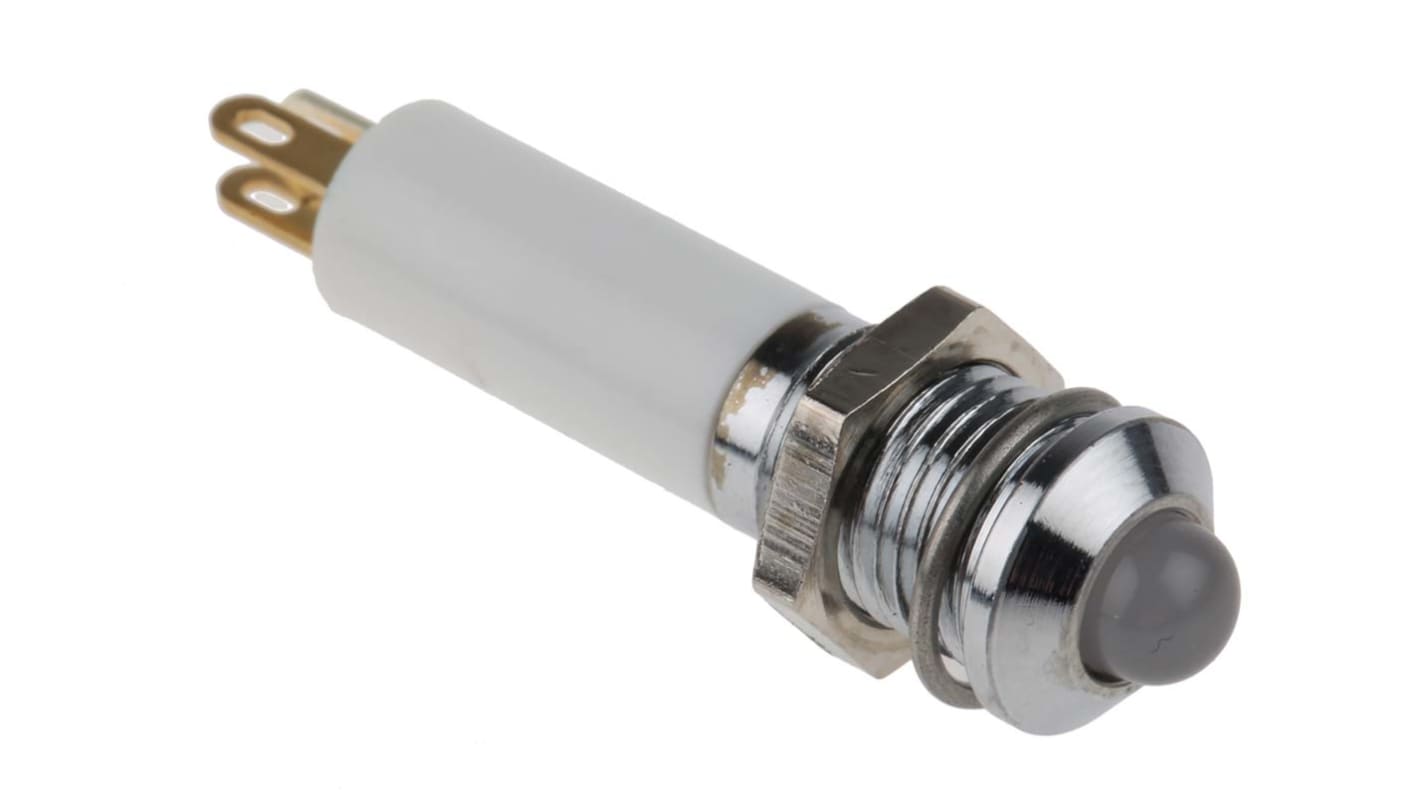

RS PRO Green, Red, Yellow Panel Mount Indicator, 12V dc, 8mm Mounting Hole Size, Solder Tab Termination

RS Stock No.:: 207-387
Brand:: RS PRO

RS PRO Green, Red, Yellow Panel Mount Indicator, 12V dc, 8mm Mounting Hole Size, Solder Tab Termination

Save 34% when you buy 100 units

Subtotal (1 unit)*

£8.14

(exc. VAT)

£9.77

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

287 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 14	£8.14
15 - 24	£7.33
25 - 49	£6.67
50 - 99	£6.02
100 +	£5.37

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Panel Mount Indicator, 12V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67

RS Stock No.: 700-1788

Each

£9.73

(exc. VAT)

£11.68

(inc. VAT)

RS Stock No.:: 207-387
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Voltage Rating	12V dc
	Light Output Colour	Green, Red, Yellow
	Mounting Hole Size	8mm
	Lamp Type	LED
	Lamp Size	10 mm
	Termination Type	Solder Tab
	Mounting Type	Panel Mount
	Bezel Style	Prominent
	Bezel Colour	Chrome
	Current Rating	20mA
	Intensity	10 mcd, 10 mcd, 20mcd
	Length	33.9mm

	Select all
	Brand RS PRO
	Voltage Rating 12V dc
	Light Output Colour Green, Red, Yellow
	Mounting Hole Size 8mm
	Lamp Type LED
	Lamp Size 10 mm
	Termination Type Solder Tab
	Mounting Type Panel Mount
	Bezel Style Prominent
	Bezel Colour Chrome
	Current Rating 20mA
	Intensity 10 mcd, 10 mcd, 20mcd
	Length 33.9mm

RS Pro 8mm LED Indicators

Brought to you by RS Pro, a range of LED indicators. Each indicator has a compact and robust high quality build, complete with a solder tab termination. The relative ease of the installation process ensures these LED indicators are perfect for your application. With tri-colour options available, the possibilities are endless. Whether the intended application is a signal, warning or purely a display, there are choices to suit all outcomes. All models are highly reliable and excellent quality.

Features and Benefits

• 5 mm coloured diffused epoxy lens
• Various voltages
• Tri-colour options
• Longevity and low power consumption
• Bright chrome bezel

What is a tri-colour LED?

Tri-colour indicators include two different coloured LED's. As standard, the two LED's will shine symmetrically and output a light with the mixture of the two. The best way to understand the function would be similar to mixing paint. As an example red and green would make yellow, if the two LED's were red and green, the emitting light from the indicator would be a bright yellow.

What are the uses of an Indicator?

Uses of indicators fall entirely down to the user. They can be fixed to PCB circuit boards and mounted on push buttons and switches. Primarily, these types of indicators are used within circuit boards and electronic designs. This is due to their relatively small size, as compared with other types of indicators, such as car turn signals.

Why choose LED?

LED's have many benefits, the longevity and low power consumption are the main selling points of an LED. However, there are various other reasons to consider:

• Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would.
• Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this wouldn't apply if the LED indicator is being used as a circuit board signal.

Do these LED Indicators come with suitable fixings?

As standard, each LED indicator is fully supplied with a fixing nut, washer and a gasket. To ensure a quick and easy installation process.
