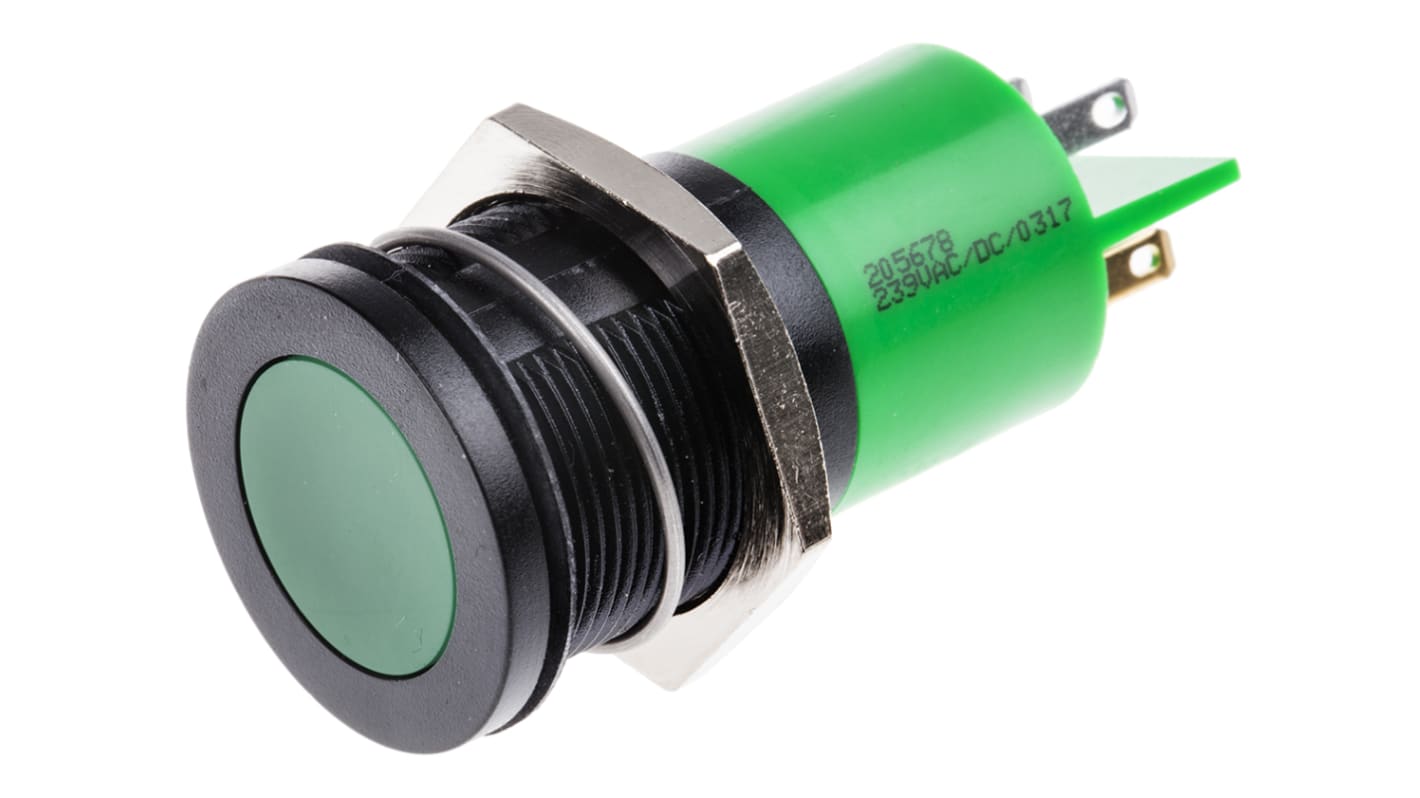

RS PRO Green Panel Mount Indicator, 230V ac, 22mm Mounting Hole Size, IP67
- RS Stock No.:
- 205-678
- Brand:
- RS PRO
36 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£21.44
(exc. VAT)
£25.73
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £21.44 |
| 10 - 24 | £19.36 |
| 25 - 49 | £17.41 |
| 50 - 99 | £15.48 |
| 100 + | £13.61 |
- RS Stock No.:
- 205-678
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LED Panel Indicators, 22mm Mounting, 130 & 230V a.c., with Lamp Test Facility
16mm coloured diffused round or flat lens
25mm dia. Black plastic bezel
Mounting hole size: 22mm to 22.5mm dia.
Sealed to IP67
Extra positive terminal for lamp test facility
2 negative terminals allow "daisy chaining"
0.11in. (2.8 x 0.8mm) terminals
25mm dia. Black plastic bezel
Mounting hole size: 22mm to 22.5mm dia.
Sealed to IP67
Extra positive terminal for lamp test facility
2 negative terminals allow "daisy chaining"
0.11in. (2.8 x 0.8mm) terminals
Note
It is recommended that the spare terminals are insulated if not used.
Supplied with
fixing nut and gasket
Specifications
Attribute | Value |
|---|---|
| Voltage Rating | 230V ac |
| Light Output Colour | Green |
| Mounting Hole Size | 22mm |
| Lamp Type | LED |
| IP Rating | IP67 |
| Bezel Style | Flush |
| Bezel Colour | Black |
| Current Rating | 3mA |
| Intensity | 66mcd |
| Length | 64mm |
