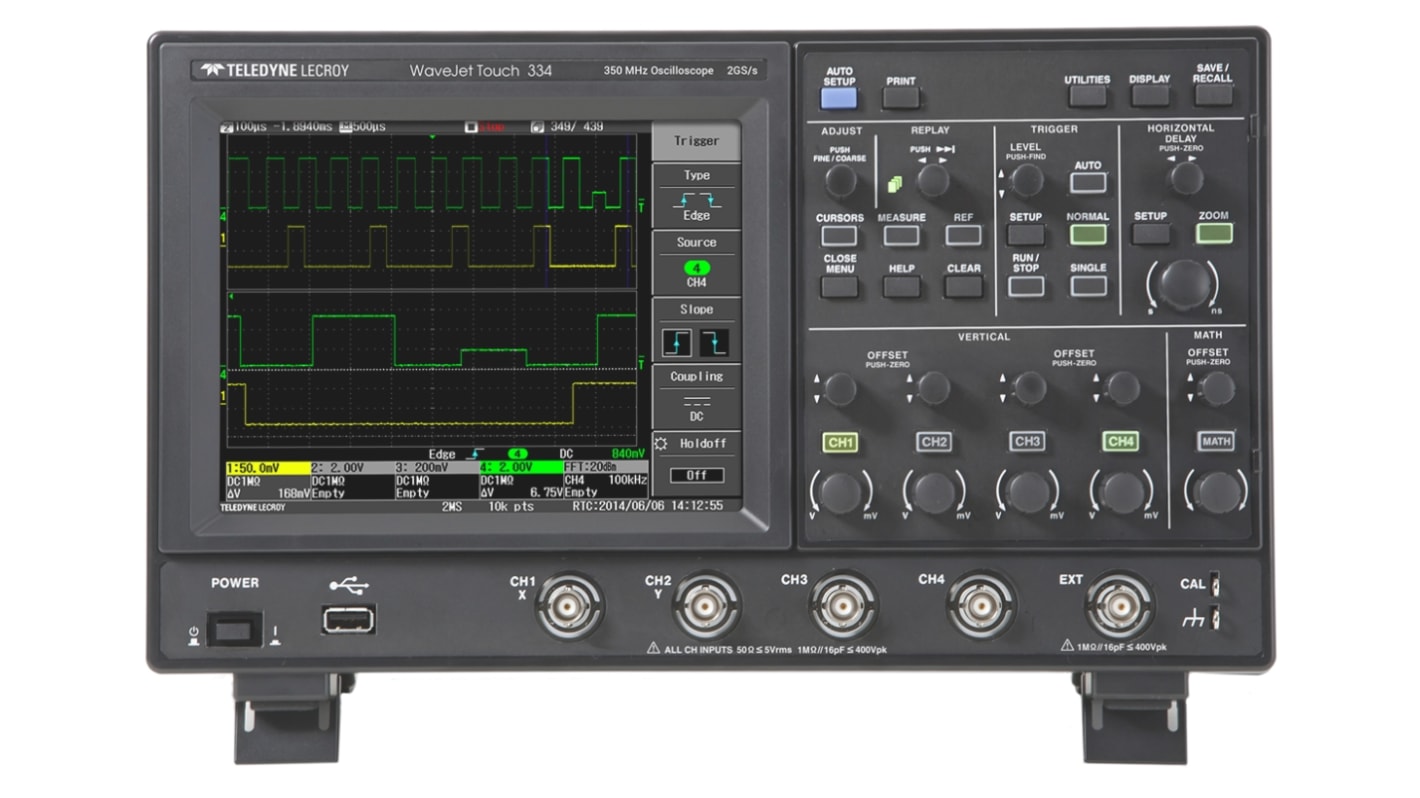

Teledyne LeCroy WaveJet 334 WaveJet Touch Series, 350MHz Bench Oscilloscope, 4 Analogue Channels
- RS Stock No.:
- 825-1502
- Mfr. Part No.:
- WaveJet 334T
- Brand:
- LeCroy
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 825-1502
- Mfr. Part No.:
- WaveJet 334T
- Brand:
- LeCroy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LeCroy | |
| Bandwidth | 350MHz | |
| Number of Analogue Channels | 4 | |
| Oscilloscope Type | Bench | |
| Interface | USB | |
| Sample Rate Random | 1 Gsps, 100 Gsps | |
| Screen Size | 7.5in | |
| Series | WaveJet Touch | |
| Record Length | 500k points/ch | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Weight | 3.2kg | |
| Safety Category Level | CAT I | |
| Plug Type | IEC Power Plug | |
| Vertical Resolution | 8 bit | |
| Maximum Time Base | 50s/div | |
| Battery Life | 5 yr | |
| Height | 190mm | |
| Minimum Time Base | 500ps/div | |
| Dimensions | 102 x 285 x 190mm | |
| Length | 102mm | |
| Maximum Vertical Sensitivity | 2V/div | |
| Power Source | AC Adapter | |
| Rise Time | 1ns | |
| Display Type | TFT LCD | |
| Select all | ||
|---|---|---|
Brand LeCroy | ||
Bandwidth 350MHz | ||
Number of Analogue Channels 4 | ||
Oscilloscope Type Bench | ||
Interface USB | ||
Sample Rate Random 1 Gsps, 100 Gsps | ||
Screen Size 7.5in | ||
Series WaveJet Touch | ||
Record Length 500k points/ch | ||
Minimum Vertical Sensitivity 2mV/div | ||
Weight 3.2kg | ||
Safety Category Level CAT I | ||
Plug Type IEC Power Plug | ||
Vertical Resolution 8 bit | ||
Maximum Time Base 50s/div | ||
Battery Life 5 yr | ||
Height 190mm | ||
Minimum Time Base 500ps/div | ||
Dimensions 102 x 285 x 190mm | ||
Length 102mm | ||
Maximum Vertical Sensitivity 2V/div | ||
Power Source AC Adapter | ||
Rise Time 1ns | ||
Display Type TFT LCD | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
LeCroy WaveJet Touch Oscilloscope
The LeCroy WaveJet touch 350MHz oscilloscope offers the performance, features, and touch screen user interface to simplify operation and shorten debug time. It has 4 analogue channels. The compact design features a 7.5” touch screen, providing the convenience of touch operation in a portable design. Every detail of the waveform can be captured and easily measured. The choice of normal, peak detects, average and high-resolution acquisition modes provide flexibility when acquiring waveforms.
Note:
Accessories available separately include: soft carrying case 851-3084
Note:
Accessories available separately include: soft carrying case 851-3084
rackmount kit 851-3080
Supplied with:
Protective front cover, passive probe (1 per channel), Getting Started guide, multi-language user interface and context-sensitive help (English, Chinese, French, German, Italian, Japanese, Russian), GPIB, LAN, USB (1 host & 1 device) ports, power cable, calibration & performance certificate
Supplied with:
Protective front cover, passive probe (1 per channel), Getting Started guide, multi-language user interface and context-sensitive help (English, Chinese, French, German, Italian, Japanese, Russian), GPIB, LAN, USB (1 host & 1 device) ports, power cable, calibration & performance certificate
Features and Benefits
• Bandwidth is 350MHz
• Sampling rate is 2GSa/s
• Memory depth up to 5Mpts
• Standard Pass/Fail Mask and Measurement testing
• Standard I2C, SPI, and UART serial triggers
• Standard USB Host, USB Device, GPIB, and LAN connectivity
• Multi-language user-interface and help
• Ultra-quick boot time
• Sampling rate is 2GSa/s
• Memory depth up to 5Mpts
• Standard Pass/Fail Mask and Measurement testing
• Standard I2C, SPI, and UART serial triggers
• Standard USB Host, USB Device, GPIB, and LAN connectivity
• Multi-language user-interface and help
• Ultra-quick boot time
Certifications
• UL 61010-1 listed
• UL 61010-2-030:2010 Listed
• CAN/CSA C22.2 No. 61010-1-12 approved
• UL 61010-2-030:2010 Listed
• CAN/CSA C22.2 No. 61010-1-12 approved
