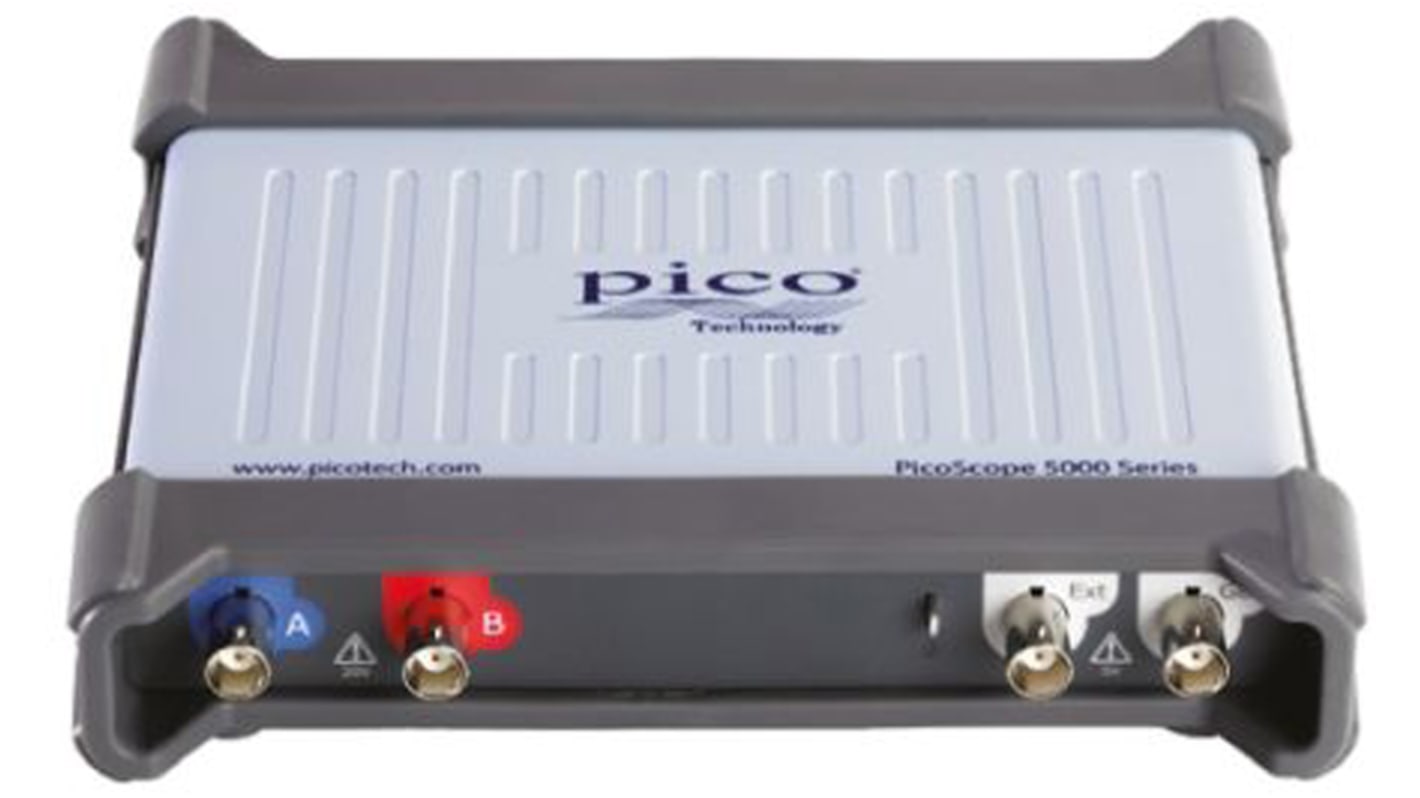

The PicoScope 5000 Series incorporates valuable high end features as standard. These include mask limit testing, serial decoding, advanced triggering, automatic frequency-domain measurements, math, X-Y mode, digital filtering and segmented memory. Each PicoScope 5000 oscilloscope comes with an easy-to-use software development kit (SDK) which enables users to view real-time signals, zoom in on a signal and save and print captured waveforms. PicoScope software is regularly updated and currently includes an autosetup function together with more than 30 automated measurements. The oscilloscopes are small, light and portable. In 2-channel mode the 5000 Series scopes can be powered from USB only. The 4-channel models come with an external power supply. Field applications include design, research, test, education, service and repair.

2 (52xxx models) or 4 (54xxx models) BNC analog input channels
1 BNC external trigger input
1 BNC AWG/function generator output
1 probe compensation output

Front panel

1 DC power socket
1 USB 2.0 port

Rear panel

The Function Generator (fitted on all 5000 Series models) comprises: standard output signals - sine, square, triangle, DC voltage; standard signal frequency DC to 20MHz; output frequency accuracy ±50ppm (±5ppm/year) for 60MHz models, ±2ppm (±1ppm/year) for 100MHz and 200MHz models; output frequency resolution <0.05Hz; output voltage range ±2V with ±1% DC accuracy; output voltage adjustment - signal amplitude and offset adjustable in approximately 0.25mV steps within overall ±2V range; amplitude flatness <2dB to 20MHz, typical @ 50Ω load; SFDR >70dB, 10kHz full-scale sine wave; connector type - BNC, 50Ω output impedance; overvoltage protection ±20V; sweep modes - up, down or alternating, with selectable start/stop frequencies and increments.

Probes (1 per channel), double-headed USB 2.0 cable, standard USB 2.0 cable (4-channel scopes only), mains power adapter (4-channel scopes only), Quick Start guide, software and reference CD

AWG: update rate 200MS/s; buffer size 16kS; resolution 14 bits; bandwidth >20MHz; rise time (10% to 90%) <10ns

Probes (2x60MHz), double-headed USB 2.0 cable, quick start guide, software and reference CD

Pico PC Based Instruments
