LeCroy HDO4022 HDO4000 Series Bench Oscilloscope, 2 Analogue Channels, 200MHz - RS Calibrated

View all Oscilloscopes
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Shop Probes
Don't forget your Probe
Whatever Oscilloscope you're in the market for, we have the probe to match.
Shop our full range of Probes here
RS Stock No.:
765-7050
Mfr. Part No.:
HDO4022
Brand:
LeCroy
Find similar products by selecting one or more attributes.
Select all

Brand

LeCroy

Bandwidth

200MHz

Number of Analogue Channels

2

Oscilloscope Type

Bench

Series

HDO4000

Calibrated

RSCAL

Power Source

Mains

Interface

USB

Display Type

LCD - Touch Screen

Minimum Vertical Sensitivity

1mV/div

Maximum Vertical Sensitivity

10V/div

Minimum Time Base

20ps/div

Screen Size

12.1in

Sample Rate Random

2.5 G samples/s

Record Length

12.5M points/ch

Dimensions

399.4 x 131.31 x 291.7mm

Weight

5.9kg

Vertical Resolution

12 bit

Maximum Time Base

10000s/div

Rise Time

1.75ns

Safety Category

CAT I, CAT II

RoHS Status: Exempt

COO (Country of Origin):
US

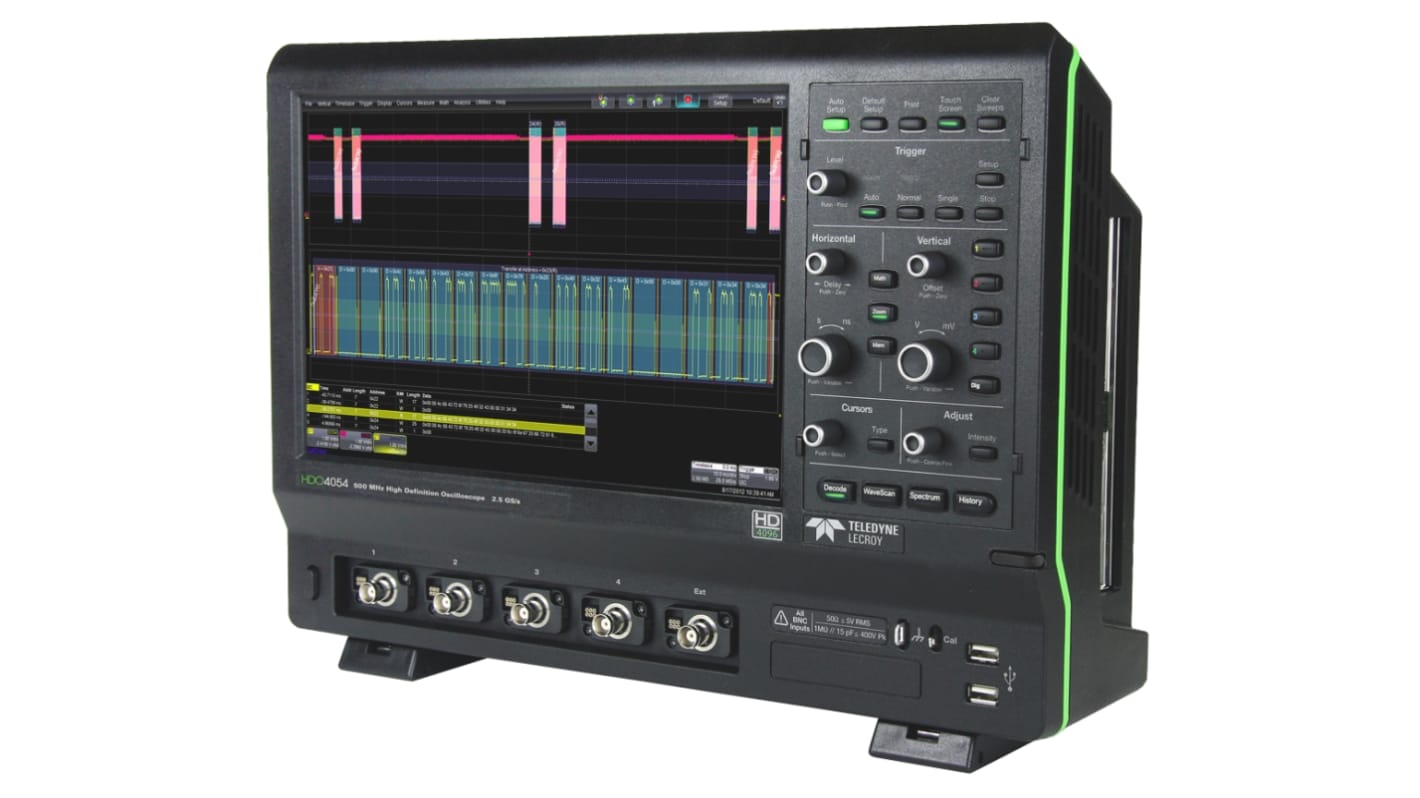

HDO4000 High Definition Oscilloscopes


The HDO4000 models offer precise measurements and quick debug. They combine Teledyne LeCroy's HD4096 high definition technology with long memory, a compact form factor, 12.1 inch WXGA multi-touch display and powerful debug tools. Innovative rotating/tilting feet facilitate four different viewing positions for optimum flexibility in use.

Teledyne LeCroy HD4096 high definition technology
12-bit ADC resolution
Multi-language user interface
Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
WaveScan advanced search and find (e.g. for runts, glitches)
LabNotebook documentation and report generation (at single button press)
History mode waveform playback
Spectrum analyzer mode

Note

HDO4000 accessories available separately include: passive probes PP026-1 or PP026-2 ( 922-5270 or 922-5273 ); current probes CP030A ( 878-7604 ) and CP031A ( 878-7607 ); high voltage differential probe HVD3106-6M ( 878-7601 ), HVD3206-6M ( 918-6866 ); active probe ZS1500 ( 878-7610 ); active differential probes ZD500 ( 878-7613 ) and ZD1500 ( 878-7617 ); trigger and decode options CAN FD ( 851-3191 ), ENET bus ( 878-7629 ); Manchester bus ( 878-7623 ), NRZ bus ( 878-7632 ), CAN LIN FlexRay package ( 878-7635 ), CAN ( 878-7639 ), LIN ( 878-7648 ), FlexRay ( 878-7641 ), SENT bus ( 878-7645 ), 12C SPI UART RS232 package ( 878-7654 ), 12C bus ( 878-7651 ), SPI bus ( 878-7663 ), UART RS232 bus ( 878-7679 ), AudioBus ( 878-7682 ), DigRF 3G bus ( 878-7689 ), DigRF V4 bus ( 878-7698 ), D-PHY bus ( 878-7695 ), ARINC 429 bus symbolic ( 878-7708 ), MIL-STD-1553 ( 878-7695 ), USB 2.0 bus ( 878-7718 ), USB 2.0 HSIC ( 878-7724 ), Power Analysis ( 878-7749 ), Spectrum Analysis ( 878-7746 ).

Supplied with

Passive probes (1 per channel), Getting Started Guide, Anti-virus Software (Trial Version), Microsoft Windows Embedded Standard 7 P 64-Bit License, Commercial NIST Traceable Calibration with Certificate, power cable
