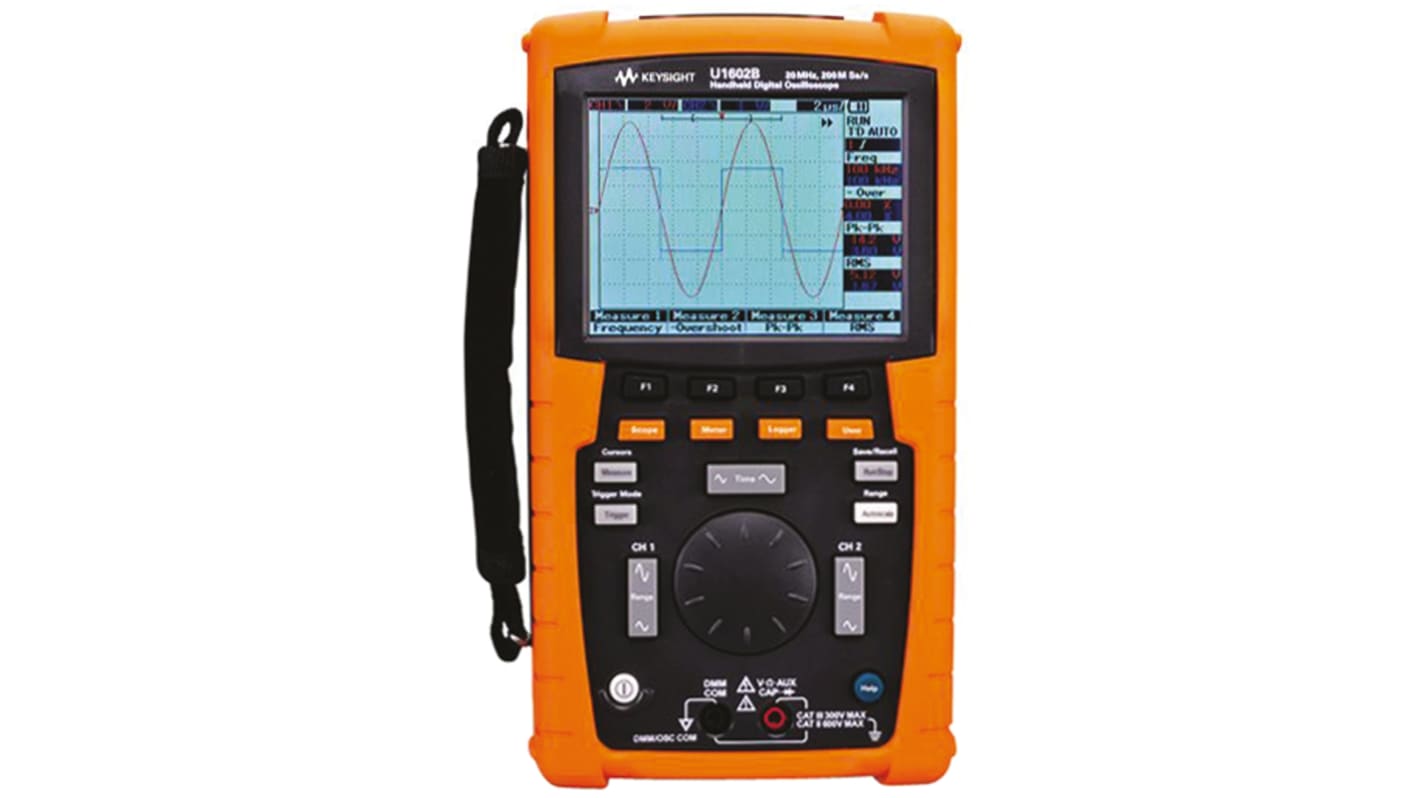

Keysight Technologies U1602B U1600 Series Handheld Oscilloscope, 20MHz
- RS Stock No.:
- 697-8886
- Mfr. Part No.:
- U1602B-001
- Brand:
- Keysight Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 697-8886
- Mfr. Part No.:
- U1602B-001
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Bandwidth | 20MHz | |
| Oscilloscope Type | Handheld | |
| Series | U1600 | |
| Interface | USB | |
| Power Source | Battery | |
| Display Type | LCD | |
| Minimum Vertical Sensitivity | 5mV/div | |
| Maximum Vertical Sensitivity | 100V/div | |
| Minimum Time Base | 50ns/div | |
| Screen Size | 4.5in | |
| Sample Rate Random | 100 Msps, 200 Msps | |
| Length | 138mm | |
| Record Length | 250points | |
| Dimensions | 138 x 66 x 241mm | |
| Maximum Time Base | 50s/div | |
| Vertical Resolution | 8 bit | |
| Battery Type | Rechargeable NiMH | |
| Weight | 1.5kg | |
| Height | 241mm | |
| Battery Life | 4 h | |
| Safety Category Level | CAT III | |
| Safety Category Voltage | 300V | |
| Safety Category | CAT III 300 V | |
| Rise Time | 17.5ns | |
Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Bandwidth 20MHz | ||
Oscilloscope Type Handheld | ||
Series U1600 | ||
Interface USB | ||
Power Source Battery | ||
Display Type LCD | ||
Minimum Vertical Sensitivity 5mV/div | ||
Maximum Vertical Sensitivity 100V/div | ||
Minimum Time Base 50ns/div | ||
Screen Size 4.5in | ||
Sample Rate Random 100 Msps, 200 Msps | ||
Length 138mm | ||
Record Length 250points | ||
Dimensions 138 x 66 x 241mm | ||
Maximum Time Base 50s/div | ||
Vertical Resolution 8 bit | ||
Battery Type Rechargeable NiMH | ||
Weight 1.5kg | ||
Height 241mm | ||
Battery Life 4 h | ||
Safety Category Level CAT III | ||
Safety Category Voltage 300V | ||
Safety Category CAT III 300 V | ||
Rise Time 17.5ns | ||
Non Compliant
- COO (Country of Origin):
- MY
Keysight U1600 Series
Full-featured handheld oscilloscopes that offer maximum versatility for current and future needs: dual channel with built in DMM and recorder functions.
U1600B models are safety orange
U1602 models have DWM (Dual Waveform Math), U1604 models have DWM+ FFT Function (Fast Fourier Transform)
200 MSa/s sampling rate
125 KB memory depth
Colour LCD display
6000 count Digital Multimeter
Recorder capability
Standard USB 2.0 Full Speed IO Interface
Host interface allows connection to memory devices for waveform storage
Dimensions 24.1 (H) x 13.8 (W) x 6.6 (D) cm
U1602 models have DWM (Dual Waveform Math), U1604 models have DWM+ FFT Function (Fast Fourier Transform)
200 MSa/s sampling rate
125 KB memory depth
Colour LCD display
6000 count Digital Multimeter
Recorder capability
Standard USB 2.0 Full Speed IO Interface
Host interface allows connection to memory devices for waveform storage
Dimensions 24.1 (H) x 13.8 (W) x 6.6 (D) cm
Supplied with
2 probes, Ni-MH battery pack 7.2V 4500mA, DMM test lead, ground alligator clip, hook clip, USB cable, power cord and AC adaptor, Quick Start Guide, Product Reference CD-ROM, Certificate of Calibration, test report
Approvals
CSA; UL
