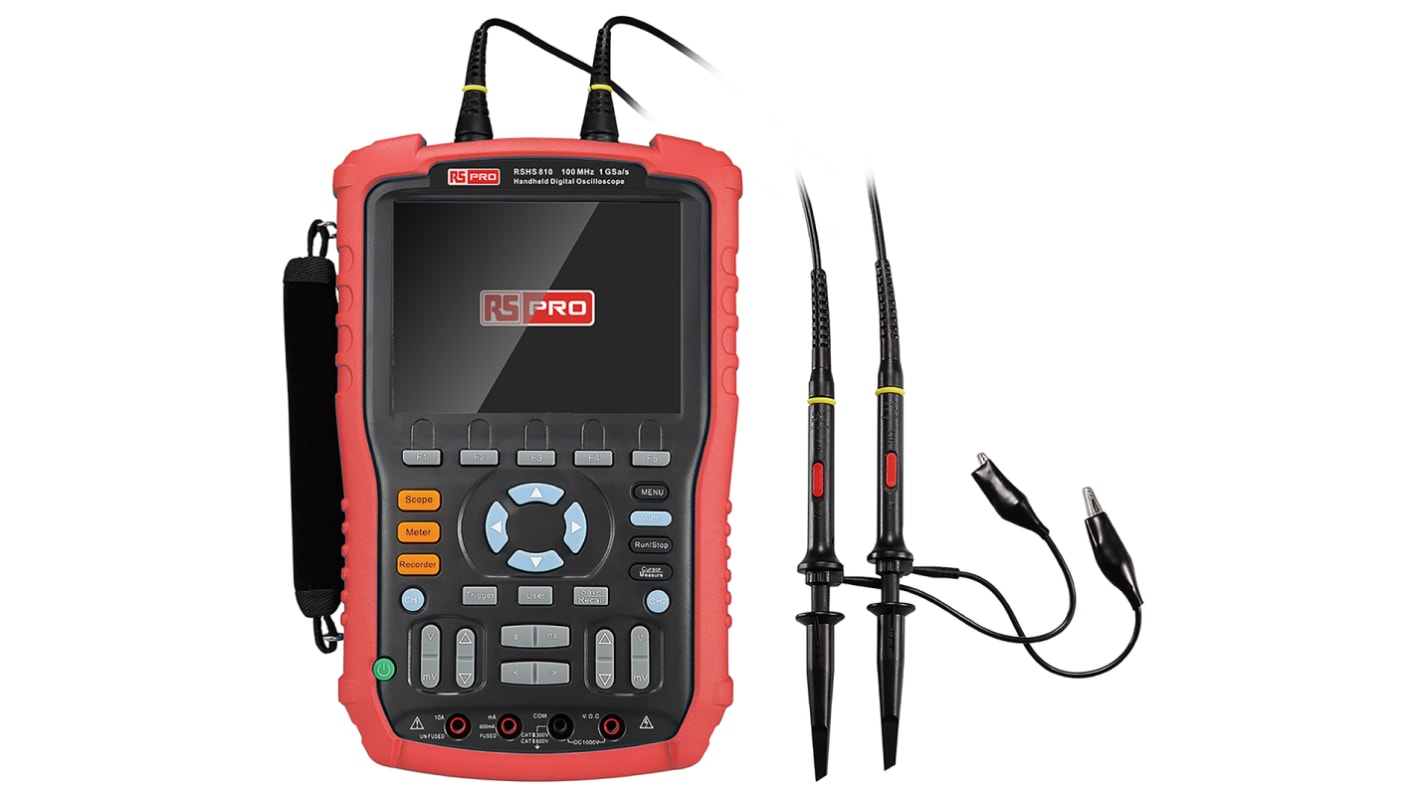

RS PRO RSHS810 Oscilloscope, Handheld, 2 (Isolated) Channels With UKAS Calibration, 100MHz
- RS Stock No. 123-6532
- Brand RS PRO
RS Pro RSHS800 Series Handheld Digital Oscilloscopes
RS Pro RSHS800 Series handheld digital oscilloscopes provide oscilloscope, multimeter and recorder (including trends and waveform) functions all in one package. The choice of model is between 60 MHz ( 123-6454 ), 100 MHz ( 123-6455 ), 150 MHz ( 123-6456 ) & 200 MHz ( 123-6457 ) bandwidths. These instruments offer stable performance combined with high performance. They have the flexibility in use for both workbench and field applications.
Features and Benefits
Dual-input oscilloscope, multimeter and recorder (including TrendPlot and waveform) in one instrument
Input voltage through BNC up to CATⅡ 300V and CAT Ⅲ 150V
Standard probe 10X CATⅡ 400 V
Oscilloscope and multimeter safety grade up to CATⅡ 600 V and CAT Ⅲ 300 V
5.7 inch TFT colour LCD display
1GSa/s real-time sampling rate single channel, up to 50GSa/s equivalent sampling rate, 2 Mpts memory depth
With 6000 dots display resolution multimeter provides measurements of DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity
Supports Scope TrendPlot, Meter TrendPlot, Scope Recorder
Trigger modes Automatic , Normal and Single Trigger types: Edge, Pulse, Video, Slope, Alternative
32 automatic measurements, 3 cursor measure modes
4 digital filter mode - Low pass, High pass, Band pass, Band limit
Math functions +, - , ´, ÷, FFT operations
Multiple language user interface
Standard configuration interface USB Device, USB Host
Supports USB storage and update, supports PC remote control and PictBridge print
Rechargeable battery pack (compact, portable fit for outdoor operation)
Dimensions 259.5 x 163.2 x 53.3 mm
Weight 1.5 kg
Areas of Application
Outdoor measure
Circuit measure
Wind power, PV power and other new energy equipment test
Automotive electron, electric automobile test
Electric power system, strong electricity test
Industry scenes electric debug testing and measuring
Education and science research
Quality control
Supplied with
USB cable, quick start guide, product qualification certificate, multimeter pen (1000 V), 1:1 / 10:1 probe (1 per channel), CD (containing EasyScope PC software), power adapter
RS Pro
| Attribute | Value |
|---|---|
| Number of Channels | 2 (Isolated) |
| Bandwidth | 100MHz |
| Oscilloscope Type | Handheld |
| Series | RSHS800 |
| Calibrated | UKAS |
| Power Source | Battery, Mains |
| Display Type | Colour, TFT LCD |
| Minimum Vertical Sensitivity | 2mV/div |
| Maximum Vertical Sensitivity | 100V/div |
| Minimum Time Base | 2.5ns/div |
| Screen Size | 144.8mm |
| Sample Rate Random | 1 (Real Time) G samples/s, 50 (Equivalent) G samples/s |
| Battery Type | Rechargeable Li-Ion |
| Model Number p | RSHS810 |
| Safety Category Level | CAT II, CAT III |
| Safety Category | CAT II 1000 V, CAT II 300 V, CAT II 400 V, CAT II 600 V, CAT III 150 V, CAT III 300 V, CAT III 600 V |
| Vertical Resolution | 8 bit |
| Rise Time | ≤3.5ns |
| Safety Category Voltage | 150 V, 300 V, 400 V, 600 V, 1000 V |
