Teledyne LeCroy HVD Series HVD3106-6M Oscilloscope Probe, Differential, High Voltage Type, 80MHz, 1:50, 1:500, ProBus

View all Oscilloscope Probes
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Teledyne LeCroy HVD3000A Series HVD3106A-6M Oscilloscope Probe, Differential Type, 80MHz, 1:50, 1:500
RS Stock No.
174-8870

Each

£3,358.25

(exc. VAT)

£4,029.90

(inc. VAT)

RS Stock No.:
878-7601
Mfr. Part No.:
HVD3106-6M
Brand:
Teledyne LeCroy
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne LeCroy

Probe Type

Differential, High Voltage

Attenuation

1:50, 1:500

Bandwidth

80MHz

Maximum Common Mode Input Voltage

1kV

Connector Type

ProBus

Model Number p

HVD3106-6M

Number of Probes

2

Safety Category Level

CAT III

Safety Category Voltage

1000V

Series

HVD

Safety Category

CAT III 1000 V

Rise Time

4.4ns

COO (Country of Origin):
US

Teledyne LeCroy HVD3000A Series Probes


Teledyne LeCroy’s HVD3106A series of high voltage differential probes cover the fullest range of applications, from 120/240 V switch-mode power supplies through 600 V class and 1.5 kV electrical apparatus. The 1% gain accuracy coupled with exceptional common-mode rejection ratio provides an accurate and versatile probe suitable for use with a wide range of oscilloscopes

Features and Benefits


  • Exceptional common-mode rejection ratio (CMRR) across a broad frequency range

  • 1% gain accuracy

  • High offset capability at both high and low attenuation

  • AC and DC coupling

  • ProBus active probe interface with automatic scaling

  • AutoZero with auto disconnect switch

  • Wide oscilloscope compatibility

Applications


  • Applications

  • Automotive

  • Power Applications

  • Motor Drive Development

  • Product Design Applications

  • 174-8868 - 1kV, 120 MHz High Voltage Differential Probe without tip Accessories and with Auto Zero Disconnect

  • 174-8869 1kV, 120 MHz High Voltage Differential Probe with Auto Zero Disconnect

  • 174-8870 - 1kV, 80 MHz High Voltage Differential Probe with 6m cable and Auto Zero Disconnect

Supplied with

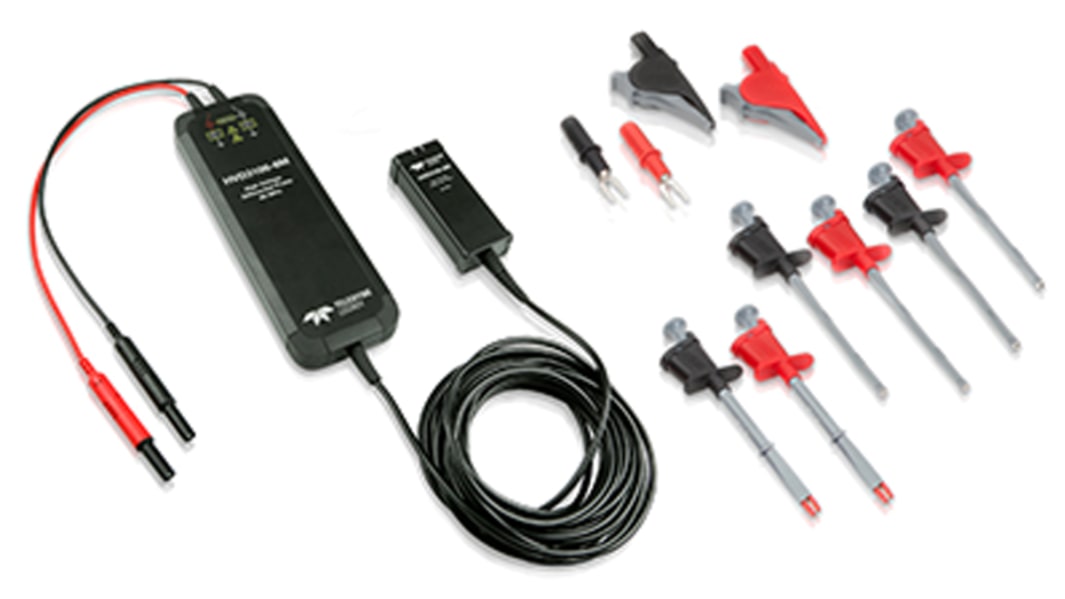

174-8869 and 174-8870 are supplied with = a Pair of Red & Black 1000V Safety Alligator Clips, Plunger Pincer Clips, Plunger Hook Clips, Plunger Alligator Clips and Spade Terminals
