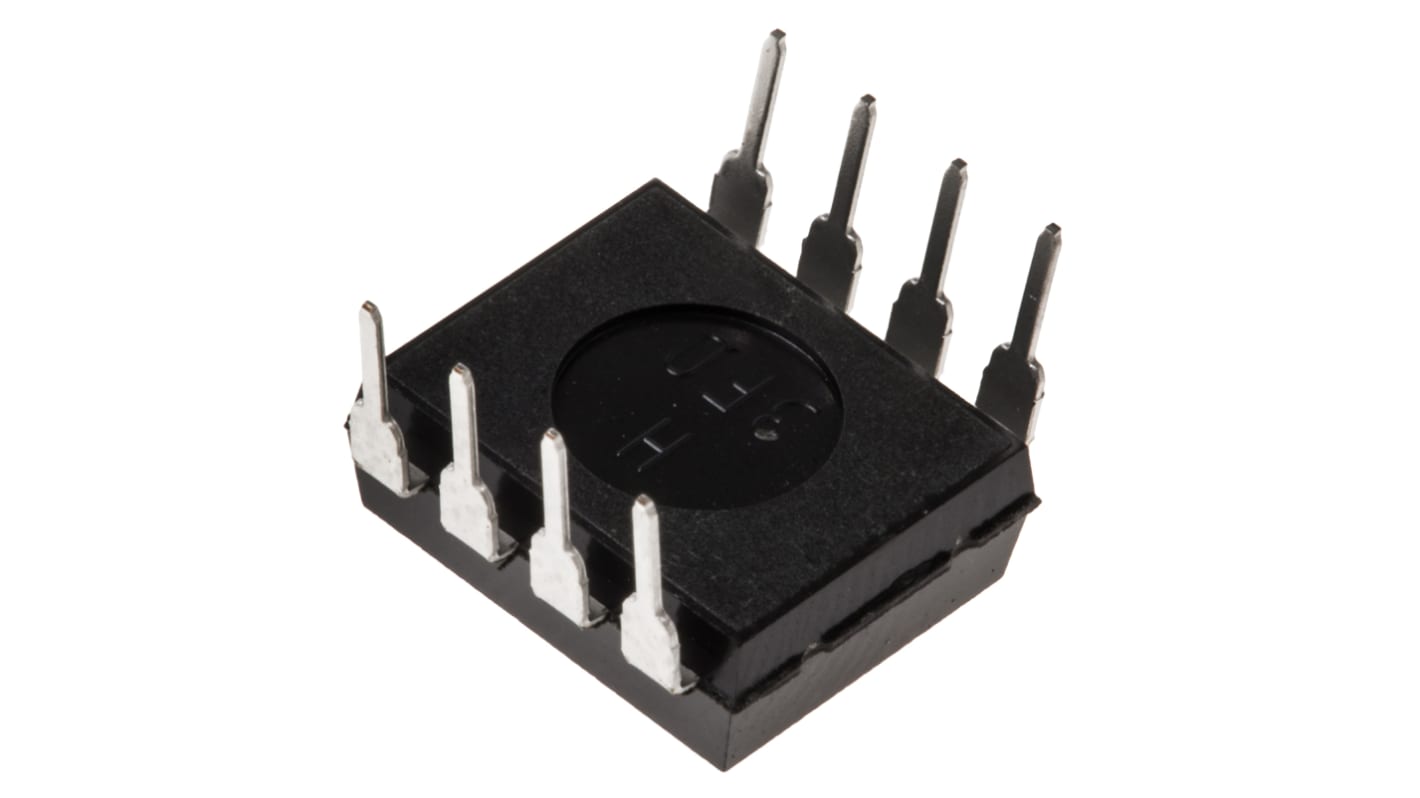

Broadcom, HCNW4503-000E DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP-W
- RS Stock No.:
- 922-5680
- Mfr. Part No.:
- HCNW4503-000E
- Brand:
- Broadcom
252 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 42)
£1.54
(exc. VAT)
£1.85
(inc. VAT)
| Units | Per unit | Per Tube* |
| 42 - 168 | £1.54 | £64.68 |
| 210 - 378 | £1.34 | £56.28 |
| 420 + | £1.206 | £50.652 |
| *price indicative | ||
- RS Stock No.:
- 922-5680
- Mfr. Part No.:
- HCNW4503-000E
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details
Optocoupler, Intelligent Power Module (IPM) Interface, Avago Technologies
Avago Technologies optocouplers for IPM (Intelligent Power Module) interface exhibit short propagation delay, fast IGBT switching, high common mode transient rejection and wide operating temperature range.
Avago Technologies R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications.
Avago Technologies R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications.
Optocouplers, Avago Technologies
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Output Device | Transistor |
| Maximum Forward Voltage | 1.85V |
| Number of Channels | 1 |
| Number of Pins | 8 |
| Package Type | PDIP-W |
| Input Current Type | DC |
| Maximum Input Current | 25 mA |
| Isolation Voltage | 3750 V ac |
| Logic Output | Yes |
| Maximum Current Transfer Ratio | 50% |
| Minimum Current Transfer Ratio | 19 % |
