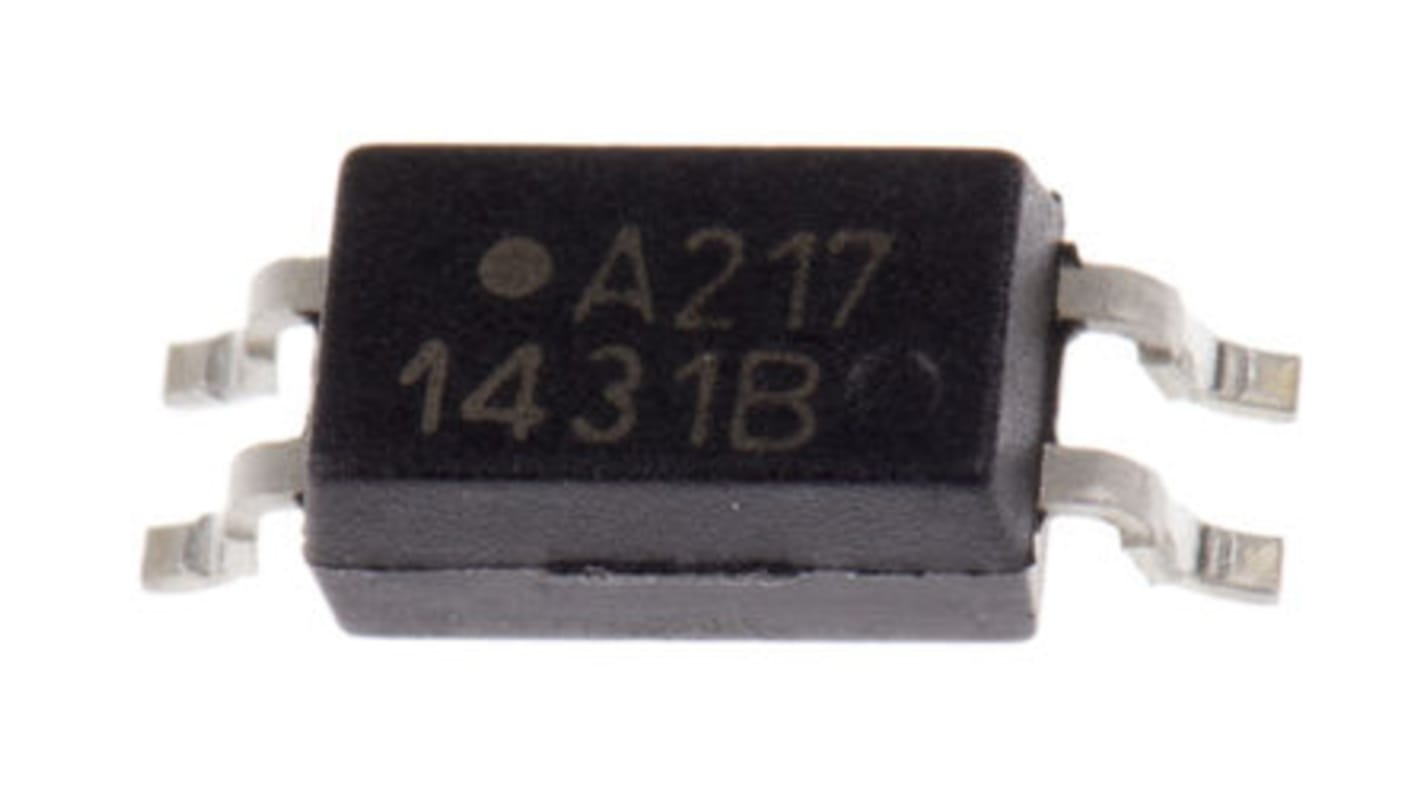

Broadcom, ACPL-217-50DE Optocoupler
- RS Stock No.:
- 910-8235P
- Mfr. Part No.:
- ACPL-217-50DE
- Brand:
- Broadcom
Subtotal 25 units (supplied on a continuous strip)*
£7.175
(exc. VAT)
£8.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14,475 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 + | £0.287 |
*price indicative
- RS Stock No.:
- 910-8235P
- Mfr. Part No.:
- ACPL-217-50DE
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Maximum Forward Voltage | 1.4V | |
| Maximum Input Current | 50 mA | |
| Isolation Voltage | 3000 Vrms | |
| Series | ACPL | |
| Special Features | High Input-Output Isolation Voltage, Safety and Regulatory Approvals | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Maximum Forward Voltage 1.4V | ||
Maximum Input Current 50 mA | ||
Isolation Voltage 3000 Vrms | ||
Series ACPL | ||
Special Features High Input-Output Isolation Voltage, Safety and Regulatory Approvals | ||
- COO (Country of Origin):
- CN
Optocoupler, Transistor Output, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
The Broadcom ACPL-217-500E is a DC-input single channel half-pitch phototransistor optocoupler which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SO package. The input-output isolation voltage is rated at 3000 Vrms. Response time, tr, is 2μs typically, while minimum CTR is 50% at input current of 5 mA.
Current transfer ratio
(CTR: min. 50% at IF = 5mA, VCC = 5V)
High input-output isolation voltage
(VISO = 3,000VRMS)
Non-saturated Response time
(tr: typ. 2μs at VCC = 10V, IC = 2mA, RL= 100Ω)
SO package
CMR 10 kV/μs (typical)
Safety and regulatory approvals
CSA
UL 1577
IEC/EN/DIN EN 60747-5-2
Options available are:
5XXE = Lead Free Option
(CTR: min. 50% at IF = 5mA, VCC = 5V)
High input-output isolation voltage
(VISO = 3,000VRMS)
Non-saturated Response time
(tr: typ. 2μs at VCC = 10V, IC = 2mA, RL= 100Ω)
SO package
CMR 10 kV/μs (typical)
Safety and regulatory approvals
CSA
UL 1577
IEC/EN/DIN EN 60747-5-2
Options available are:
5XXE = Lead Free Option
Optocouplers, Avago Technologies
