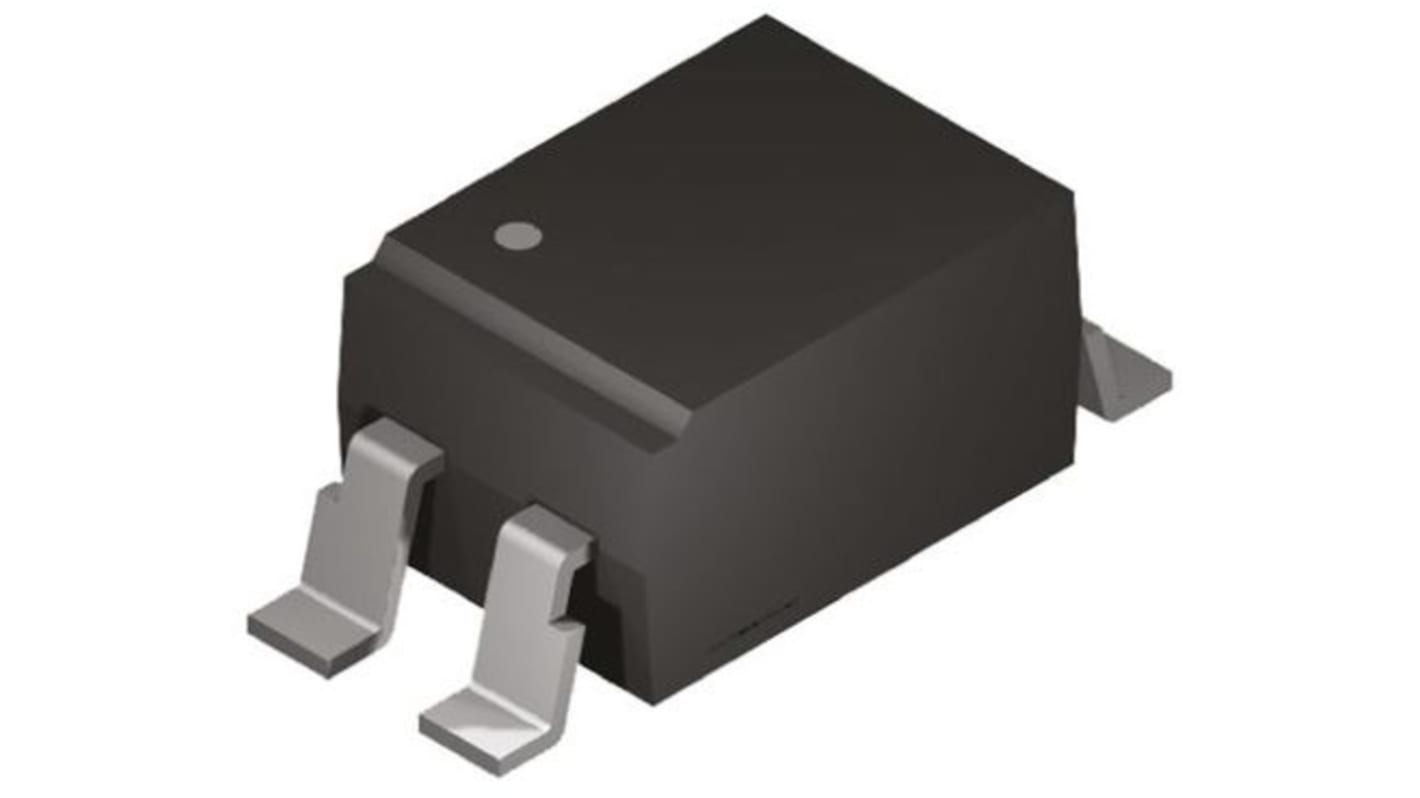

onsemi, FOD8523SD DC Input Photodarlington Output Optocoupler, Surface Mount, 4-Pin PDIP
- RS Stock No.:
- 903-4229
- Mfr. Part No.:
- FOD8523SD
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.07
(exc. VAT)
£4.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,720 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.407 | £4.07 |
| 100 - 240 | £0.351 | £3.51 |
| 250 - 490 | £0.304 | £3.04 |
| 500 + | £0.267 | £2.67 |
*price indicative
- RS Stock No.:
- 903-4229
- Mfr. Part No.:
- FOD8523SD
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Mounting Type | Surface Mount | |
| Output Device | Photodarlington | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | PDIP | |
| Input Current Type | DC | |
| Typical Rise Time | 100µs | |
| Isolation Voltage | 5000 V ac | |
| Logic Output | Yes | |
| Maximum Current Transfer Ratio | 15000% | |
| Typical Fall Time | 20µs | |
| Series | FOD | |
| Special Features | Applicable to Pb-free IR Reflow Soldering, Digital Logic Inputs, Microprocessor Inputs | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Mounting Type Surface Mount | ||
Output Device Photodarlington | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type PDIP | ||
Input Current Type DC | ||
Typical Rise Time 100µs | ||
Isolation Voltage 5000 V ac | ||
Logic Output Yes | ||
Maximum Current Transfer Ratio 15000% | ||
Typical Fall Time 20µs | ||
Series FOD | ||
Special Features Applicable to Pb-free IR Reflow Soldering, Digital Logic Inputs, Microprocessor Inputs | ||
Optocoupler, Darlington Transistor Output, Fairchild Semiconductor
Optocouplers, Fairchild Semiconductor
