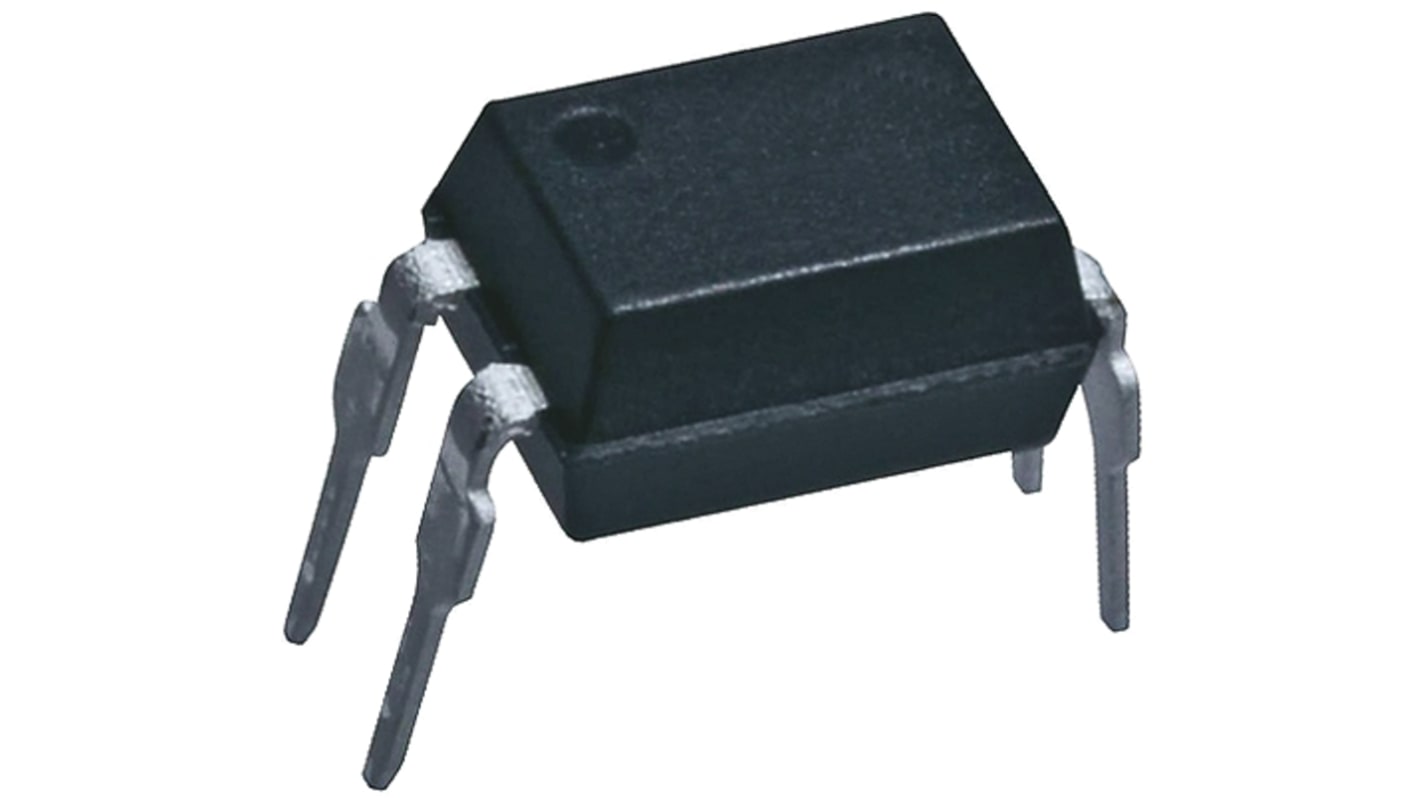

Broadcom, HCPL-817-00BE DC Input Phototransistor Output Optocoupler, Through Hole, 4-Pin DIP
- RS Stock No.:
- 840-0032
- Mfr. Part No.:
- HCPL-817-00BE
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.15
(exc. VAT)
£6.175
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.206 | £5.15 |
| 50 - 75 | £0.162 | £4.05 |
| 100 - 150 | £0.118 | £2.95 |
| 175 - 225 | £0.111 | £2.78 |
| 250 + | £0.104 | £2.60 |
*price indicative
- RS Stock No.:
- 840-0032
- Mfr. Part No.:
- HCPL-817-00BE
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Through Hole | |
| Output Device | Phototransistor | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | DIP | |
| Input Current Type | DC | |
| Typical Rise Time | 4µs | |
| Maximum Input Current | 30 mA | |
| Isolation Voltage | 5000 Vrms | |
| Maximum Current Transfer Ratio | 260% | |
| Typical Fall Time | 3µs | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Through Hole | ||
Output Device Phototransistor | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type DIP | ||
Input Current Type DC | ||
Typical Rise Time 4µs | ||
Maximum Input Current 30 mA | ||
Isolation Voltage 5000 Vrms | ||
Maximum Current Transfer Ratio 260% | ||
Typical Fall Time 3µs | ||
