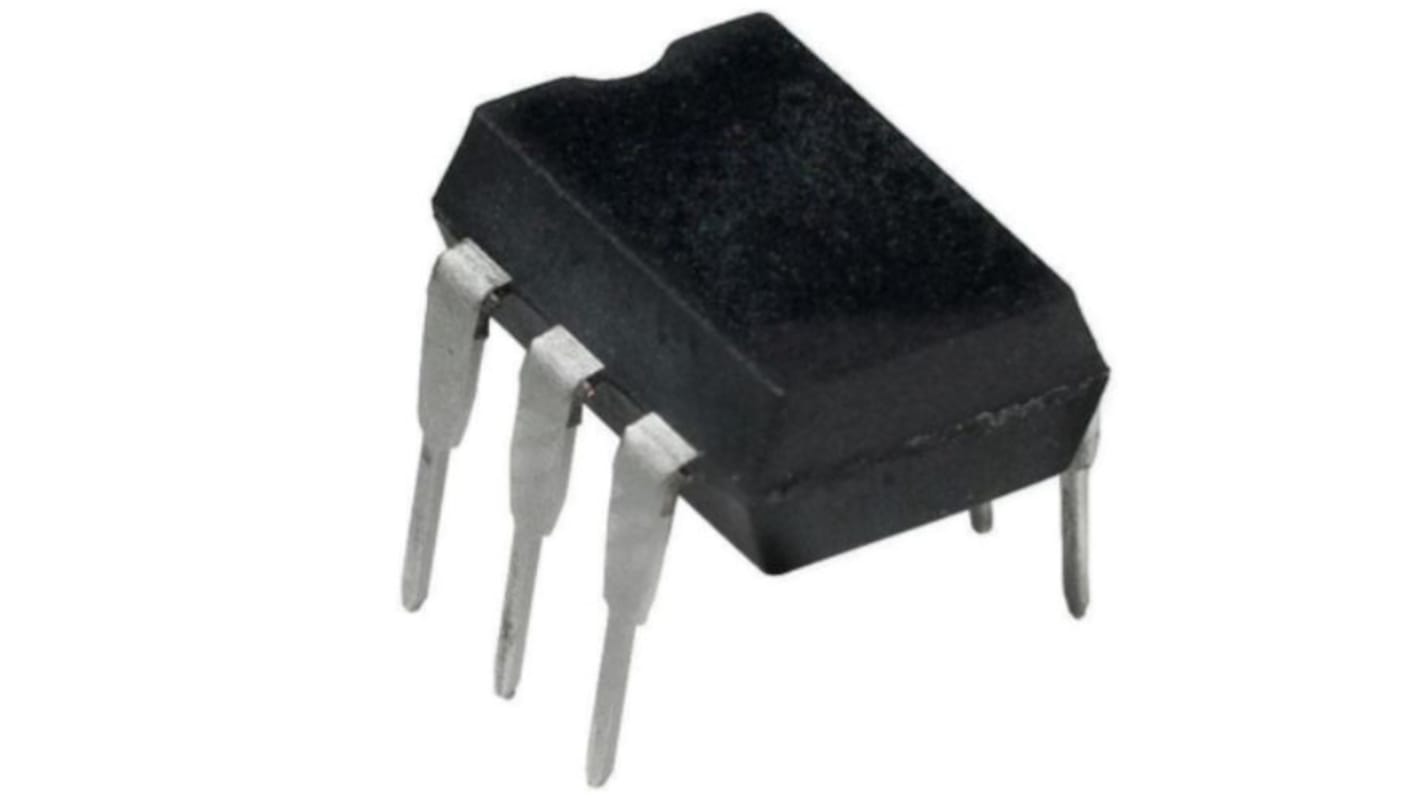

Vishay, 4N27 DC Input Phototransistor Output Optocoupler, Through Hole, 6-Pin PDIP
- RS Stock No.:
- 708-5288
- Mfr. Part No.:
- 4N27
- Brand:
- Vishay
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 708-5288
- Mfr. Part No.:
- 4N27
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
Optocoupler, Transistor Output, 4Nxx Series, Vishay Semiconductor
Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor.
Features
• Isolation test voltage 5000 VRMS
• Interfaces with common logic families
• Input-output coupling capacitance < 0.5 pF
• Industry standard dual-in-line 6 pin package
• Interfaces with common logic families
• Input-output coupling capacitance < 0.5 pF
• Industry standard dual-in-line 6 pin package
Applications
• AC mains detection
• Reed relay driving
• Switch mode power supply feedback
• Telephone ring detection
• Logic ground isolation
• Logic coupling with high frequency noise rejection
• Reed relay driving
• Switch mode power supply feedback
• Telephone ring detection
• Logic ground isolation
• Logic coupling with high frequency noise rejection
Optocouplers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Output Device | Phototransistor |
| Maximum Forward Voltage | 1.5V |
| Number of Channels | 1 |
| Number of Pins | 6 |
| Package Type | PDIP |
| Input Current Type | DC |
| Typical Rise Time | 2µs |
| Maximum Input Current | 60 mA |
| Isolation Voltage | 5000 V ac |
| Maximum Current Transfer Ratio | 30% |
| Minimum Current Transfer Ratio | 10 % |
| Typical Fall Time | 2µs |
| Series | 4N27 |
