MPN

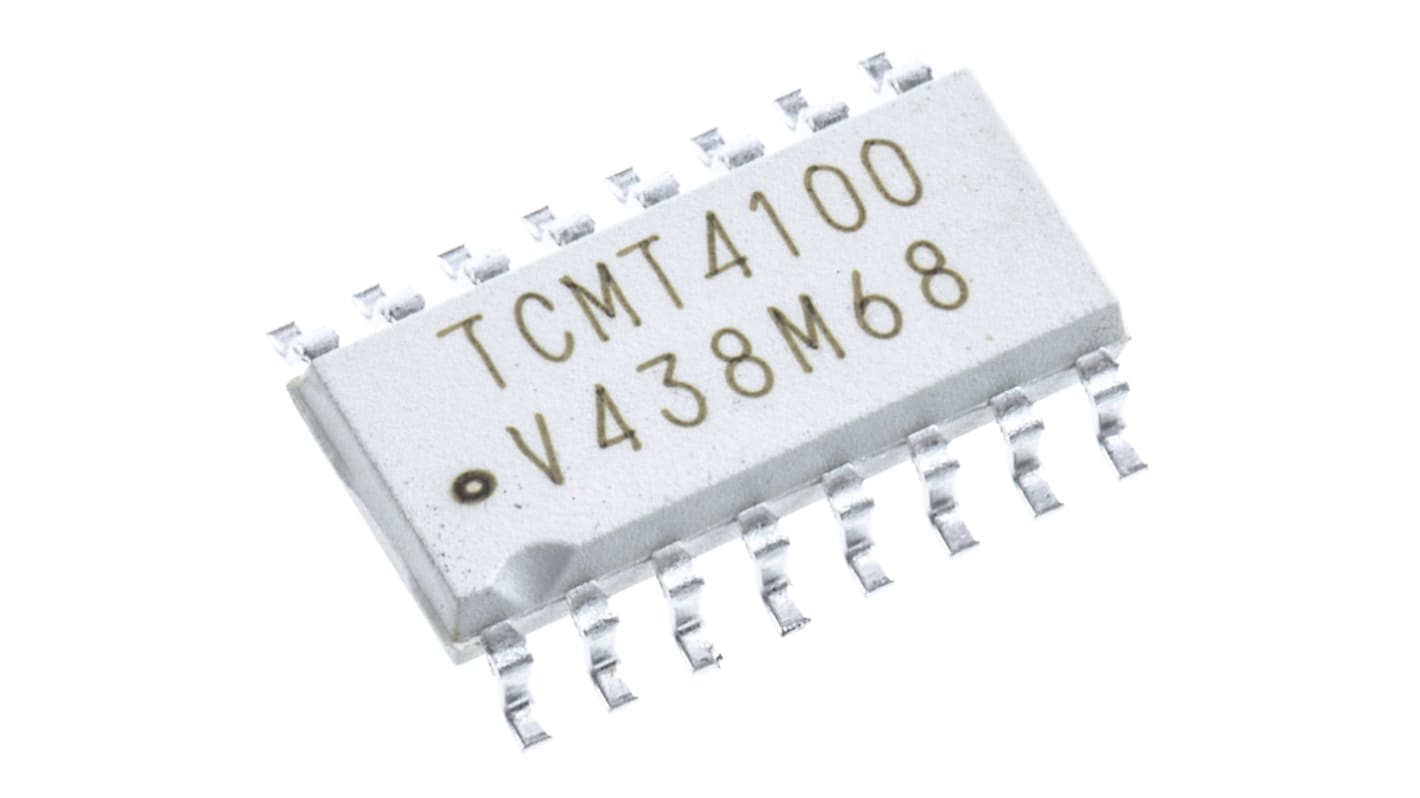

Vishay TCMT4100 DC Input 4-Channel Optocoupler, Surface, 16-Pin Mini-Flat

RS Stock No.:: 699-8357
Distrelec Article No.:: 304-44-288
Mfr. Part No.:: TCMT4100
Brand:: Vishay

Vishay TCMT4100 DC Input 4-Channel Optocoupler, Surface, 16-Pin Mini-Flat

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 2 units)*

£2.82

(exc. VAT)

£3.38

(inc. VAT)

FREE delivery for orders over £60.00

Last RS stock

Plus 58 unit(s) shipping from 09 June 2026
Plus 98 unit(s) shipping from 09 June 2026
Final 5,188 unit(s) shipping from 16 June 2026

Units	Per unit	Per Pack*
2 - 18	£1.41	£2.82
20 - 48	£0.99	£1.98
50 - 98	£0.945	£1.89
100 - 198	£0.905	£1.81
200 +	£0.845	£1.69

*price indicative

RS Stock No.:: 699-8357
Distrelec Article No.:: 304-44-288
Mfr. Part No.:: TCMT4100
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Mount Type	Surface
	Product Type	Optocoupler
	Maximum Forward Voltage	1.6V
	Number of Channels	4
	Number of Pins	16
	Package Type	Mini-Flat
	Input Current Type	DC
	Typical Rise Time	3μs
	Maximum Input Current	60mA
	Isolation Voltage	3.75kVrms
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Maximum Current Transfer Ratio	600%
	Minimum Current Transfer Ratio	50%
	Standards/Approvals	cUL CSA 22.2 bulletin 5A, DIN EN 60747-5-5 (VDE 0884-5), FIMKO:FI EN 60950-1:2006, UL1577, BSI:BS EN60065:2002 BS EN60950-1:2006
	Typical Fall Time	4.7μs
	Series	TCMT
	Automotive Standard	No

	Select all
	Brand Vishay
	Mount Type Surface
	Product Type Optocoupler
	Maximum Forward Voltage 1.6V
	Number of Channels 4
	Number of Pins 16
	Package Type Mini-Flat
	Input Current Type DC
	Typical Rise Time 3μs
	Maximum Input Current 60mA
	Isolation Voltage 3.75kVrms
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Maximum Current Transfer Ratio 600%
	Minimum Current Transfer Ratio 50%
	Standards/Approvals cUL CSA 22.2 bulletin 5A, DIN EN 60747-5-5 (VDE 0884-5), FIMKO:FI EN 60950-1:2006, UL1577, BSI:BS EN60065:2002 BS EN60950-1:2006
	Typical Fall Time 4.7μs
	Series TCMT
	Automotive Standard No

Datasheet

Optocoupler, Transistor Output, TCMT Series, Vishay Semiconductor

The TCMT410. series consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 16 pin (quad channel) package.

Features:

• Low profile package (half pitch)

• AC isolation test voltage 3750 VRMS

• Low coupling capacitance of typical 0.3 pF

• Current transfer ratio (CTR) selected into groups

• Low temperature coefficient of CTR

• Wide ambient temperature range

Applications:

• Programmable logic controllers

• Modems

• Answering machines

• General applications

Optocouplers, Vishay Semiconductor

Approvals

UL, CSA, VDE
