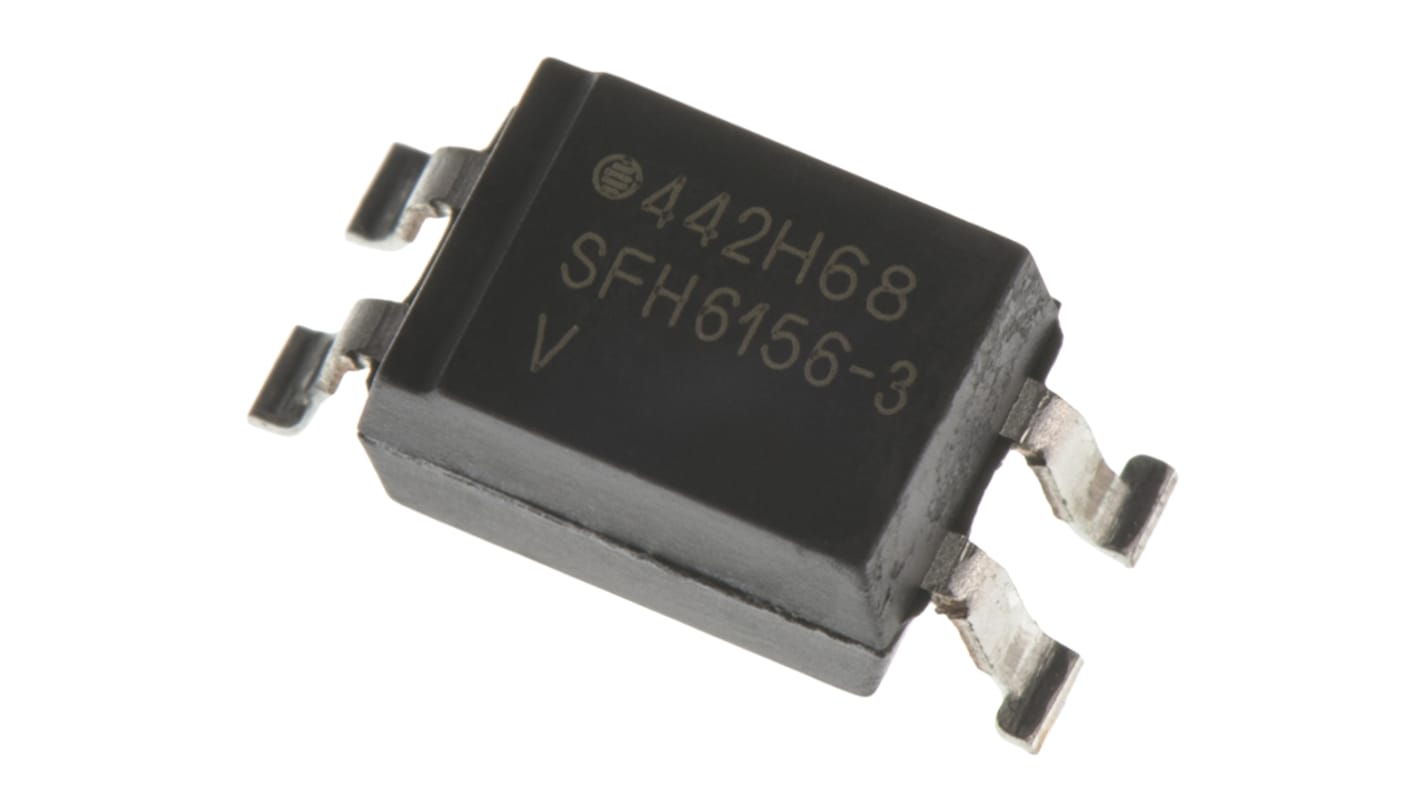

Vishay SFH6156-3T DC Input Optocoupler, Surface, 4-Pin Surface Mount
- RS Stock No.:
- 699-8225
- Distrelec Article No.:
- 304-36-146
- Mfr. Part No.:
- SFH6156-3T
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£3.27
(exc. VAT)
£3.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 710 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
- Plus 130 unit(s) shipping from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.327 | £3.27 |
| 100 - 240 | £0.321 | £3.21 |
| 250 - 490 | £0.246 | £2.46 |
| 500 - 990 | £0.212 | £2.12 |
| 1000 + | £0.193 | £1.93 |
*price indicative
- RS Stock No.:
- 699-8225
- Distrelec Article No.:
- 304-36-146
- Mfr. Part No.:
- SFH6156-3T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Optocoupler | |
| Mount Type | Surface | |
| Maximum Forward Voltage | 1.65V | |
| Number of Channels | 1 | |
| Packaging | Tape & Reel | |
| Number of Pins | 4 | |
| Package Type | Surface Mount | |
| Input Current Type | DC | |
| Typical Rise Time | 3μs | |
| Maximum Input Current | 60mA | |
| Isolation Voltage | 5300V ac | |
| Minimum Operating Temperature | -55°C | |
| Maximum Current Transfer Ratio | 2% | |
| Maximum Operating Temperature | 100°C | |
| Typical Fall Time | 14μs | |
| Standards/Approvals | EN, IEC, UL | |
| Minimum Current Transfer Ratio | 100% | |
| Series | SFH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Optocoupler | ||
Mount Type Surface | ||
Maximum Forward Voltage 1.65V | ||
Number of Channels 1 | ||
Packaging Tape & Reel | ||
Number of Pins 4 | ||
Package Type Surface Mount | ||
Input Current Type DC | ||
Typical Rise Time 3μs | ||
Maximum Input Current 60mA | ||
Isolation Voltage 5300V ac | ||
Minimum Operating Temperature -55°C | ||
Maximum Current Transfer Ratio 2% | ||
Maximum Operating Temperature 100°C | ||
Typical Fall Time 14μs | ||
Standards/Approvals EN, IEC, UL | ||
Minimum Current Transfer Ratio 100% | ||
Series SFH | ||
Automotive Standard No | ||
Optocoupler, Transistor Output, SFH Series, Vishay Semiconductor
VO617A and VO618A series provides up to 5300 Vrms of voltage Isolation.
VO615A, VOL617A and VOL628A series provides up to 5000 Vrms of voltage Isolation.
VOM617A and VOM618A series provides up to 3750 Vrms of voltage Isolation.
VO617A, VO618A, VOL617A, VOL628A, VOM617A, and VOM618A Applications include Isolation in AC adapters, switch mode power supplies, programmable logic controllers, Industrial controls, telecom systems, smart meters, office equipment, power on Internet and solar.
Optocouplers VO615A, VO617A, VO618A, VOL617A, VOL628A, VOM617A, and VOM618A have an operating temperature up to 110 degrees.
Optocouplers, Vishay Semiconductor
Approvals
UL, VDE
