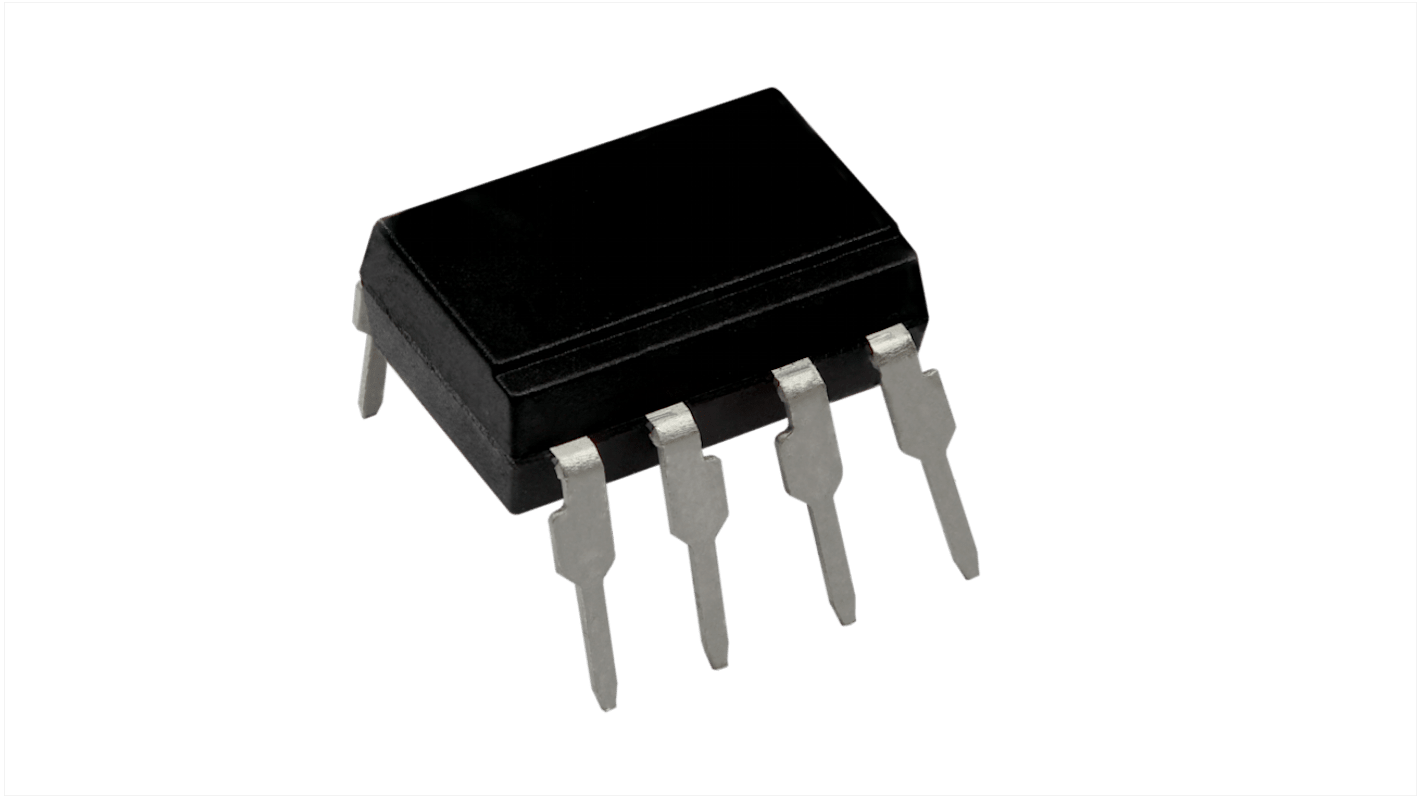

Vishay VOH263A-X017T DC Input 2-Channel Optocoupler, Surface, 8-Pin Surface Mount
- RS Stock No.:
- 274-2777
- Mfr. Part No.:
- VOH263A-X017T
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 274-2777
- Mfr. Part No.:
- VOH263A-X017T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.8V | |
| Packaging | DIP8 | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | Surface Mount | |
| Input Current Type | DC | |
| Typical Rise Time | 2.3ns | |
| Maximum Input Current | 230mA | |
| Isolation Voltage | 5000Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Open Drain | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | cUL, UL1577, DIN EN 60747-5-5 (VDE 0884-5) | |
| Typical Fall Time | 11ns | |
| Series | VOH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.8V | ||
Packaging DIP8 | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type Surface Mount | ||
Input Current Type DC | ||
Typical Rise Time 2.3ns | ||
Maximum Input Current 230mA | ||
Isolation Voltage 5000Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Open Drain | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals cUL, UL1577, DIN EN 60747-5-5 (VDE 0884-5) | ||
Typical Fall Time 11ns | ||
Series VOH | ||
Automotive Standard No | ||
The Vishay High Speed Optocoupler is a dual channel 10 MBd optocoupler. This high speed optocoupler utilizing high efficient input LEDs coupled to high speed integrated photo detector logic gates. The detectors features an open drain outputs. The internal shield provides a guaranteed common mode transient immunity of 15 kV per microsecond.
Pb free
RoHS compliant
Low power consumption
LVTTL and LVCMOS compatibility
3.3 V and 5 V dual supply voltage
