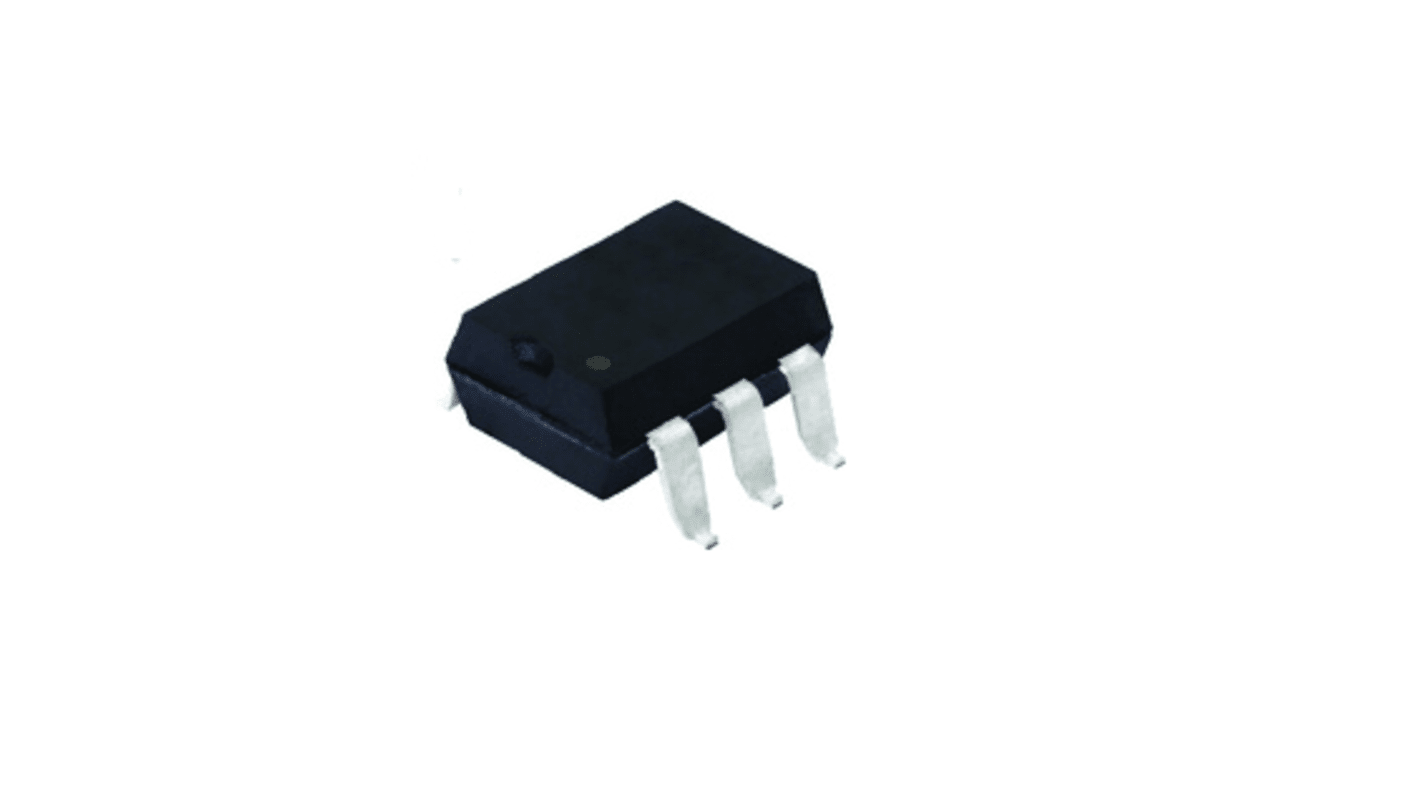

Vishay, VO4258D-X007T Phototriac Output Optocoupler, Through Hole, 6-Pin SMD
- RS Stock No.:
- 257-6947
- Mfr. Part No.:
- VO4258D-X007T
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£2.34
(exc. VAT)
£2.81
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 658 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 49 | £2.34 |
| 50 - 99 | £1.42 |
| 100 - 249 | £1.39 |
| 250 - 499 | £1.36 |
| 500 + | £1.33 |
*price indicative
- RS Stock No.:
- 257-6947
- Mfr. Part No.:
- VO4258D-X007T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mounting Type | Through Hole | |
| Output Device | Phototriac | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 1 | |
| Number of Pins | 6 | |
| Package Type | SMD | |
| Series | VO | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mounting Type Through Hole | ||
Output Device Phototriac | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 6 | ||
Package Type SMD | ||
Series VO | ||
The Vishay Optocupler phototriac consists of a GaAs IRLED optically coupled to a photosensitive non-zero crossing TRIAC packaged in a DIP-6 package. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR predriver resulting in an LED trigger current of 1.6 mA for bin D, 2 mA for bin H, and 3 mA for bin M. The new non zero phototriac family use a proprietary dV/dt clamp resulting in a static dV/dt of greater than 5 kV/μs.
High static dV/dt 5 kV/μs
High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA
800 V blocking voltage
300 mA on-state current
High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA
800 V blocking voltage
300 mA on-state current
