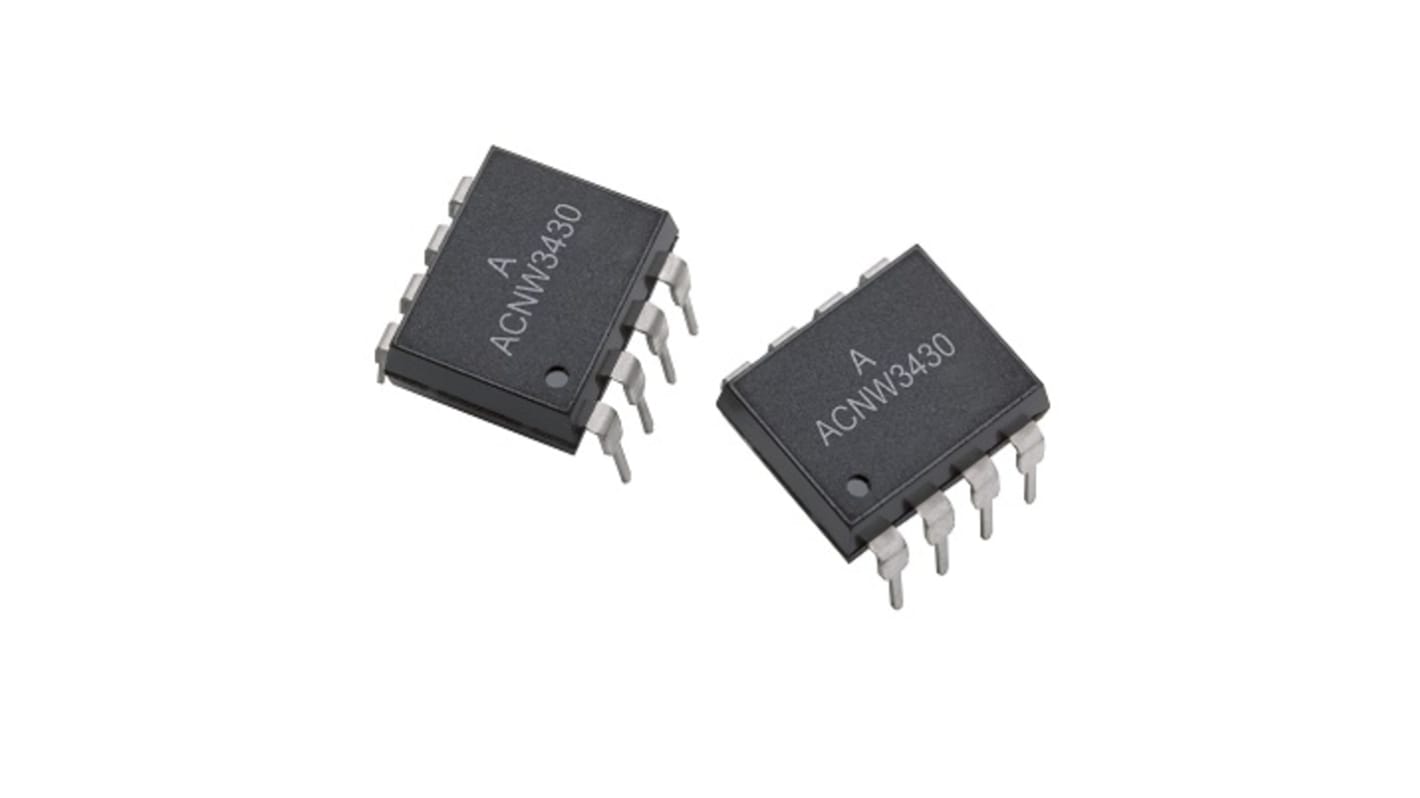

Broadcom ACNW3430-000E DC Input Optocoupler, Through Hole, 8-Pin DIP-8 400 mil

View all Optocouplers
Bulk discount available

Subtotal (1 unit)*

£4.14

(exc. VAT)

£4.97

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£4.14
10 - 41£3.00
42 - 83£2.70
84 +£2.60

*price indicative

Packaging Options:
RS Stock No.:
253-9436
Mfr. Part No.:
ACNW3430-000E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Product Type

Optocoupler

Mount Type

Through Hole

Maximum Forward Voltage

1.85V

Packaging

Tape & Reel

Number of Channels

1

Number of Pins

8

Package Type

DIP-8 400 mil

Input Current Type

DC

Typical Rise Time

20μs

Maximum Input Current

400mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Standards/Approvals

RoHS

Typical Fall Time

10μs

Series

ACNW3430

Automotive Standard

No

COO (Country of Origin):
TH
The Broadcom gate drive opto-coupler contains an LED, which is optically coupled to an integrated circuit with a power output stage. This opto-coupler is ideally suited for driving IGBTs and power MOSFETs used in motor control inverter applications. The 100 kV/μs noise immunity prevent erroneous drive in noisy industrial environment. The voltage and high peak output current supplied by this opto-coupler make it ideally suited for driving IGBT directly.

5A max peak output current

Rail-to-rail output voltage

UVLO with VE reference for negative power supply

180ns max propagation delay

90ns max propagation delay difference

100-kV/μs minimum common mode rejection (CMR) at VCM is equal to 1500 V

ICC 5.0 mA max supply current

Wide operating VCC range is 15 to 30 V

Industrial temperature range: -40 °C to +105 °C
