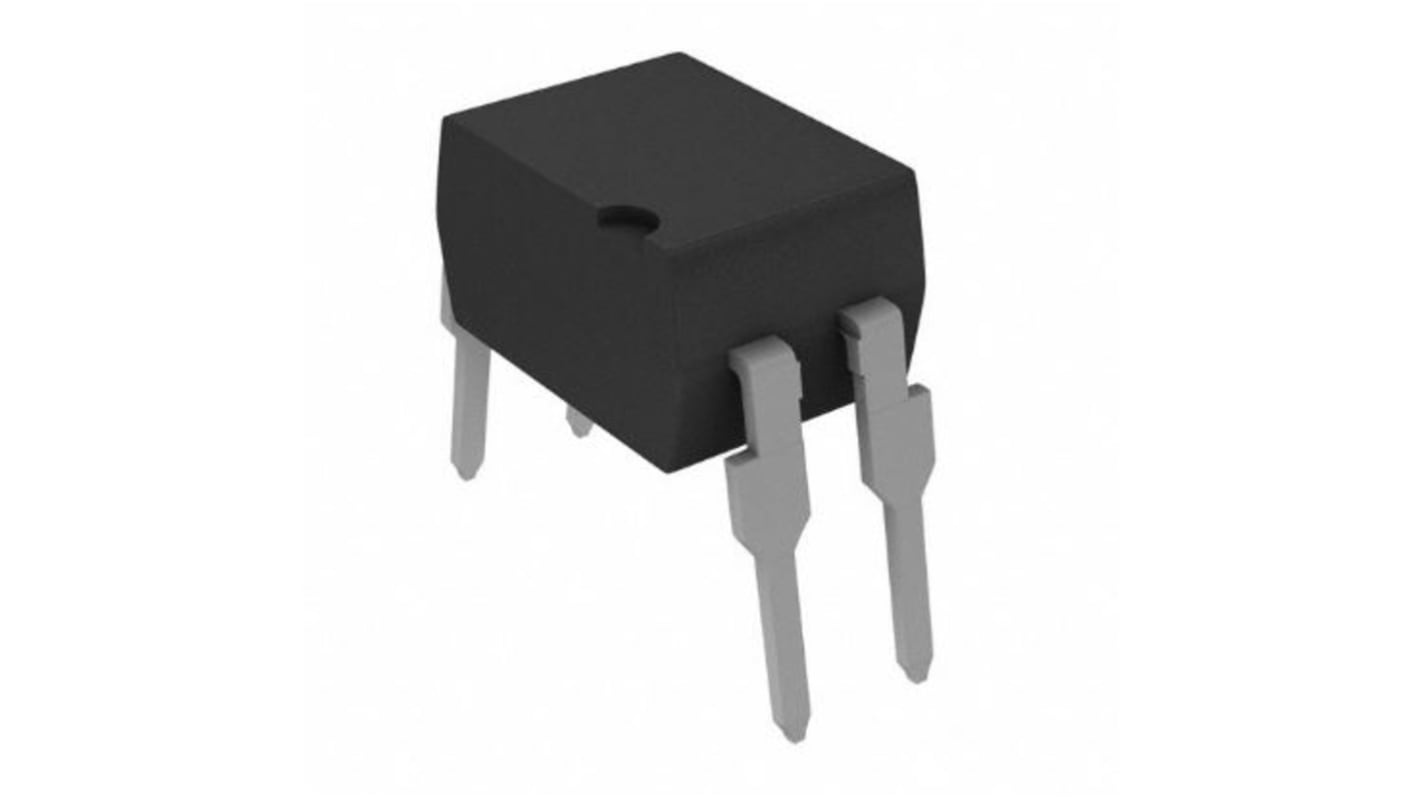

Vishay Optocoupler, Through Hole, 4-Pin DIP
- RS Stock No.:
- 244-4732
- Mfr. Part No.:
- SFH620AA
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tube of 100 units)*
£40.70
(exc. VAT)
£48.80
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2,200 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 400 | £0.407 | £40.70 |
| 500 - 900 | £0.386 | £38.60 |
| 1000 - 2400 | £0.366 | £36.60 |
| 2500 - 4900 | £0.346 | £34.60 |
| 5000 + | £0.325 | £32.50 |
*price indicative
- RS Stock No.:
- 244-4732
- Mfr. Part No.:
- SFH620AA
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Optocoupler | |
| Mount Type | Through Hole | |
| Maximum Forward Voltage | 1.65V | |
| Number of Channels | 1 | |
| Packaging | DIP | |
| Number of Pins | 4 | |
| Package Type | DIP | |
| Typical Rise Time | 2μs | |
| Isolation Voltage | 5300Vrms | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Typical Fall Time | 2μs | |
| Series | SFH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Optocoupler | ||
Mount Type Through Hole | ||
Maximum Forward Voltage 1.65V | ||
Number of Channels 1 | ||
Packaging DIP | ||
Number of Pins 4 | ||
Package Type DIP | ||
Typical Rise Time 2μs | ||
Isolation Voltage 5300Vrms | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Typical Fall Time 2μs | ||
Series SFH | ||
Automotive Standard No | ||
The Vishay optocoupler have a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package. The coupling devices are designed for signal transmission between two electrically separated circuits.
Low CTR degradation
Good CTR linearity depending on forward current
Fast switching times
Temperature stable
Low coupling capacitance
High common mode interference immunity
