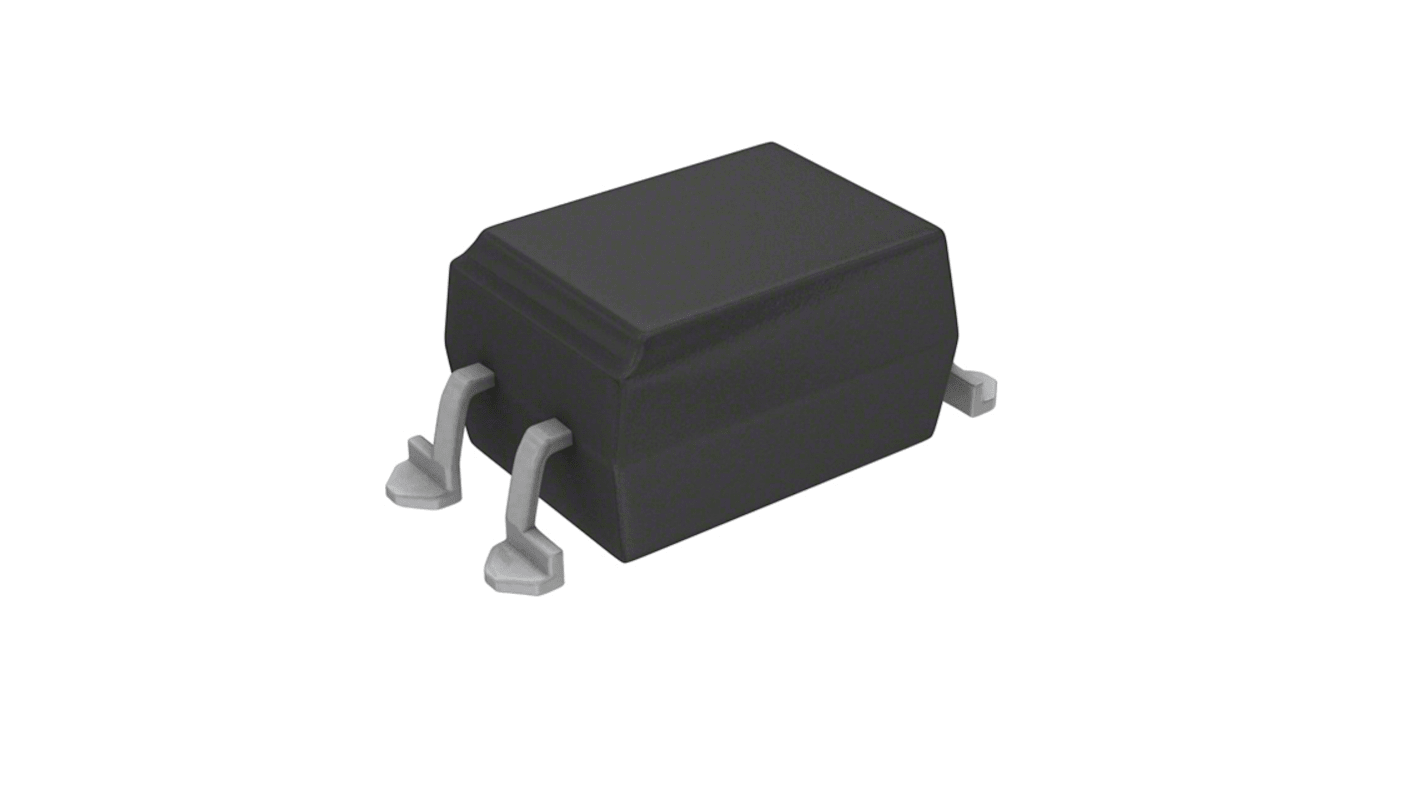

Renesas Electronics PS2562L-1-A DC Input Photocoupler, Surface, 4-Pin Gull Wing
- RS Stock No.:
- 234-7082
- Mfr. Part No.:
- PS2562L-1-A
- Brand:
- Renesas Electronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£7.67
(exc. VAT)
£9.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 390 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | £0.767 | £7.67 |
| 20 - 40 | £0.752 | £7.52 |
| 50 - 70 | £0.737 | £7.37 |
| 80 - 90 | £0.721 | £7.21 |
| 100 + | £0.57 | £5.70 |
*price indicative
- RS Stock No.:
- 234-7082
- Mfr. Part No.:
- PS2562L-1-A
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Photocoupler | |
| Mount Type | Surface | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | Gull Wing | |
| Input Current Type | DC | |
| Maximum Input Current | 80mA | |
| Isolation Voltage | 5000Vrms | |
| Minimum Operating Temperature | -55°C | |
| Maximum Current Transfer Ratio | 2000% | |
| Maximum Operating Temperature | 100°C | |
| Minimum Current Transfer Ratio | 200% | |
| Standards/Approvals | BS EN 62368-1, CAN/CSA-C22.2 No. 62368-1, DIN EN 60747-5-5, EN 62368-1, IEC 62368-1, UL1577 | |
| Typical Fall Time | 100μs | |
| Series | PS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Photocoupler | ||
Mount Type Surface | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type Gull Wing | ||
Input Current Type DC | ||
Maximum Input Current 80mA | ||
Isolation Voltage 5000Vrms | ||
Minimum Operating Temperature -55°C | ||
Maximum Current Transfer Ratio 2000% | ||
Maximum Operating Temperature 100°C | ||
Minimum Current Transfer Ratio 200% | ||
Standards/Approvals BS EN 62368-1, CAN/CSA-C22.2 No. 62368-1, DIN EN 60747-5-5, EN 62368-1, IEC 62368-1, UL1577 | ||
Typical Fall Time 100μs | ||
Series PS | ||
Automotive Standard No | ||
The Renesas Electronics optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor. It has high isolation voltage.
High collector to emitter voltage
High current transfer ratio
High-speed switching
