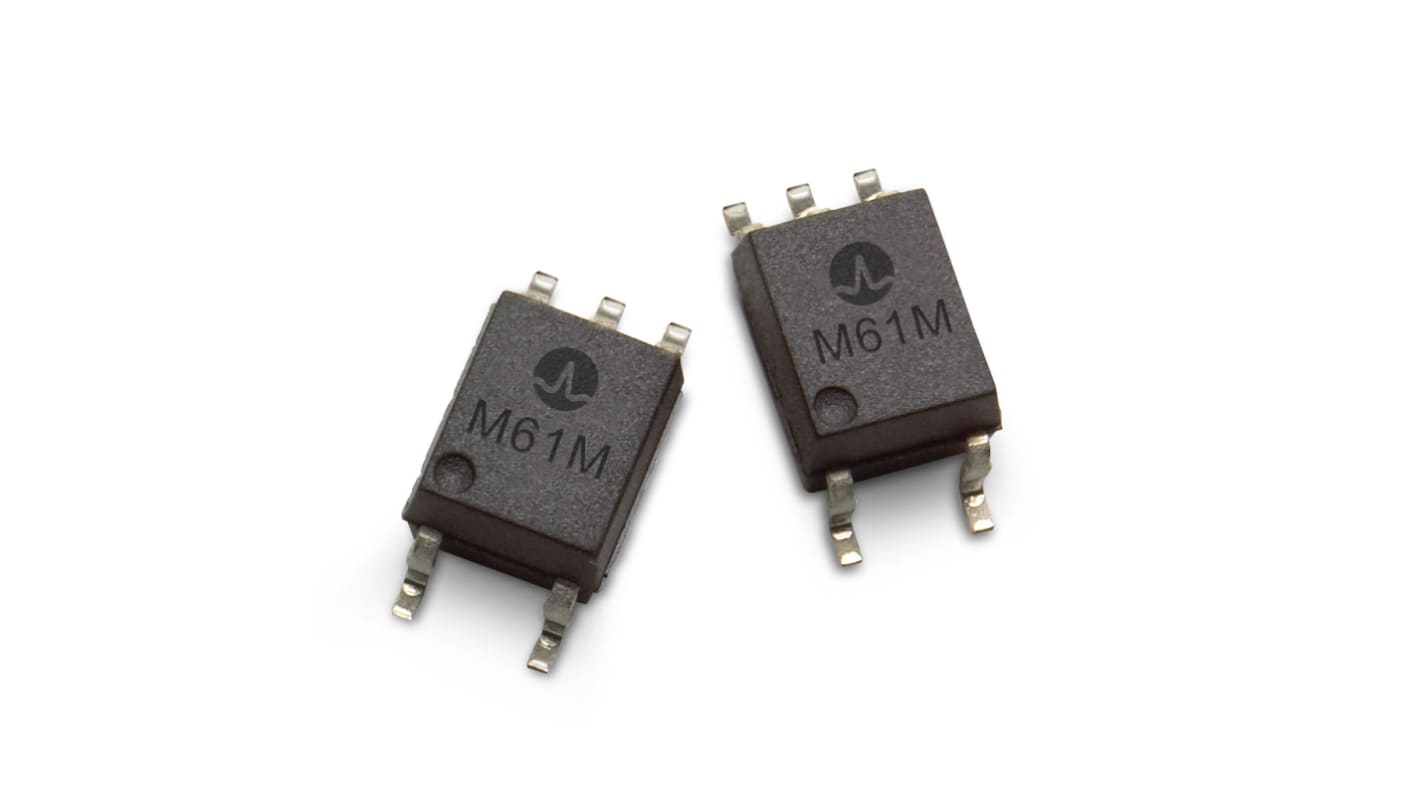

Broadcom DC Input Optocoupler, Surface Mount, 5-Pin SO
- RS Stock No.:
- 230-5315P
- Mfr. Part No.:
- ACPL-M61M-560E
- Brand:
- Broadcom
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£97.00
(exc. VAT)
£116.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1,054 unit(s), ready to ship
Units | Per unit |
|---|---|
| 50 - 98 | £1.94 |
| 100 - 498 | £1.60 |
| 500 - 998 | £1.355 |
| 1000 + | £1.325 |
*price indicative
- RS Stock No.:
- 230-5315P
- Mfr. Part No.:
- ACPL-M61M-560E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface Mount | |
| Maximum Forward Voltage | 1.33V | |
| Number of Channels | 1 | |
| Number of Pins | 5 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Isolation Voltage | 567V Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS, UL 1577, IEC/EN/DIN EN 60747-5-5, CSA | |
| Series | ACPL | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface Mount | ||
Maximum Forward Voltage 1.33V | ||
Number of Channels 1 | ||
Number of Pins 5 | ||
Package Type SO | ||
Input Current Type DC | ||
Isolation Voltage 567V Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS, UL 1577, IEC/EN/DIN EN 60747-5-5, CSA | ||
Series ACPL | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Broadcom ACPL series is an optocoupler that combines a light emitting diode and an integrated high gain photo detector to address a low power supply need. It supports 2.5V/3.3V supply voltage with guaranteed AC and DC operational parameters.
High data rate
Low power
Low LED input driving current
