Wurth Elektronik, 140816144300 DC Input Phototransistor Output Quad Optocoupler, Surface Mount, 4-Pin
- RS Stock No.:
- 210-8064
- Mfr. Part No.:
- 140816144300
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1500 units)*
£268.50
(exc. VAT)
£322.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.179 | £268.50 |
*price indicative
- RS Stock No.:
- 210-8064
- Mfr. Part No.:
- 140816144300
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Mounting Type | Surface Mount | |
| Output Device | Phototransistor | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 4 | |
| Number of Pins | 4 | |
| Input Current Type | DC | |
| Series | WL-OCPT | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Mounting Type Surface Mount | ||
Output Device Phototransistor | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 4 | ||
Number of Pins 4 | ||
Input Current Type DC | ||
Series WL-OCPT | ||

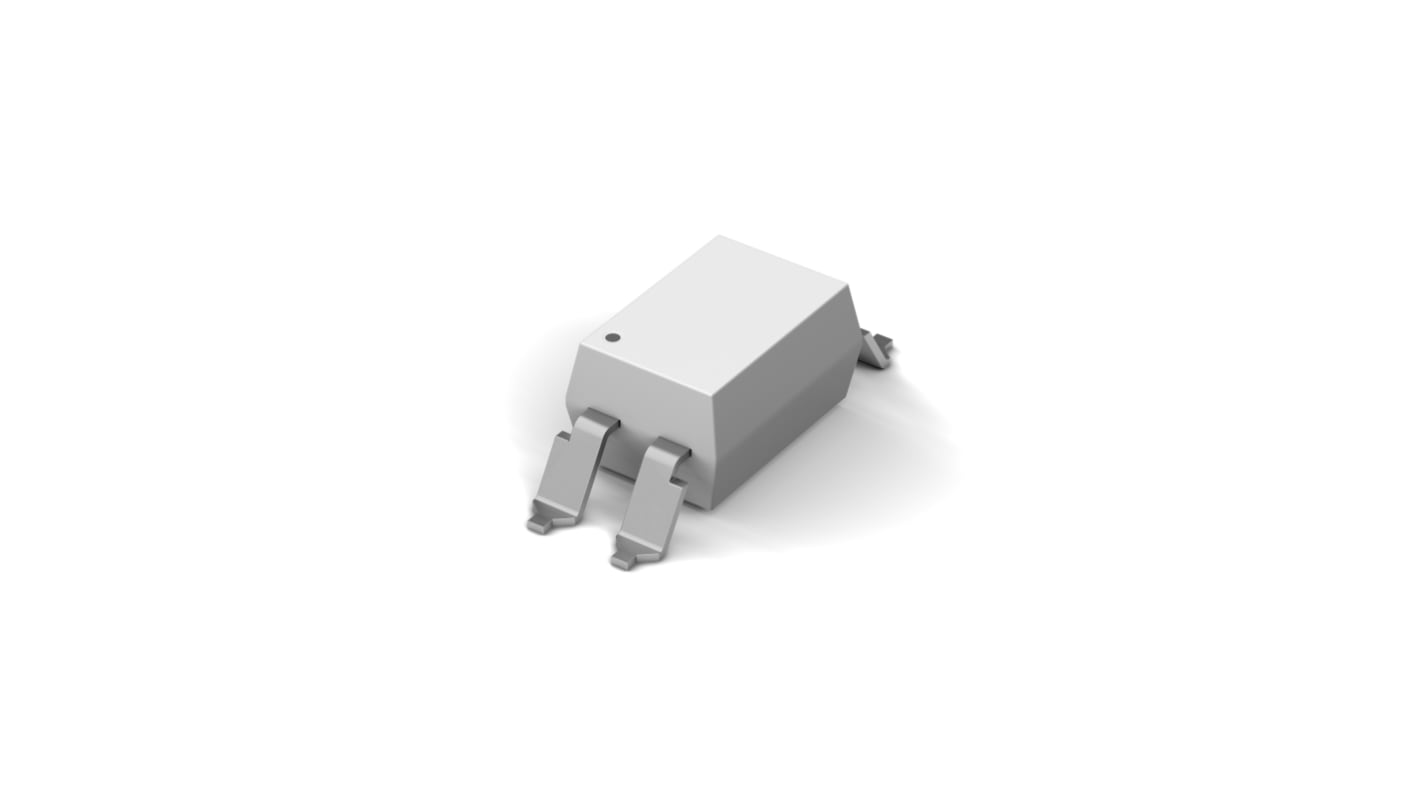

The Wurth Elektronik WL-OCPT is a 4-pin, DIP-SLM type package surface mount optocoupler phototransistor with 6.5mm x 4.58mm x 3.5mm(L x W x H) dimensions. The phototransistor has 80V collector emitter voltage and 60mA forward current with 200mW power dissipation. Typical applications include the controls of various types of loads such as test and measurement equipment, data communications, power supplies sensors.
High isolation voltage
Good stability of inner isolation
Stable CTR in full operation
Different CTR binnings available
Fast switching times
Good stability of inner isolation
Stable CTR in full operation
Different CTR binnings available
Fast switching times
