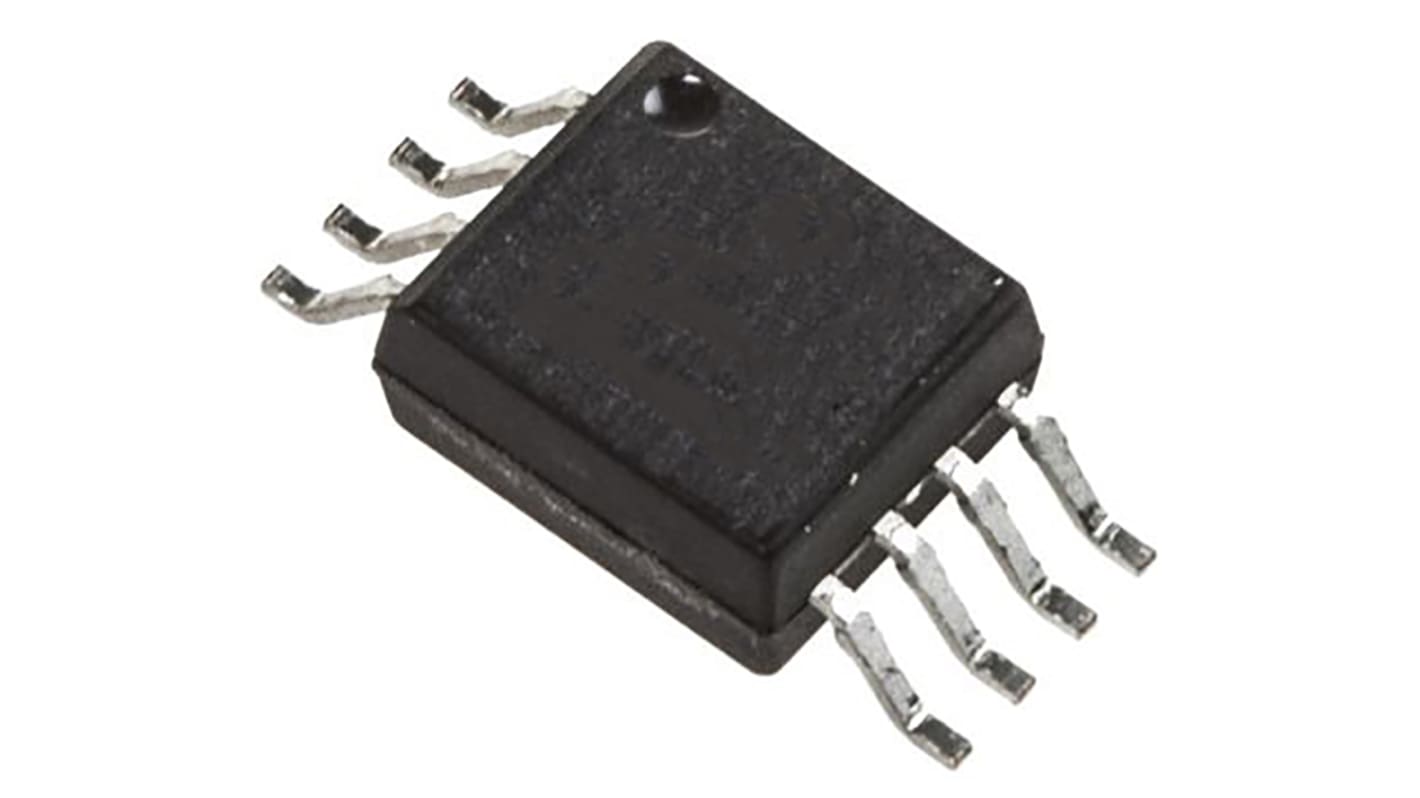

Renesas, PS9821-1-AX Photodetector Output Optocoupler, Surface Mount, 8-Pin SSOP

View all Optocouplers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
186-4356
Mfr. Part No.:
PS9821-1-AX
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Mounting Type

Surface Mount

Output Device

Photodetector

Maximum Forward Voltage

1.8V

Number of Channels

1

Number of Pins

8

Package Type

SSOP

Typical Rise Time

20ns

Maximum Input Current

10 mA

Isolation Voltage

2.5 kVrms

Typical Fall Time

5ns

Series

PS

COO (Country of Origin):
JP
The PS9821-1 and PS9821-2 are active-low type high-speed photocouplers that use a GaAlAs light-emitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side. The PS9821-1, -2 are designed specifically for high common mode transient immunity (CMR) and low pulse width distortion, PS9821-2 is suitable for high density applications.

Low power consumption (VCC = 3.3 V)
Pulse width distortion (⏐tPHL−tPLH⏐ = 35 ns MAX.)
High common mode transient immunity (CMH, CML = ±15 kV/μs MIN.)
40% reduction of mounting area (5-pin SOP x 2)
High-speed (15 Mbps)
High isolation voltage (BV = 2 500 Vr.m.s.)
Open collector output
Pb-Free product
APPLICATIONS
Measurement equipment
PDP
FA Network
