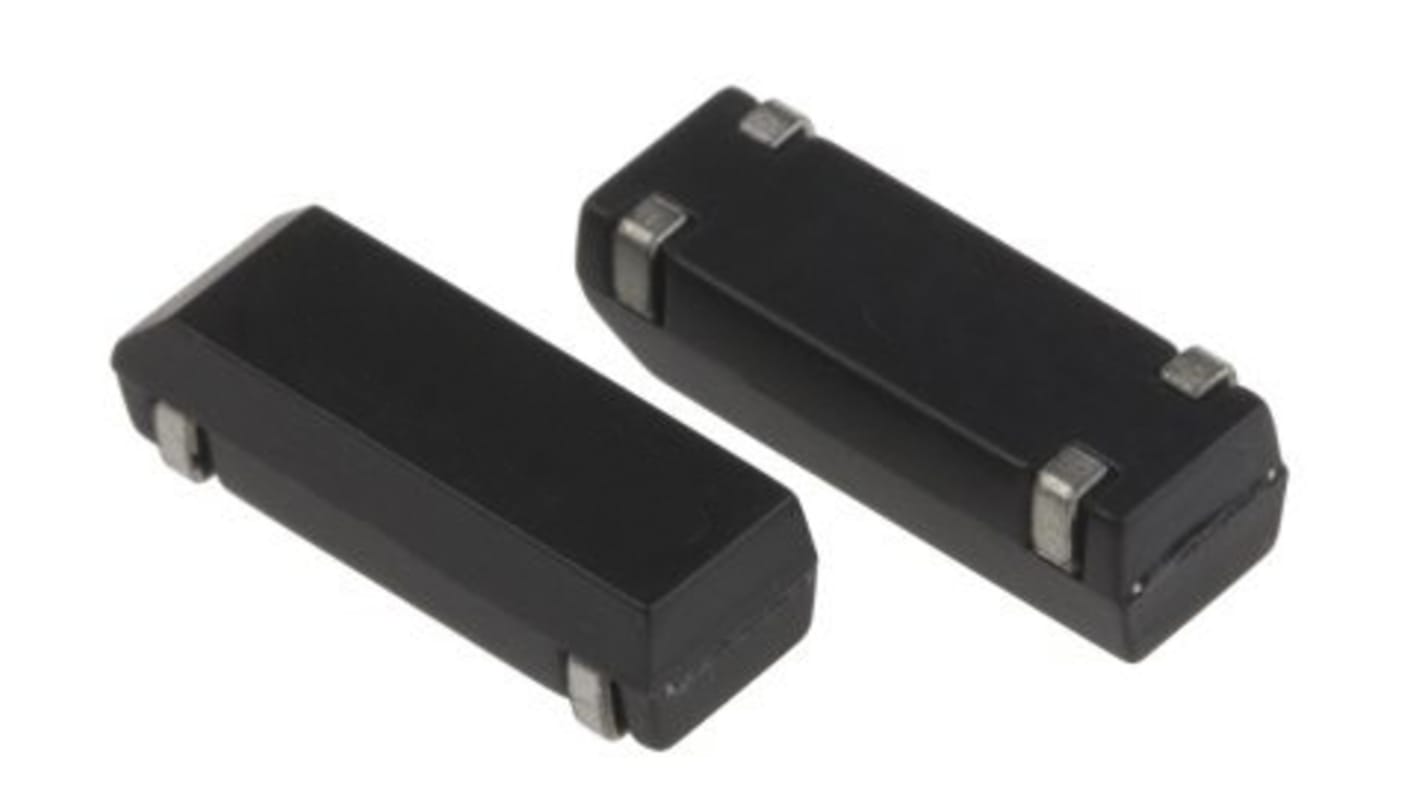

onsemi, FOD814ASD AC/DC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin SMT
- RS Stock No.:
- 184-4790
- Mfr. Part No.:
- FOD814ASD
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£8.975
(exc. VAT)
£10.775
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,575 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.359 | £8.98 |
| 100 - 225 | £0.31 | £7.75 |
| 250 - 475 | £0.268 | £6.70 |
| 500 + | £0.236 | £5.90 |
*price indicative
- RS Stock No.:
- 184-4790
- Mfr. Part No.:
- FOD814ASD
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Mounting Type | Surface Mount | |
| Output Device | Phototransistor | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | SMT | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 4µs | |
| Maximum Input Current | 50 mA | |
| Isolation Voltage | 5000 Vrms ac | |
| Maximum Current Transfer Ratio | 150% | |
| Minimum Current Transfer Ratio | 50% | |
| Typical Fall Time | 3µs | |
| Series | FOD814 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Mounting Type Surface Mount | ||
Output Device Phototransistor | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type SMT | ||
Input Current Type AC/DC | ||
Typical Rise Time 4µs | ||
Maximum Input Current 50 mA | ||
Isolation Voltage 5000 Vrms ac | ||
Maximum Current Transfer Ratio 150% | ||
Minimum Current Transfer Ratio 50% | ||
Typical Fall Time 3µs | ||
Series FOD814 | ||
- COO (Country of Origin):
- TH
The FOD814 consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output in a 4-pin dual in-line package.
AC Input Response (FOD814)
Current Transfer Ratio FOD814A: 50-150%
Minimum BVCEO of 70 V Guaranteed
5,000 VACRMS for 1 Minute
Applications
AC-DC Merchant Power Supply
Consumer Appliances
Industrial Motor
Current Transfer Ratio FOD814A: 50-150%
Minimum BVCEO of 70 V Guaranteed
5,000 VACRMS for 1 Minute
Applications
AC-DC Merchant Power Supply
Consumer Appliances
Industrial Motor
