- RS Stock No.:
- 184-1024
- Mfr. Part No.:
- MOC3063SR2VM
- Brand:
- onsemi
Available to back order for despatch 11/06/2024
Added
Price Each (On a Reel of 1000)
£0.314
(exc. VAT)
£0.377
(inc. VAT)
Units | Per unit | Per Reel* |
1000 + | £0.314 | £314.00 |
*price indicative |
- RS Stock No.:
- 184-1024
- Mfr. Part No.:
- MOC3063SR2VM
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details

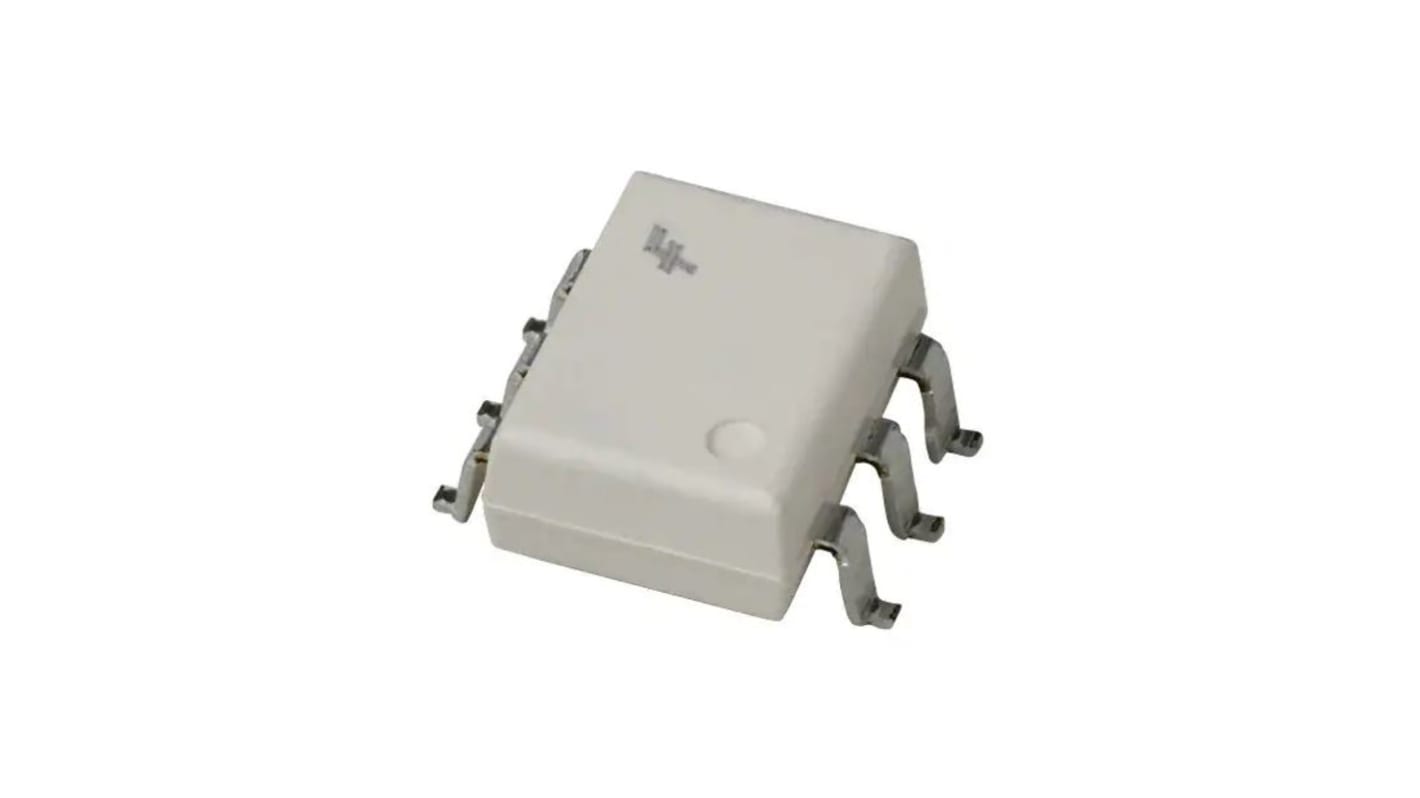

The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.
Simplifies Logic Control of 115/240 VAC Power
Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise
600 V Peak Blocking Voltage
Superior Static dv/dt
600 V/μs (MOC306xM)
1000 V/μs (MOC316xM)
Applications:
Consumer Appliances
Industrial Motor
Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise
600 V Peak Blocking Voltage
Superior Static dv/dt
600 V/μs (MOC306xM)
1000 V/μs (MOC316xM)
Applications:
Consumer Appliances
Industrial Motor
Specifications
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Output Device | Triac Driver |
Maximum Forward Voltage | 1.5V |
Number of Channels | 1 |
Number of Pins | 6 |
Package Type | SMT |
Maximum Input Current | 60 mA |
Isolation Voltage | 4170 (Minimum) Vrms ac |
Logic Output | Yes |
