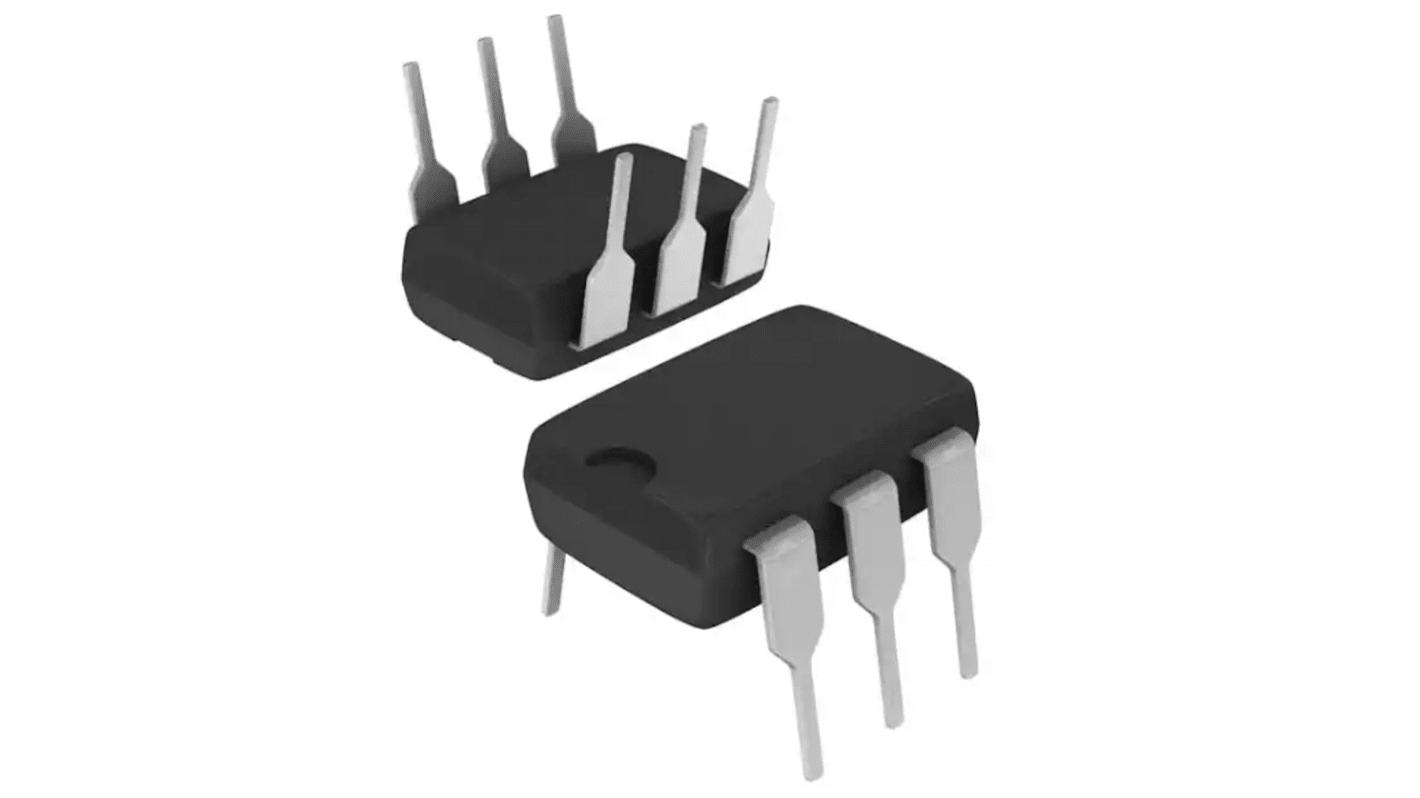

Vishay AC/DC Input Optocoupler, Through Hole, 6-Pin DIP
- RS Stock No.:
- 180-8371
- Mfr. Part No.:
- LH1500AT
- Brand:
- Vishay
Subtotal (1 tube of 50 units)*
£42.25
(exc. VAT)
£50.70
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 550 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £0.845 | £42.25 |
*price indicative
- RS Stock No.:
- 180-8371
- Mfr. Part No.:
- LH1500AT
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.45V | |
| Packaging | Tape & Reel | |
| Number of Channels | 1 | |
| Number of Pins | 6 | |
| Package Type | DIP | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 0.13ms | |
| Maximum Input Current | 50mA | |
| Isolation Voltage | 5300Vrms | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Typical Fall Time | 0.05ms | |
| Standards/Approvals | UL1577 | |
| Series | LH1500 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.45V | ||
Packaging Tape & Reel | ||
Number of Channels 1 | ||
Number of Pins 6 | ||
Package Type DIP | ||
Input Current Type AC/DC | ||
Typical Rise Time 0.13ms | ||
Maximum Input Current 50mA | ||
Isolation Voltage 5300Vrms | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Typical Fall Time 0.05ms | ||
Standards/Approvals UL1577 | ||
Series LH1500 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Vishay LH1500 solid state relay is robust, ideal for telecom and ground fault applications. It is constructed using a GaAlAs LED for actuation control and MOSFETs for the switch output.
Current limit protection
Isolation test voltage 5300 VRMS
Load voltage 350 V
Clean bounce free switching
Low power consumption
