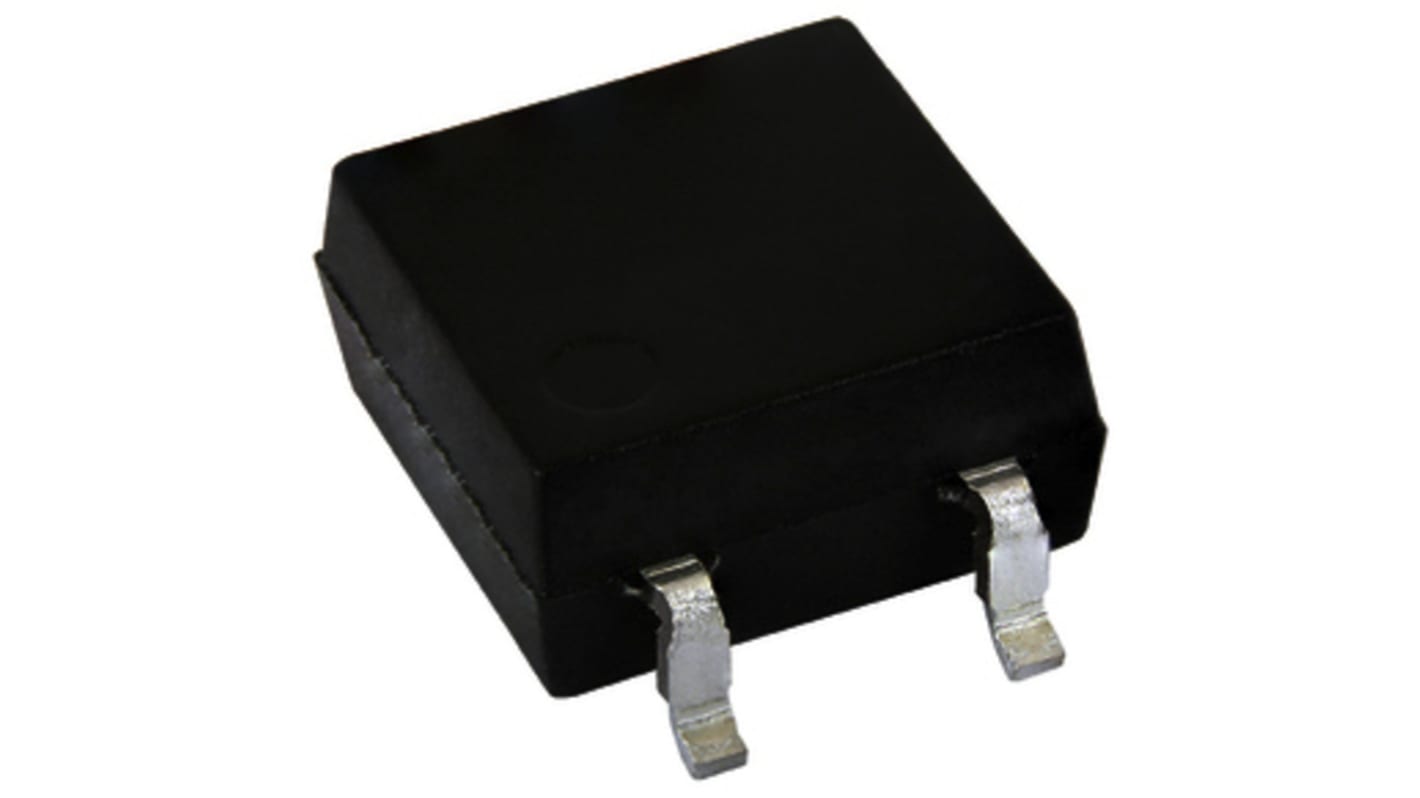

Vishay, LH1546AEF MOSFET Output Optocoupler, Surface Mount, 4-Pin SMD
- RS Stock No.:
- 180-6984
- Mfr. Part No.:
- LH1546AEF
- Brand:
- Vishay
Subtotal (1 tube of 100 units)*
£127.80
(exc. VAT)
£153.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 + | £1.278 | £127.80 |
*price indicative
- RS Stock No.:
- 180-6984
- Mfr. Part No.:
- LH1546AEF
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mounting Type | Surface Mount | |
| Output Device | MOSFET | |
| Maximum Forward Voltage | 1.45V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | SMD | |
| Maximum Input Current | 50 mA | |
| Isolation Voltage | 5.3 kVrms | |
| Series | LH | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Output Device MOSFET | ||
Maximum Forward Voltage 1.45V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type SMD | ||
Maximum Input Current 50 mA | ||
Isolation Voltage 5.3 kVrms | ||
Series LH | ||
- COO (Country of Origin):
- MY
The LH1546AEF (4 pin SOP) is robust, ideal for telecom and ground fault applications. It is an SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and MOSFETs for the switch output. In addition, it employs current-limiting circuitry to provide overvoltage protection.
Current limit protection
Isolation test voltage 3750 VRMS
Typical RON 28 Ω
APPLICATIONS:
General telecom switching
Instrumentation
Industrial controls
Isolation test voltage 3750 VRMS
Typical RON 28 Ω
