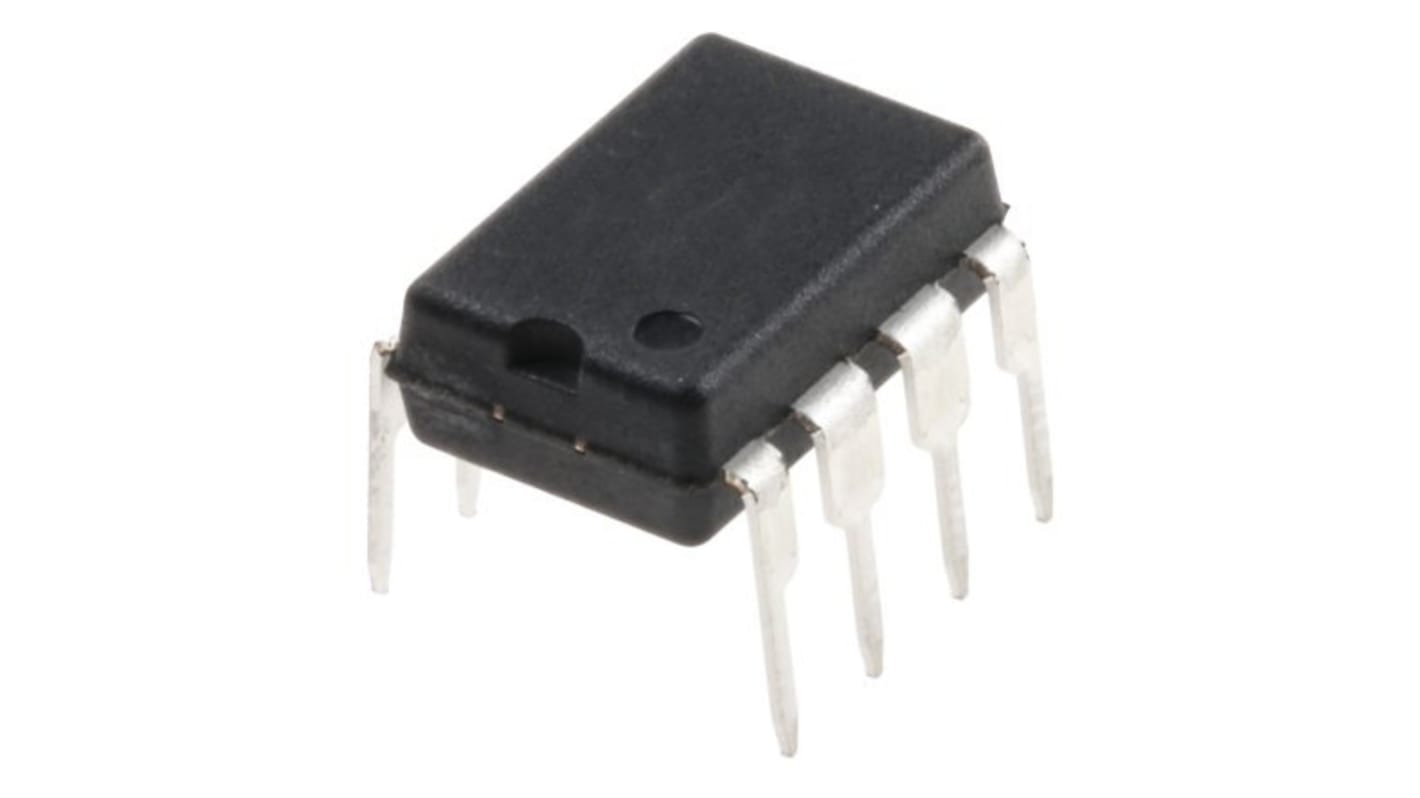

Broadcom, HCPL-3120-000E MOSFET Output Optocoupler, Surface Mount, 8-Pin DIP
- RS Stock No.:
- 178-3205
- Mfr. Part No.:
- HCPL-3120-000E
- Brand:
- Broadcom
Subtotal (1 tube of 50 units)*
£72.00
(exc. VAT)
£86.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 50 left, ready to ship
- Plus 100 left, ready to ship from another location
- Final 550 unit(s) shipping from 29 October 2025
Units | Per unit | Per Tube* |
---|---|---|
50 + | £1.44 | £72.00 |
*price indicative
- RS Stock No.:
- 178-3205
- Mfr. Part No.:
- HCPL-3120-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Mounting Type | Surface Mount | |
Output Device | MOSFET | |
Maximum Forward Voltage | 1.4V | |
Number of Channels | 1 | |
Number of Pins | 8 | |
Package Type | DIP | |
Typical Rise Time | 0.1µs | |
Maximum Input Current | 500 μA | |
Isolation Voltage | 3.75 kV | |
Typical Fall Time | 0.1µs | |
Series | HCPL | |
Special Features | 500 ns Maximum Switching Speeds, Under Voltage Lock-Out Protection (UVLO) with Hysteresis | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device MOSFET | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type DIP | ||
Typical Rise Time 0.1µs | ||
Maximum Input Current 500 μA | ||
Isolation Voltage 3.75 kV | ||
Typical Fall Time 0.1µs | ||
Series HCPL | ||
Special Features 500 ns Maximum Switching Speeds, Under Voltage Lock-Out Protection (UVLO) with Hysteresis | ||
Optocoupler, Transistor Output, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
The Broadcom HCPL-3120 gate drive optocouplers contain a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. It is ideally suited for driving power IGBTs and MOSFETs used in motor control inverted applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices.
2.0 A Minimum Peak Output Current
15 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1500 V
0.5 V Maximum Low Level Output Voltage (VOL)
Eliminates Need for Negative Gate Drive
ICC = 5 mA Maximum Supply Current
Under Voltage Lock-Out Protection (UVLO) with Hysteresis
Wide Operating VCC Range: 15 to 30 Volts
500 ns Maximum Switching Speeds
Industrial Temperature Range:
-40 degree C to 100 degree C
15 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1500 V
0.5 V Maximum Low Level Output Voltage (VOL)
Eliminates Need for Negative Gate Drive
ICC = 5 mA Maximum Supply Current
Under Voltage Lock-Out Protection (UVLO) with Hysteresis
Wide Operating VCC Range: 15 to 30 Volts
500 ns Maximum Switching Speeds
Industrial Temperature Range:
-40 degree C to 100 degree C
Optocouplers, Avago Technologies
