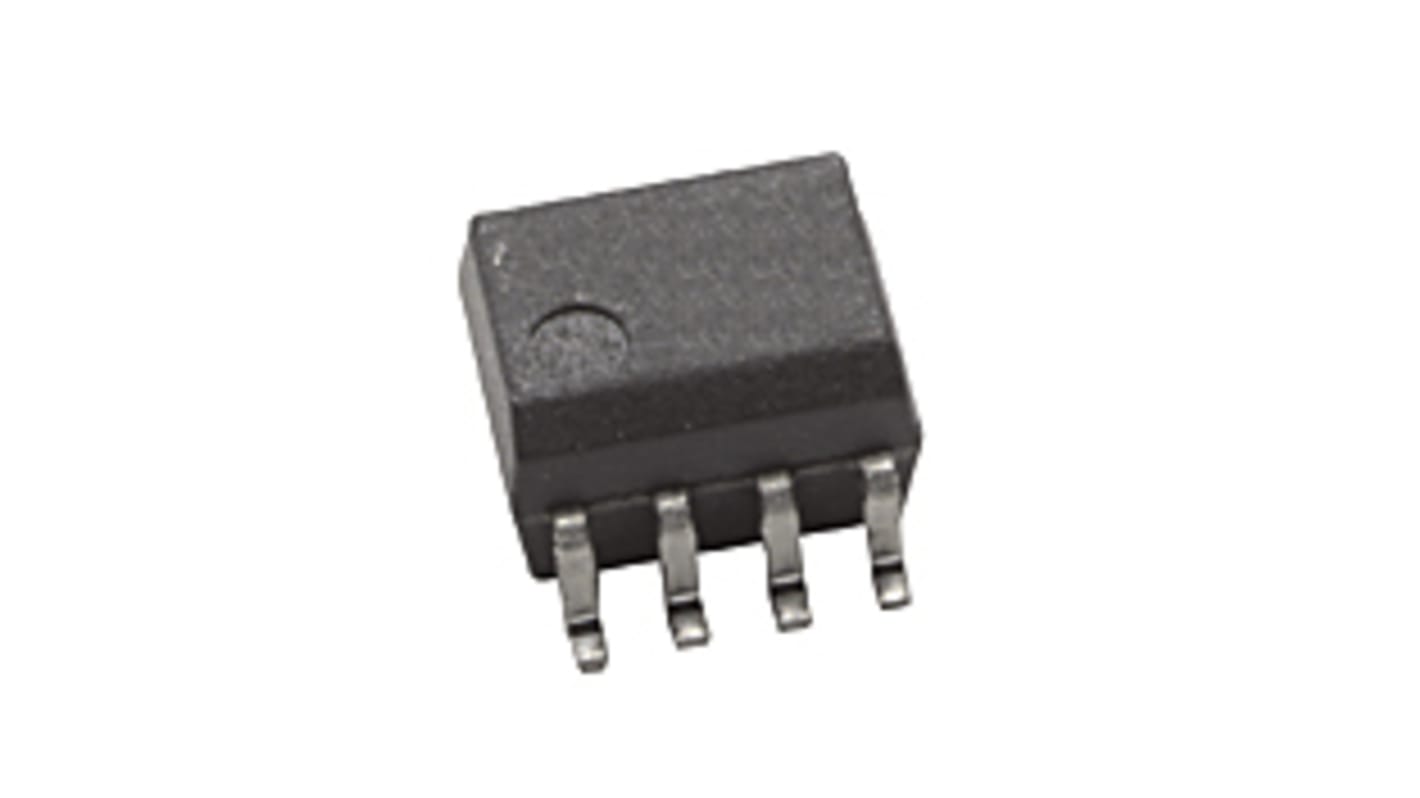

Broadcom, HCPL-0211-500E Schmitt Trigger Output Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 174-4183
- Mfr. Part No.:
- HCPL-0211-500E
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 5 units)*
£14.10
(exc. VAT)
£16.90
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 90 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.82 | £14.10 |
| 50 - 120 | £1.98 | £9.90 |
| 125 - 370 | £1.698 | £8.49 |
| 375 - 745 | £1.508 | £7.54 |
| 750 + | £1.368 | £6.84 |
*price indicative
- RS Stock No.:
- 174-4183
- Mfr. Part No.:
- HCPL-0211-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | Schmitt Trigger | |
| Maximum Forward Voltage | 1.85V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Typical Rise Time | 30ns | |
| Maximum Input Current | 1 A | |
| Isolation Voltage | 3750 Vrms | |
| Logic Output | Yes | |
| Typical Fall Time | 7ns | |
| Series | HCPL | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device Schmitt Trigger | ||
Maximum Forward Voltage 1.85V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Typical Rise Time 30ns | ||
Maximum Input Current 1 A | ||
Isolation Voltage 3750 Vrms | ||
Logic Output Yes | ||
Typical Fall Time 7ns | ||
Series HCPL | ||
The Broadcom HCPL-0211 optocoupler is an optically-coupled logic gate. It contains a GaAsP LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, illuminating the need for additional waveshaping.A superior internal shield on the HCPL-0211 guarantees common mode transient immunity of 10 kV/ms at a common mode voltage of 1000 volts.
Wide Operating VCC Range: 4.5 to 20 Volts
300 ns Propagation Delay Guaranteed over the Full Temperature Range
5 Mbd Typical Signal Rate
Low Input Current (1.6 mA to 1.8 mA)
Hysteresis
Totem Pole Output (No Pull-up Resistor Required)
Available in 8-Pin DIP, SOIC-8, Wide body Packages
Guaranteed Performance from -40 degrees C to 85 degrees C
300 ns Propagation Delay Guaranteed over the Full Temperature Range
5 Mbd Typical Signal Rate
Low Input Current (1.6 mA to 1.8 mA)
Hysteresis
Totem Pole Output (No Pull-up Resistor Required)
Available in 8-Pin DIP, SOIC-8, Wide body Packages
Guaranteed Performance from -40 degrees C to 85 degrees C
