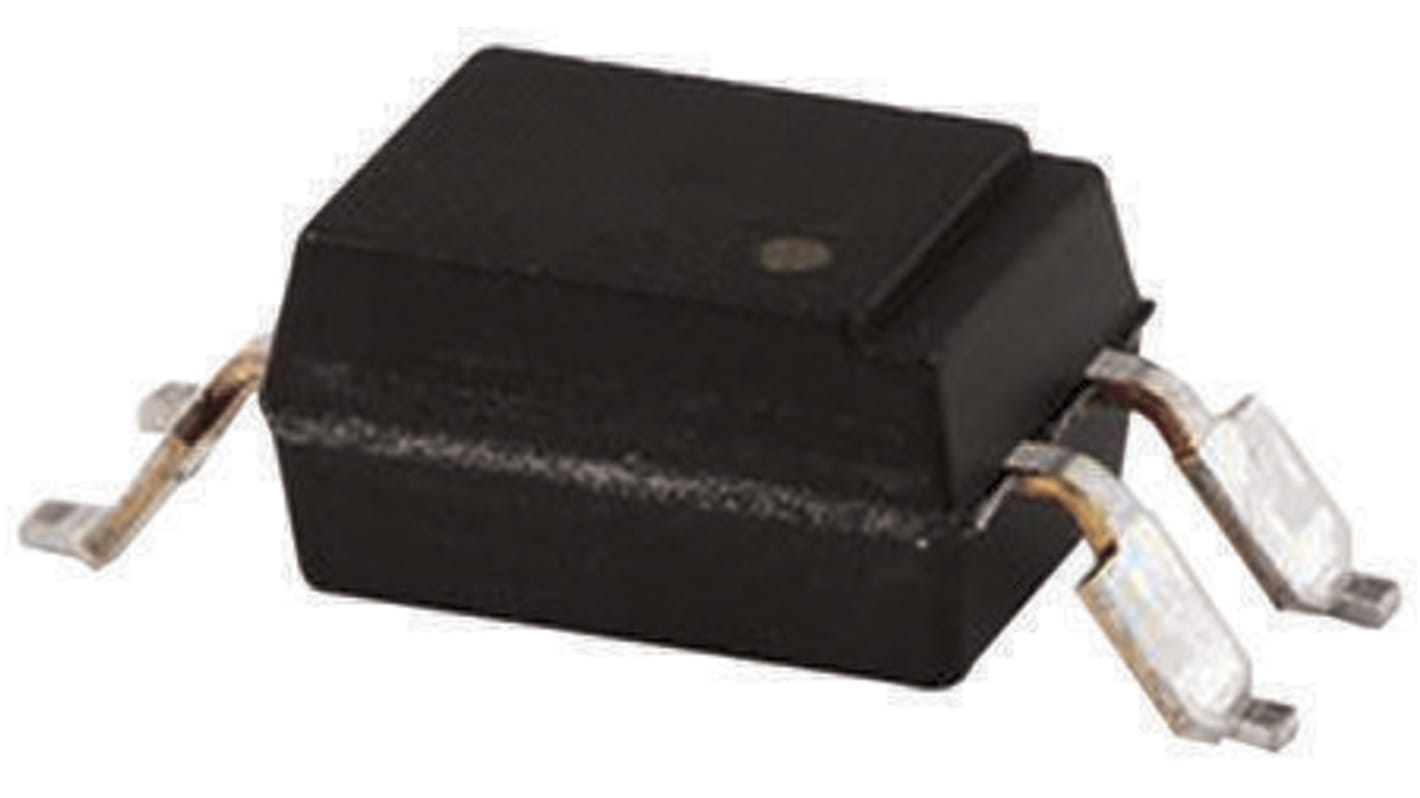

Isocom, SFH615A-4XSMT&R AC Input NPN Phototransistor Output Optocoupler, Surface Mount, 4-Pin SMD
- RS Stock No.:
- 161-1072
- Mfr. Part No.:
- SFH615A-4XSMT&R
- Brand:
- Isocom
Bulk discount available
Subtotal (1 reel of 1000 units)*
£263.00
(exc. VAT)
£316.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.263 | £263.00 |
| 2000 + | £0.256 | £256.00 |
*price indicative
- RS Stock No.:
- 161-1072
- Mfr. Part No.:
- SFH615A-4XSMT&R
- Brand:
- Isocom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Isocom | |
| Mounting Type | Surface Mount | |
| Output Device | NPN Phototransistor | |
| Maximum Forward Voltage | 1.65V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | SMD | |
| Input Current Type | AC | |
| Typical Rise Time | 3µs | |
| Maximum Input Current | 50 mA | |
| Isolation Voltage | 5300 Vrms | |
| Maximum Current Transfer Ratio | 320% | |
| Typical Fall Time | 14µs | |
| Minimum Current Transfer Ratio | 160% | |
| Series | SFH615A | |
| Select all | ||
|---|---|---|
Brand Isocom | ||
Mounting Type Surface Mount | ||
Output Device NPN Phototransistor | ||
Maximum Forward Voltage 1.65V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type SMD | ||
Input Current Type AC | ||
Typical Rise Time 3µs | ||
Maximum Input Current 50 mA | ||
Isolation Voltage 5300 Vrms | ||
Maximum Current Transfer Ratio 320% | ||
Typical Fall Time 14µs | ||
Minimum Current Transfer Ratio 160% | ||
Series SFH615A | ||
- COO (Country of Origin):
- TH
The SFH615A-4 is a single channel device in a dual-in-line package suitable for mounting in printed circuit board assemblies. The device incorporates a high radiance LED and photo transistor detector.
Current transfer ratio (CTR: min 160%)
High Electrical Isolation (2,800VRMS)
Compact dual-in-line package
High Electrical Isolation (2,800VRMS)
Compact dual-in-line package
