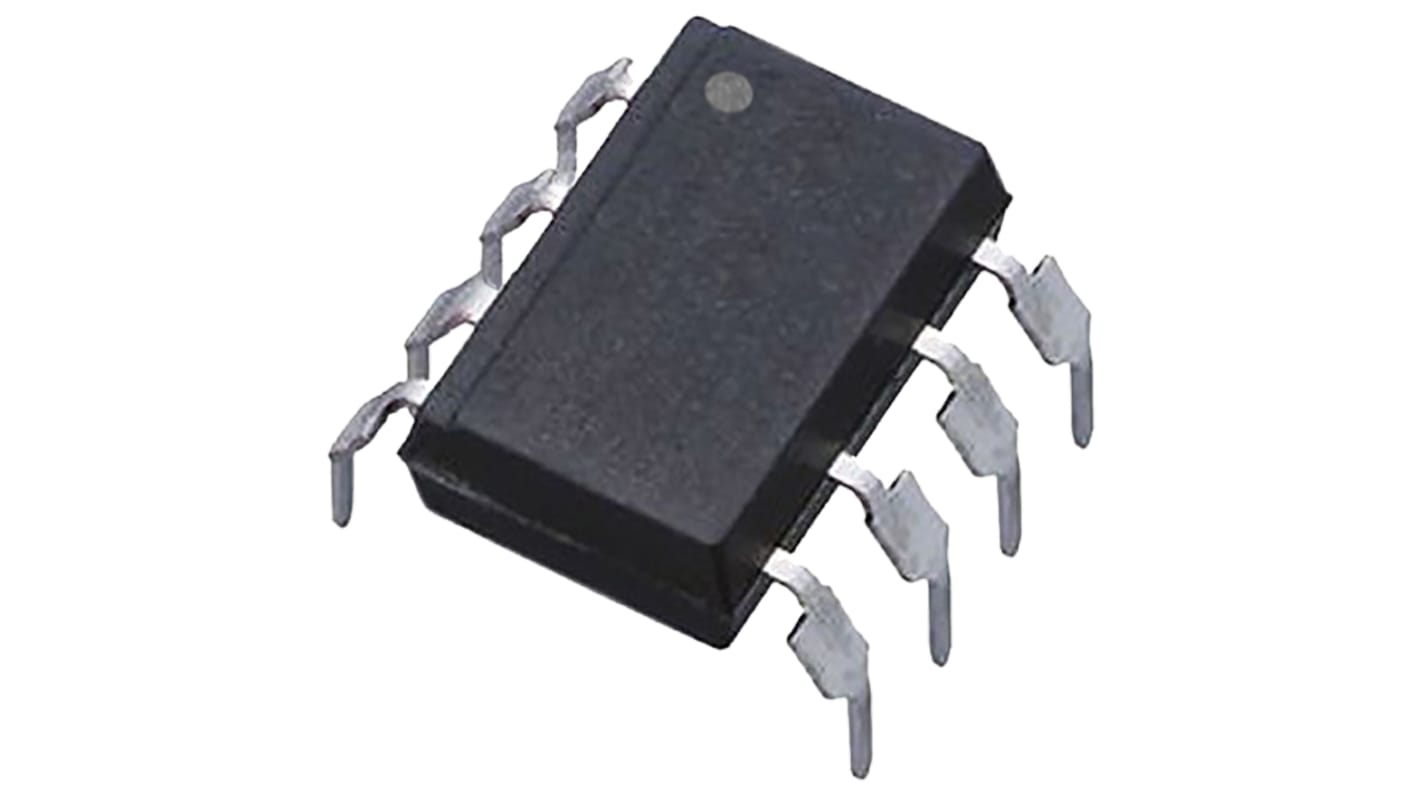

Lite-On LTV-3150M-L DC Input Optocoupler, Surface Mount, 8-Pin DIP

View all Optocouplers

Subtotal (1 pack of 5 units)*

£6.16

(exc. VAT)

£7.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,690 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.232£6.16

*price indicative

Packaging Options:
RS Stock No.:
127-8458
Mfr. Part No.:
LTV-3150M-L
Brand:
Lite-On
Find similar products by selecting one or more attributes.
Select all

Brand

Lite-On

Product Type

Optocoupler

Mount Type

Surface Mount

Maximum Forward Voltage

1.8V

Number of Channels

1

Number of Pins

8

Package Type

DIP

Input Current Type

DC

Typical Rise Time

500ns

Maximum Input Current

25mA

Isolation Voltage

5000Vrms

Minimum Operating Temperature

-40°C

Logic Output

Yes

Maximum Operating Temperature

105°C

Standards/Approvals

UL/ cUL, IEC/EN/DIN EN 60747-5-5

Typical Fall Time

500ns

Series

LTV-3150-L

Automotive Standard

No

Gate Drive Optocouplers, Lite-On


Optocouplers from Lite-On designed specifically for MOSFET and IGBT gate drive applications. These integrated devices include a push-pull output stage capable of directly driving most MOSFETs and IGBTs with ratings up to 1200V and 50A. Typical applications include drives for motor control and power supply system inverters.

Minimum Peak output current of 0.8A

Rail-to-rail output voltage swing

Isolation voltage 5000V RMS

Optocouplers, Lite-On
