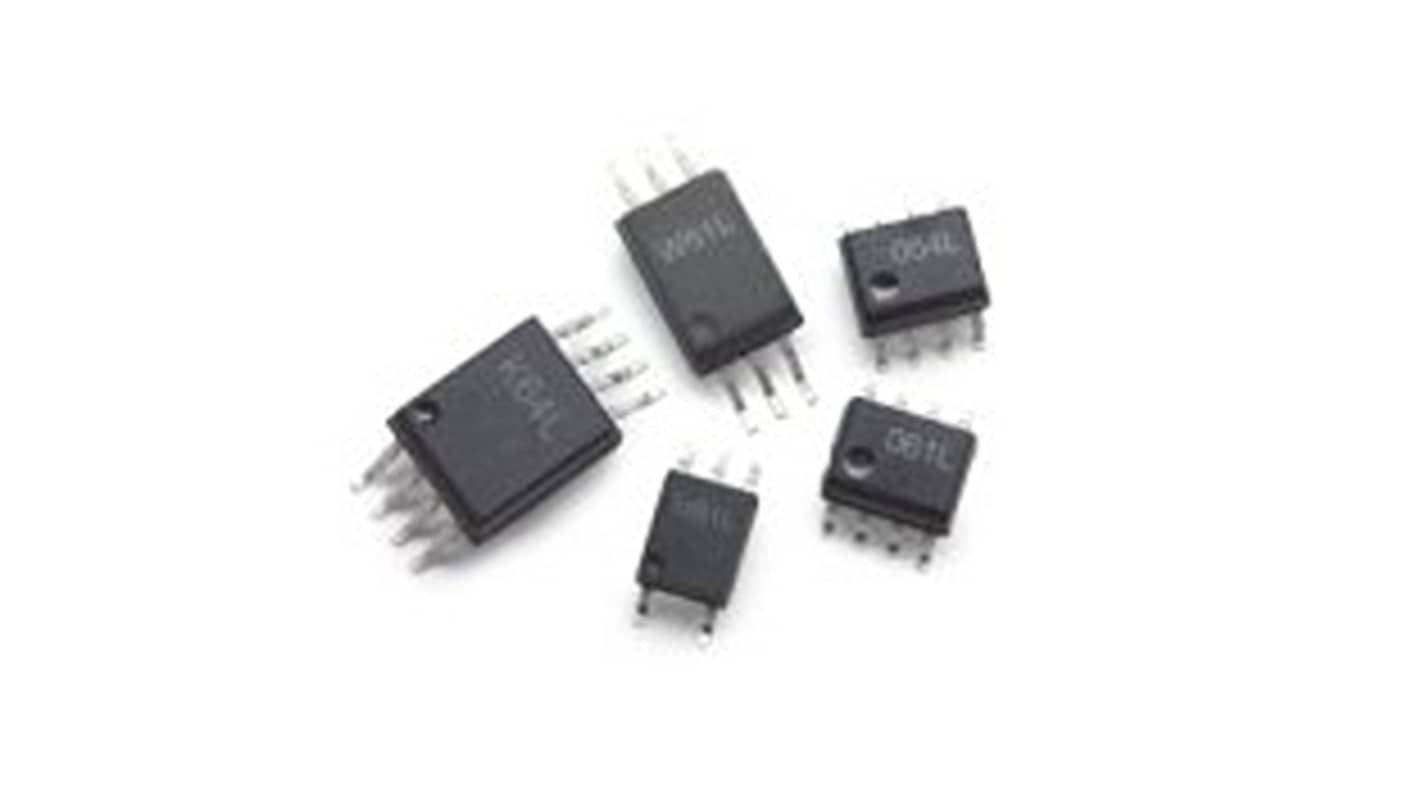

Broadcom ACPL-M61L-000E AC/DC Input Optocoupler, Through Hole, 5-Pin Tubular
- RS Stock No.:
- 242-540P
- Mfr. Part No.:
- ACPL-M61L-000E
- Brand:
- Broadcom
Bulk discount available
Subtotal 50 units (supplied in a tube)*
£106.40
(exc. VAT)
£127.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,985 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £2.128 |
| 100 + | £1.97 |
*price indicative
- RS Stock No.:
- 242-540P
- Mfr. Part No.:
- ACPL-M61L-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mount Type | Through Hole | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.7V | |
| Number of Channels | 1 | |
| Packaging | Tape & Reel | |
| Number of Pins | 5 | |
| Package Type | Tubular | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 12ns | |
| Maximum Input Current | 8mA | |
| Isolation Voltage | 5000Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Typical Fall Time | 12ns | |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, UL 1577, CSA | |
| Series | ACPL-x6xL | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mount Type Through Hole | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.7V | ||
Number of Channels 1 | ||
Packaging Tape & Reel | ||
Number of Pins 5 | ||
Package Type Tubular | ||
Input Current Type AC/DC | ||
Typical Rise Time 12ns | ||
Maximum Input Current 8mA | ||
Isolation Voltage 5000Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Typical Fall Time 12ns | ||
Standards/Approvals IEC/EN/DIN EN 60747-5-5, UL 1577, CSA | ||
Series ACPL-x6xL | ||
Automotive Standard No | ||
The Broadcom Low-power digital optocouplers combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes low power, at maximum 1.3 mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA, most microprocessors can directly drive the LED.
RoHS compliant
CSA approval
