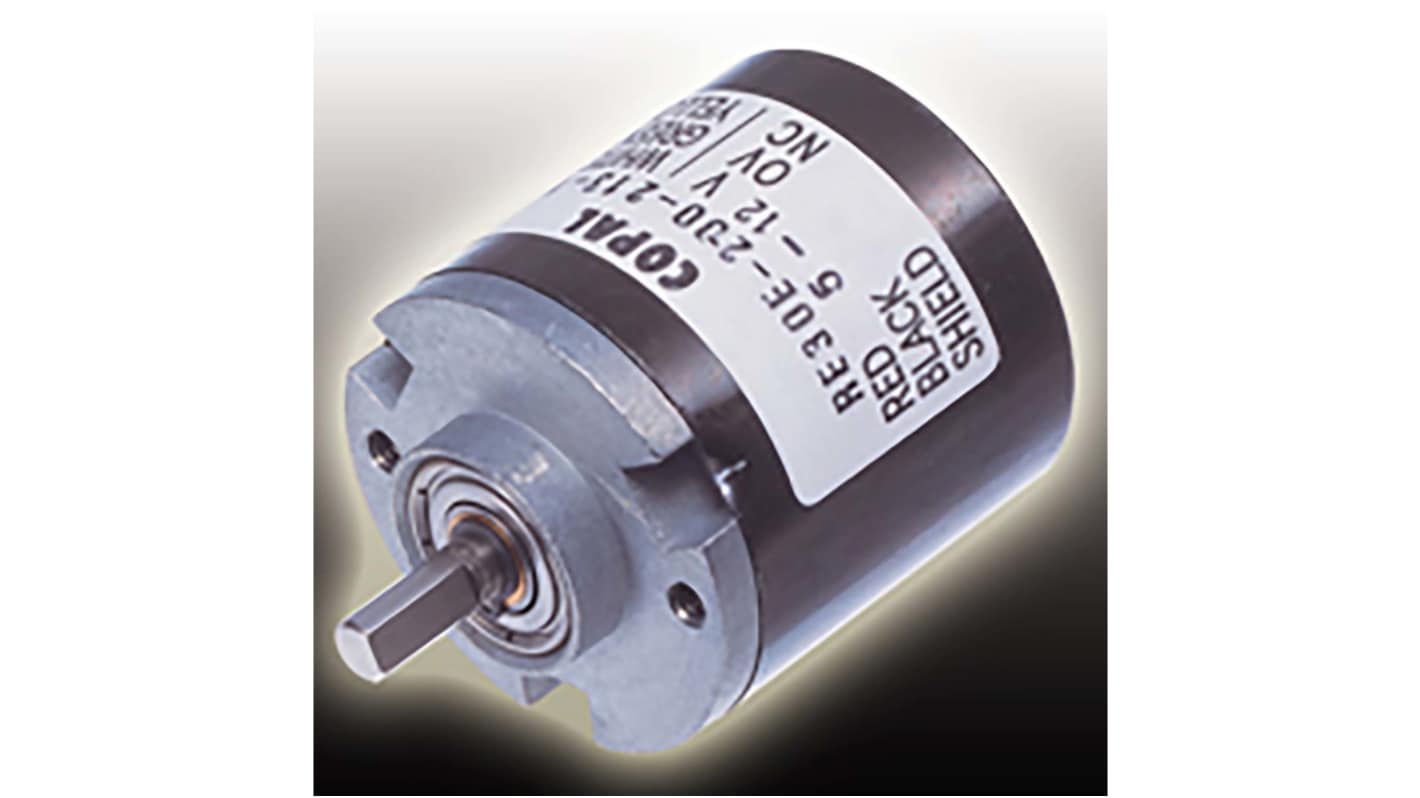

Nidec Components 12V dc, 5 V dc 360 ppr Pulse Optical Encoder with a 4 mm Plain Shaft, Panel Mount, Cable
- RS Stock No.:
- 202-0446
- Mfr. Part No.:
- RE30E-360-213-1
- Brand:
- Nidec Components
Subtotal (1 unit)*
£41.55
(exc. VAT)
£49.86
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 9 left, shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £41.55 |
*price indicative
- RS Stock No.:
- 202-0446
- Mfr. Part No.:
- RE30E-360-213-1
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Product Type | Optical Encoder | |
| Pulses Per Revolution | 360ppr | |
| Encoder Signal | Digital Square Wave | |
| Supply Voltage | 12, 5V dc | |
| Shaft Diameter | 4mm | |
| Automotive Standard | No | |
| Mount Type | Panel Mount | |
| Shaft Style | Plain | |
| Termination Style | Cable | |
| Encoder Type | Incremental | |
| Series | RE30E | |
| Standards/Approvals | RoHS Compliant | |
| Current Rating | 50mA | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Product Type Optical Encoder | ||
Pulses Per Revolution 360ppr | ||
Encoder Signal Digital Square Wave | ||
Supply Voltage 12, 5V dc | ||
Shaft Diameter 4mm | ||
Automotive Standard No | ||
Mount Type Panel Mount | ||
Shaft Style Plain | ||
Termination Style Cable | ||
Encoder Type Incremental | ||
Series RE30E | ||
Standards/Approvals RoHS Compliant | ||
Current Rating 50mA | ||
- COO (Country of Origin):
- JP
The Copal Electronics optical rotary encoder belongs to RE30E series, It has 360 resolution per revolution. It's operating principle is such as when the light from the LED which passes through the slit of the rotating disk actuates the photo-sensor. The output of the photo-sensor which is quasi-sinusoidal is shaped into square wave by the voltage comparator and fed into a logic circuit.
Comes with a temp. compensation circuit
It has zero index signal
Operating temperature range is from 0 °C to 70 °C
It has IP40 protection class
Very economical
It is RoHS compliant
