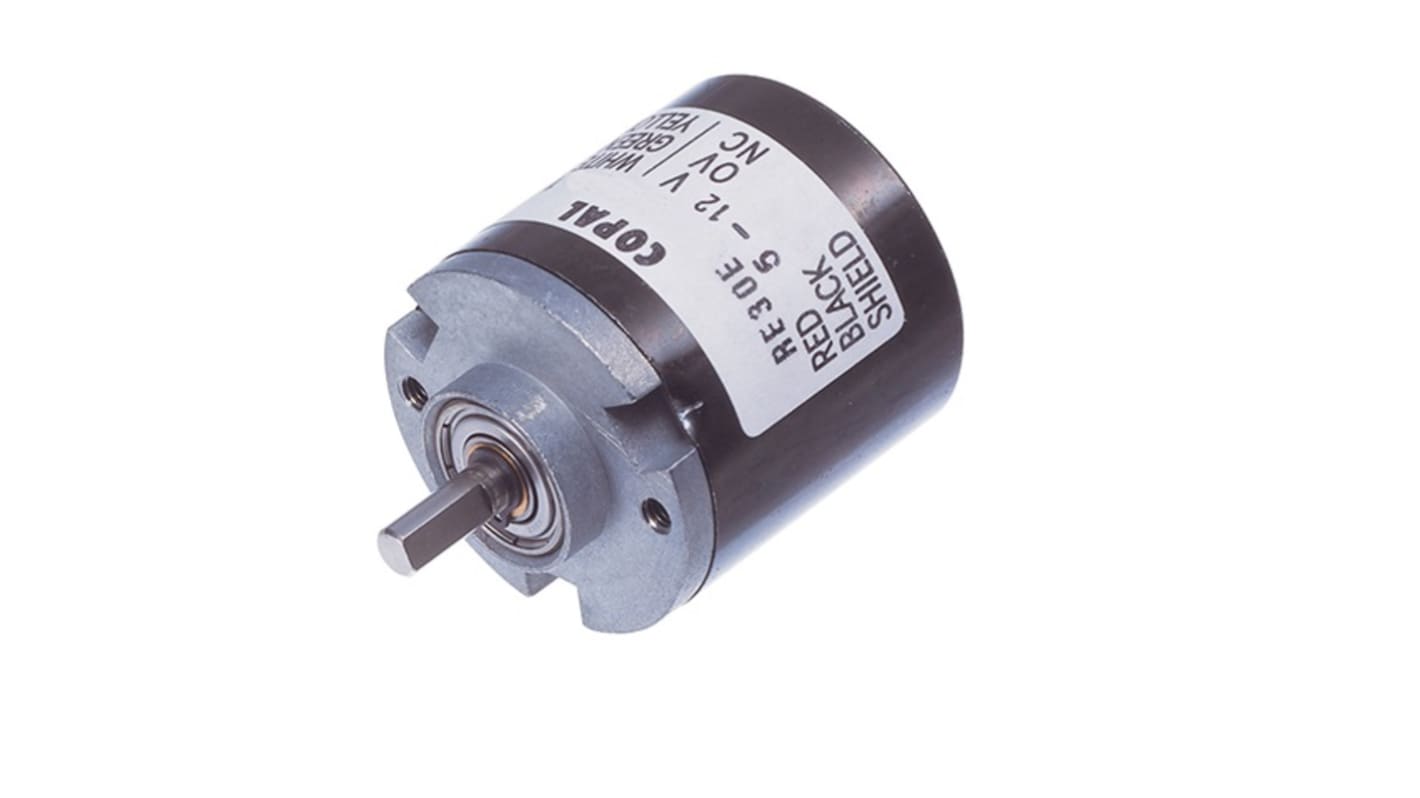

Nidec Components 5 to 12 V dc 500 ppr Pulse Optical Encoder with a 4 mm Flat Shaft, Wire
- RS Stock No.:
- 244-4105
- Mfr. Part No.:
- RE30E-500-213-1
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 box of 5 units)*
£302.04
(exc. VAT)
£362.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 5 - 20 | £60.408 | £302.04 |
| 25 - 95 | £57.69 | £288.45 |
| 100 + | £55.454 | £277.27 |
*price indicative
- RS Stock No.:
- 244-4105
- Mfr. Part No.:
- RE30E-500-213-1
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Pulses Per Revolution | 500ppr | |
| Product Type | Optical Encoder | |
| Encoder Signal | Digital Square Wave | |
| Supply Voltage | 5 to 12 V dc | |
| Shaft Diameter | 4mm | |
| Shaft Length | 100.5mm | |
| Automotive Standard | No | |
| Mounting Hole Diameter | 4 mm | |
| Shaft Style | Flat | |
| Termination Style | Wire | |
| Encoder Type | Incremental | |
| Standards/Approvals | RoHS | |
| Series | RE30E | |
| Current Rating | 50 mA | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Pulses Per Revolution 500ppr | ||
Product Type Optical Encoder | ||
Encoder Signal Digital Square Wave | ||
Supply Voltage 5 to 12 V dc | ||
Shaft Diameter 4mm | ||
Shaft Length 100.5mm | ||
Automotive Standard No | ||
Mounting Hole Diameter 4 mm | ||
Shaft Style Flat | ||
Termination Style Wire | ||
Encoder Type Incremental | ||
Standards/Approvals RoHS | ||
Series RE30E | ||
Current Rating 50 mA | ||
- COO (Country of Origin):
- JP
The NIDEC COPAL ELECTRONICS RE30E series optical encoder available with two phases, offers a power supply voltage applicable for 5 to 12 V, 24 V.
Temperature compensation circuit
Zero index signal
Economy type
RoHS compliant
