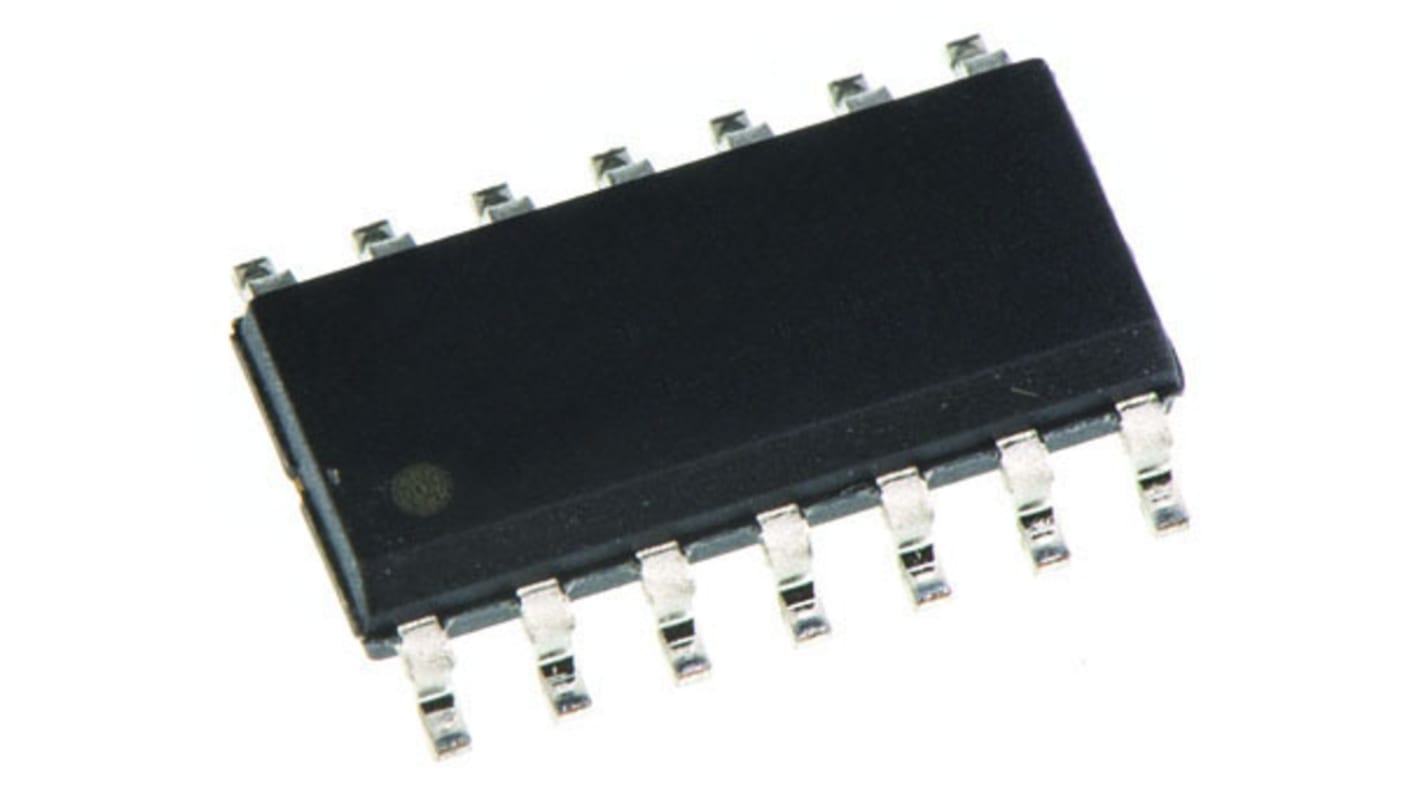

TLC274ACDR Texas Instruments, Op Amp, 1.7MHz, 5 → 15 V, 14-Pin SOIC

RS Stock No.:: 923-4081
Mfr. Part No.:: TLC274ACDR
Brand:: Texas Instruments

TLC274ACDR Texas Instruments, Op Amp, 1.7MHz, 5 → 15 V, 14-Pin SOIC

Discontinued

RS Stock No.:: 923-4081
Mfr. Part No.:: TLC274ACDR
Brand:: Texas Instruments

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Mounting Type	Surface Mount
	Package Type	SOIC
	Power Supply Type	Single
	Number of Channels per Chip	4
	Pin Count	14
	Typical Single Supply Voltage	5 → 15 V
	Typical Gain Bandwidth Product	1.7MHz
	Typical Slew Rate	3.6V/µs
	Maximum Operating Temperature	+70 °C
	Minimum Operating Temperature	0 °C
	Rail to Rail	No
	Typical Voltage Gain	87.2 dB
	Width	3.91mm
	Dimensions	8.65 x 3.91 x 1.58mm
	Length	8.65mm
	Height	1.58mm
	Typical Input Voltage Noise Density	25nV/√Hz

	Select all
	Brand Texas Instruments
	Mounting Type Surface Mount
	Package Type SOIC
	Power Supply Type Single
	Number of Channels per Chip 4
	Pin Count 14
	Typical Single Supply Voltage 5 → 15 V
	Typical Gain Bandwidth Product 1.7MHz
	Typical Slew Rate 3.6V/µs
	Maximum Operating Temperature +70 °C
	Minimum Operating Temperature 0 °C
	Rail to Rail No
	Typical Voltage Gain 87.2 dB
	Width 3.91mm
	Dimensions 8.65 x 3.91 x 1.58mm
	Length 8.65mm
	Height 1.58mm
	Typical Input Voltage Noise Density 25nV/√Hz

ESD Control Selection Guide V1

Precision LinCMOS Operational Amplifiers
