- RS Stock No.:
- 768-1404
- Mfr. Part No.:
- MCP6L04T-E/ST
- Brand:
- Microchip
2475 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 15)
£0.392
(exc. VAT)
£0.47
(inc. VAT)
Units | Per unit | Per Pack* |
15 - 15 | £0.392 | £5.88 |
30 - 90 | £0.371 | £5.565 |
105 + | £0.344 | £5.16 |
*price indicative |
- RS Stock No.:
- 768-1404
- Mfr. Part No.:
- MCP6L04T-E/ST
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details

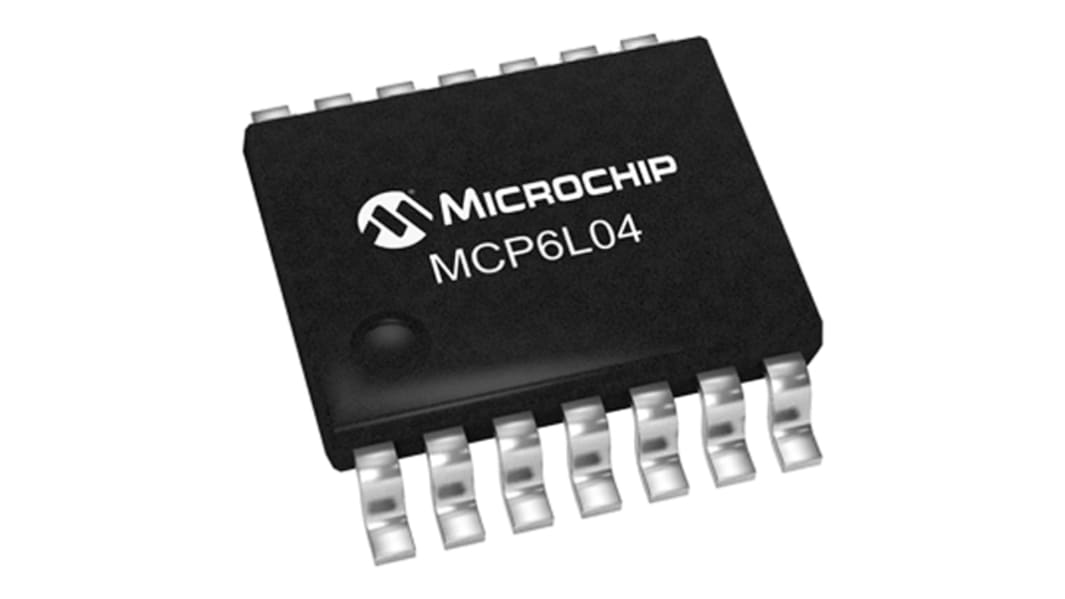

MCP6L01/02/04 Operational Amplifiers
The Microchip MCP6L01/02/04 range of devices are general purpose Operational Amplifiers available in single, dual and quad variants.
Features
Gain Bandwidth Product (GBWP): 1 MHz
Quiescent Current: 85 μA (typical)
Supply voltage range: 1.8V to 6V
Rail to Rail Input and Output
Extended Temperature Range: -40°C to +125°C
Quiescent Current: 85 μA (typical)
Supply voltage range: 1.8V to 6V
Rail to Rail Input and Output
Extended Temperature Range: -40°C to +125°C
Operational Amplifiers, Microchip
Specifications
Attribute | Value |
---|---|
Amplifier Type | General Purpose |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Number of Channels per Chip | 4 |
Pin Count | 14 |
Typical Single Supply Voltage | 1.8 → 6 V |
Typical Gain Bandwidth Product | 1MHz |
Typical Slew Rate | 0.6V/µs |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Typical Voltage Gain | 105 dB |
Rail to Rail | Rail to Rail Input/Output |
Length | 5.1mm |
Typical Input Voltage Noise Density | 24nV/√Hz |
Height | 1.05mm |
Width | 4.5mm |
Dimensions | 5.1 x 4.5 x 1.05mm |
