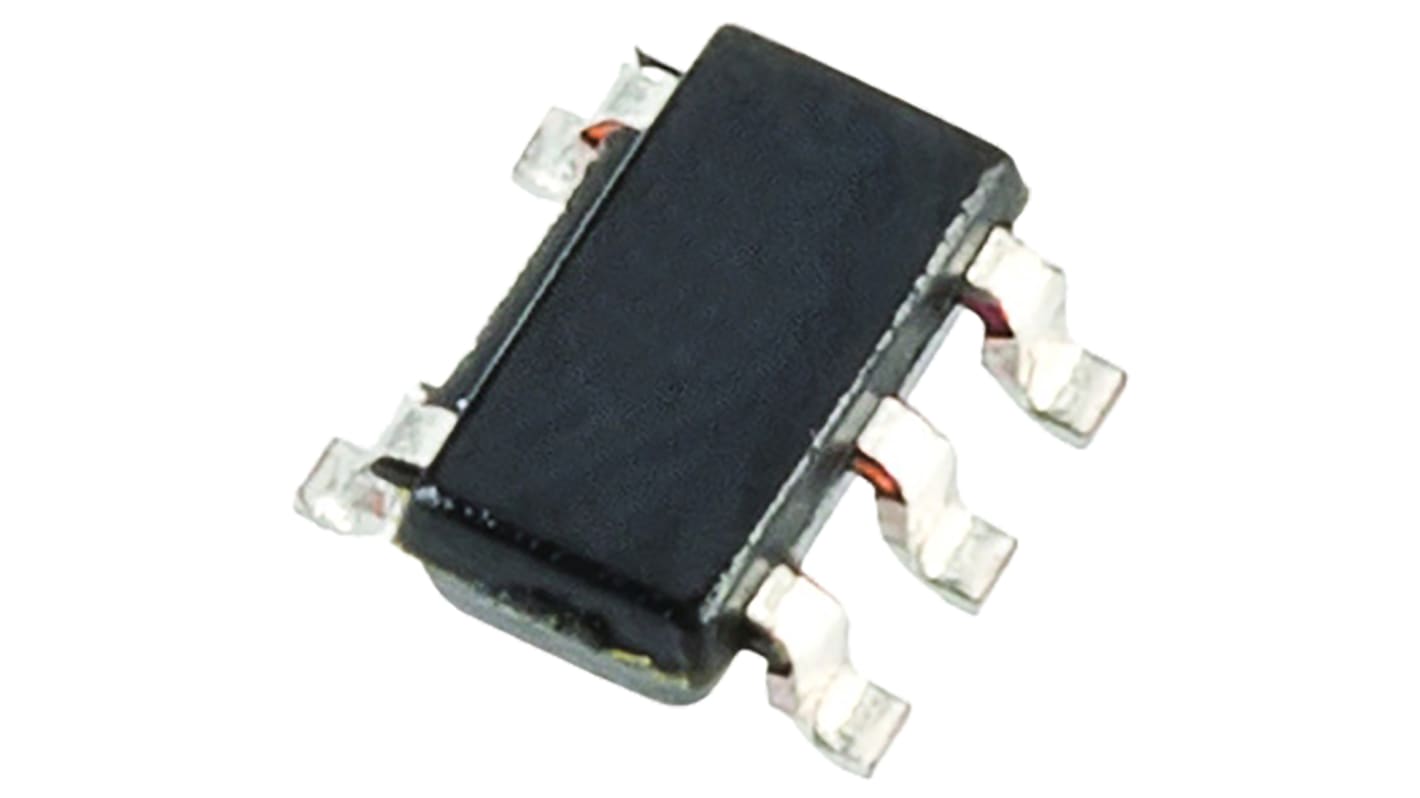

LMV321AS5X onsemi, Op Amp, RRO, 1.2MHz, 2.5 → 5.5 V, 5-Pin SOT23-5
- RS Stock No.:
- 759-9403
- Mfr. Part No.:
- LMV321AS5X
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 759-9403
- Mfr. Part No.:
- LMV321AS5X
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Mounting Type | Surface Mount | |
| Package Type | SOT23-5 | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 1 | |
| Pin Count | 5 | |
| Typical Single Supply Voltage | 2.5 → 5.5 V | |
| Typical Gain Bandwidth Product | 1.2MHz | |
| Typical Slew Rate | 1.5V/µs | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Rail to Rail | Rail to Rail Output | |
| Typical Voltage Gain | 70 dB | |
| Length | 3.1mm | |
| Dimensions | 3.1 x 1.75 x 1.3mm | |
| Height | 1.3mm | |
| Width | 1.75mm | |
| Typical Input Voltage Noise Density | 36nV/√Hz | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Mounting Type Surface Mount | ||
Package Type SOT23-5 | ||
Power Supply Type Single | ||
Number of Channels per Chip 1 | ||
Pin Count 5 | ||
Typical Single Supply Voltage 2.5 → 5.5 V | ||
Typical Gain Bandwidth Product 1.2MHz | ||
Typical Slew Rate 1.5V/µs | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Rail to Rail Rail to Rail Output | ||
Typical Voltage Gain 70 dB | ||
Length 3.1mm | ||
Dimensions 3.1 x 1.75 x 1.3mm | ||
Height 1.3mm | ||
Width 1.75mm | ||
Typical Input Voltage Noise Density 36nV/√Hz | ||
Operational Amplifiers at +5 V max. Supply Voltage, Fairchild Semiconductor
Fairchild enables high-performance designs for amplifiers that combine low power and reliability.
Operational Amplifiers, Fairchild Semiconductor
