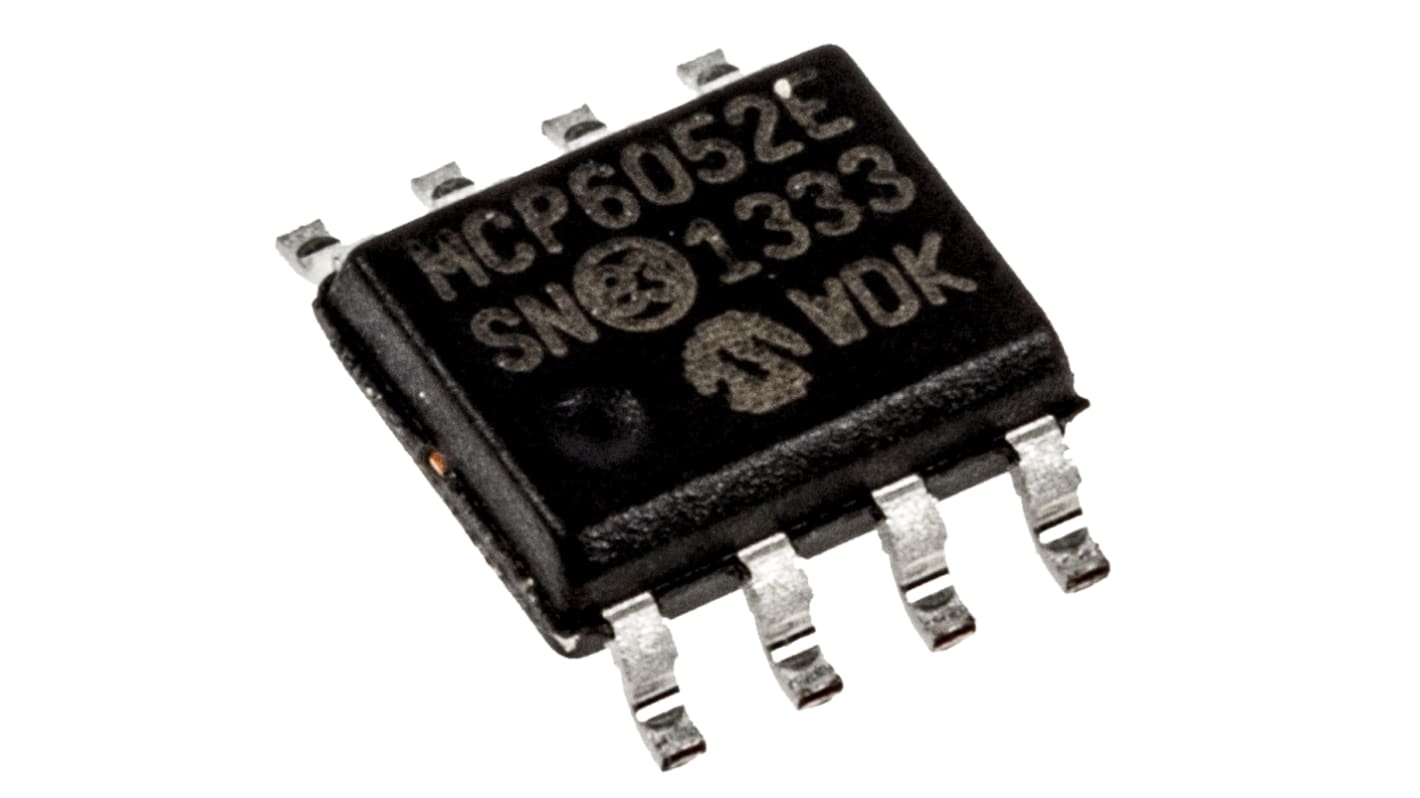

MCP6052-E/SN Microchip, Operational Amplifier, 380 kHz, 8-Pin 6V SOIC
- RS Stock No.:
- 687-8720P
- Mfr. Part No.:
- MCP6052-E/SN
- Brand:
- Microchip
Bulk discount available
Subtotal 25 units (supplied in a tube)*
£17.75
(exc. VAT)
£21.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 99 | £0.71 |
| 100 + | £0.68 |
*price indicative
- RS Stock No.:
- 687-8720P
- Mfr. Part No.:
- MCP6052-E/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 380kHz | |
| Maximum Supply Voltage | 6V | |
| Minimum Supply Voltage | 3V | |
| Slew Rate | 0.15V/μs | |
| Minimum Operating Temperature | -40°C | |
| Vos - Input Offset Voltage | 150 μV | |
| Input Bias Current | 100 pA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | MCP6052 | |
| Length | 4.9mm | |
| Height | 1.25mm | |
| Output Current | 26mA | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 1 pA | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 380kHz | ||
Maximum Supply Voltage 6V | ||
Minimum Supply Voltage 3V | ||
Slew Rate 0.15V/μs | ||
Minimum Operating Temperature -40°C | ||
Vos - Input Offset Voltage 150 μV | ||
Input Bias Current 100 pA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series MCP6052 | ||
Length 4.9mm | ||
Height 1.25mm | ||
Output Current 26mA | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 1 pA | ||
