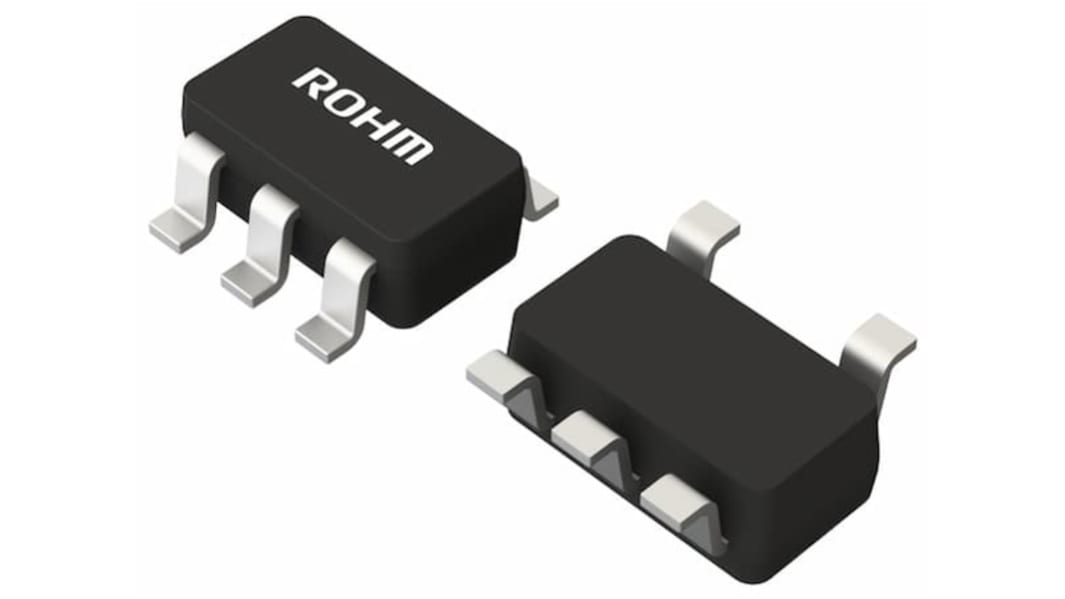

BD7281YG-CTR ROHM, Operational Amplifier, 7 MHz, 5-Pin 5.5 V SSOP-5
- RS Stock No.:
- 260-6020
- Mfr. Part No.:
- BD7281YG-CTR
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 5 units)*
£8.47
(exc. VAT)
£10.165
(inc. VAT)
Add 30 units to get free delivery
In Stock
- 2,875 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.694 | £8.47 |
| 50 - 95 | £1.46 | £7.30 |
| 100 - 245 | £1.194 | £5.97 |
| 250 - 995 | £1.11 | £5.55 |
| 1000 + | £0.934 | £4.67 |
*price indicative
- RS Stock No.:
- 260-6020
- Mfr. Part No.:
- BD7281YG-CTR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SSOP-5 | |
| Number of Channels | 1 | |
| Pin Count | 5 | |
| GBP - Gain Bandwidth Product | 7MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 0.5 pA | |
| Vos - Input Offset Voltage | 2 mV | |
| Slew Rate | 10V/μs | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | BD728xY-C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SSOP-5 | ||
Number of Channels 1 | ||
Pin Count 5 | ||
GBP - Gain Bandwidth Product 7MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 0.5 pA | ||
Vos - Input Offset Voltage 2 mV | ||
Slew Rate 10V/μs | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series BD728xY-C | ||
Automotive Standard No | ||
The ROHM input or output rail to rail CMOS operational amplifier has high slew rate. It is the most suitable for automotive requirements such as sensor amplifier, engine control unit, electric power steering, anti lock braking system and so on. It has the advantage of EMI tolerance. Furthermore, this circuit type does not oscillate even with a capacitance of 1 nF.
AEC Q100 qualified
Low input referred noise voltage density
Low Noise
Low input bias current
