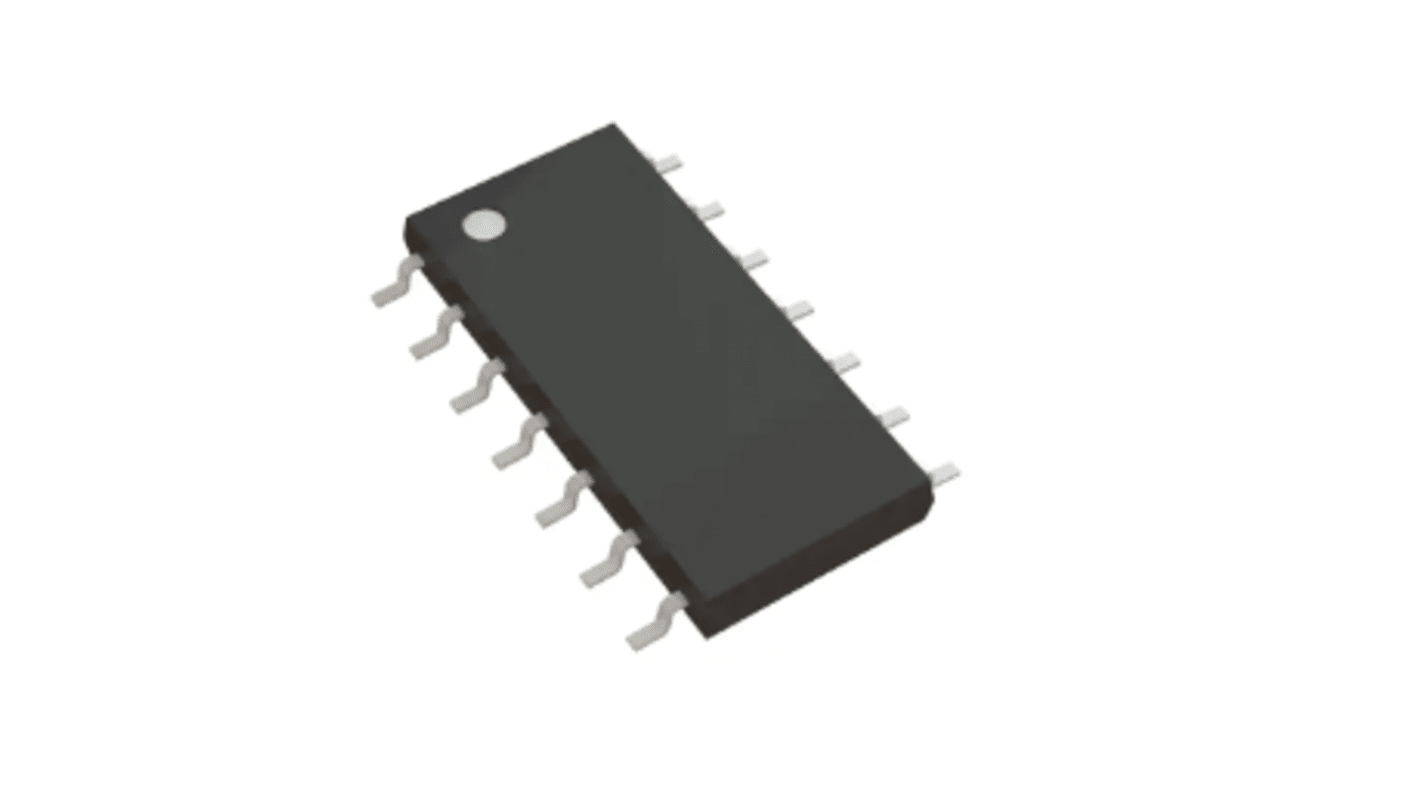

TSB514IDT STMicroelectronics, Operational Amplifier, 6 MHz, 14-Pin 36V SO-14
- RS Stock No.:
- 260-2782
- Mfr. Part No.:
- TSB514IDT
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£2.26
(exc. VAT)
£2.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 434 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.13 | £2.26 |
| 20 - 48 | £1.10 | £2.20 |
| 50 - 198 | £1.07 | £2.14 |
| 200 - 998 | £0.92 | £1.84 |
| 1000 + | £0.855 | £1.71 |
*price indicative
- RS Stock No.:
- 260-2782
- Mfr. Part No.:
- TSB514IDT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SO-14 | |
| Pin Count | 14 | |
| GBP - Gain Bandwidth Product | 6MHz | |
| Minimum Supply Voltage | 36V | |
| Maximum Supply Voltage | 36V | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 3V/μs | |
| Input Bias Current | -200 nA | |
| Vos - Input Offset Voltage | ±2 mV | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | TSB514 | |
| Automotive Standard | AEC-Q100, AEC-Q3, AEC-Q2, AEC-Q1 | |
| Input Offset Current | 10 nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SO-14 | ||
Pin Count 14 | ||
GBP - Gain Bandwidth Product 6MHz | ||
Minimum Supply Voltage 36V | ||
Maximum Supply Voltage 36V | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 3V/μs | ||
Input Bias Current -200 nA | ||
Vos - Input Offset Voltage ±2 mV | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series TSB514 | ||
Automotive Standard AEC-Q100, AEC-Q3, AEC-Q2, AEC-Q1 | ||
Input Offset Current 10 nA | ||
- COO (Country of Origin):
- MA
The STMicroelectronics op-amp featuring rail-to-rail input and output and these amplifiers have the advantage of offering a large span of supply voltage and a wide bandwidth useful in a wide variety of applications such as filters, power supply and motor control, actuator driving and resistive transducer.
Integrated EMI filter
Automotive-grade available
