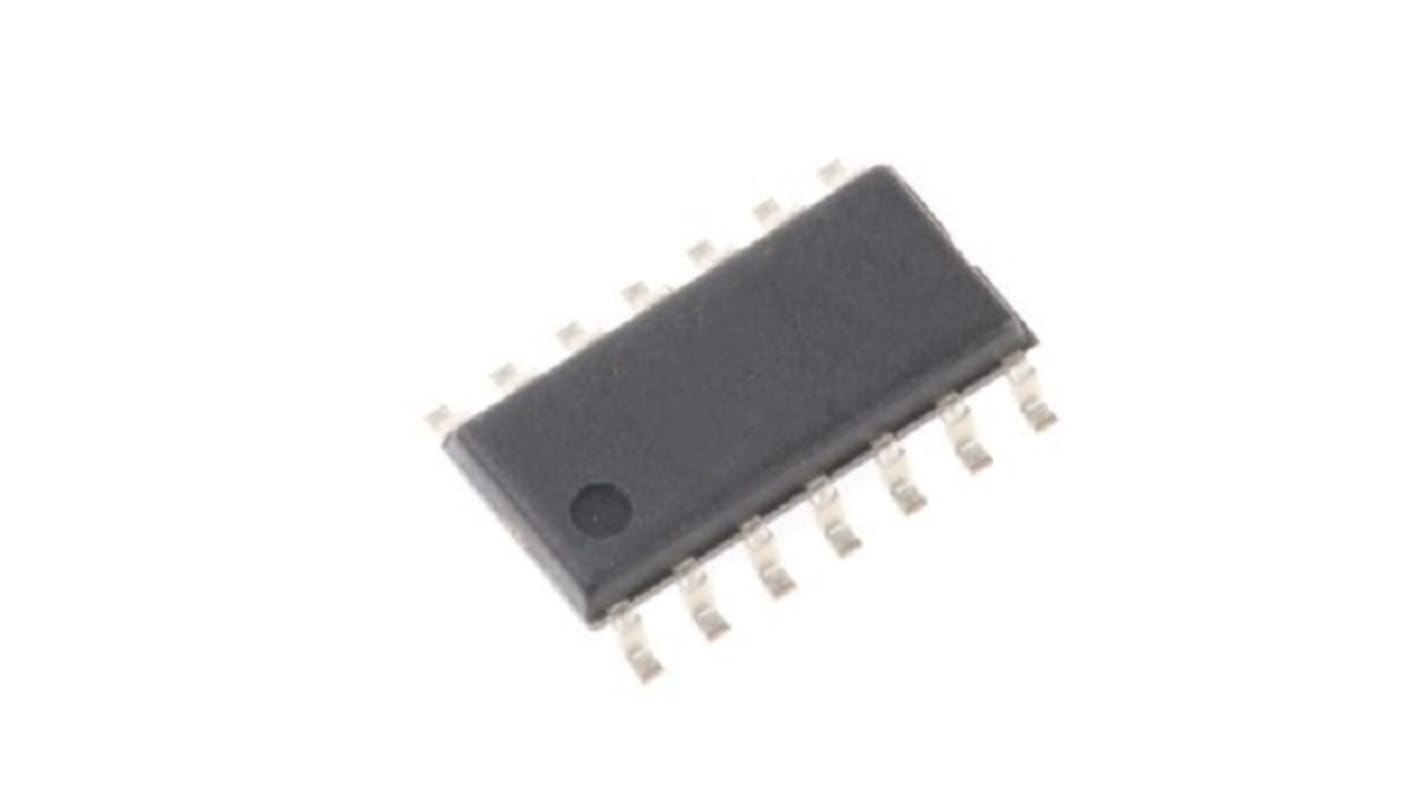

TSB514 STMicroelectronics, Quad Operational Amplifier, Op Amp, RRIO, 6MHz, 2.7 → 36 V, 14-Pin TSSOP14
- RS Stock No.:
- 248-4904
- Mfr. Part No.:
- TSB514
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£4,722.50
(exc. VAT)
£5,667.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,997,500 unit(s) shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £1.889 | £4,722.50 |
*price indicative
- RS Stock No.:
- 248-4904
- Mfr. Part No.:
- TSB514
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Amplifier Type | Quad Operational Amplifier | |
Mounting Type | Surface Mount | |
Package Type | TSSOP14 | |
Power Supply Type | Dual | |
Pin Count | 14 | |
Typical Single Supply Voltage | 2.7 → 36 V | |
Typical Gain Bandwidth Product | 6MHz | |
Rail to Rail | Rail to Rail Input/Output | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Amplifier Type Quad Operational Amplifier | ||
Mounting Type Surface Mount | ||
Package Type TSSOP14 | ||
Power Supply Type Dual | ||
Pin Count 14 | ||
Typical Single Supply Voltage 2.7 → 36 V | ||
Typical Gain Bandwidth Product 6MHz | ||
Rail to Rail Rail to Rail Input/Output | ||
The STMicroelectronics product is a 6 MHz bandwidth operational amplifier featuring rail to rail input and output, which is guaranteed to operate from single supply as well as from dual supplies. This amplifier has the advantage of offering a large span of supply voltage and a wide bandwidth.
Rail to rail input and output
Low offset voltage
Wide supply voltage range from 2.7 V to 36 V
Low noise
Integrated EMI filter
2 kV HBM ESD tolerance
Low offset voltage
Wide supply voltage range from 2.7 V to 36 V
Low noise
Integrated EMI filter
2 kV HBM ESD tolerance
