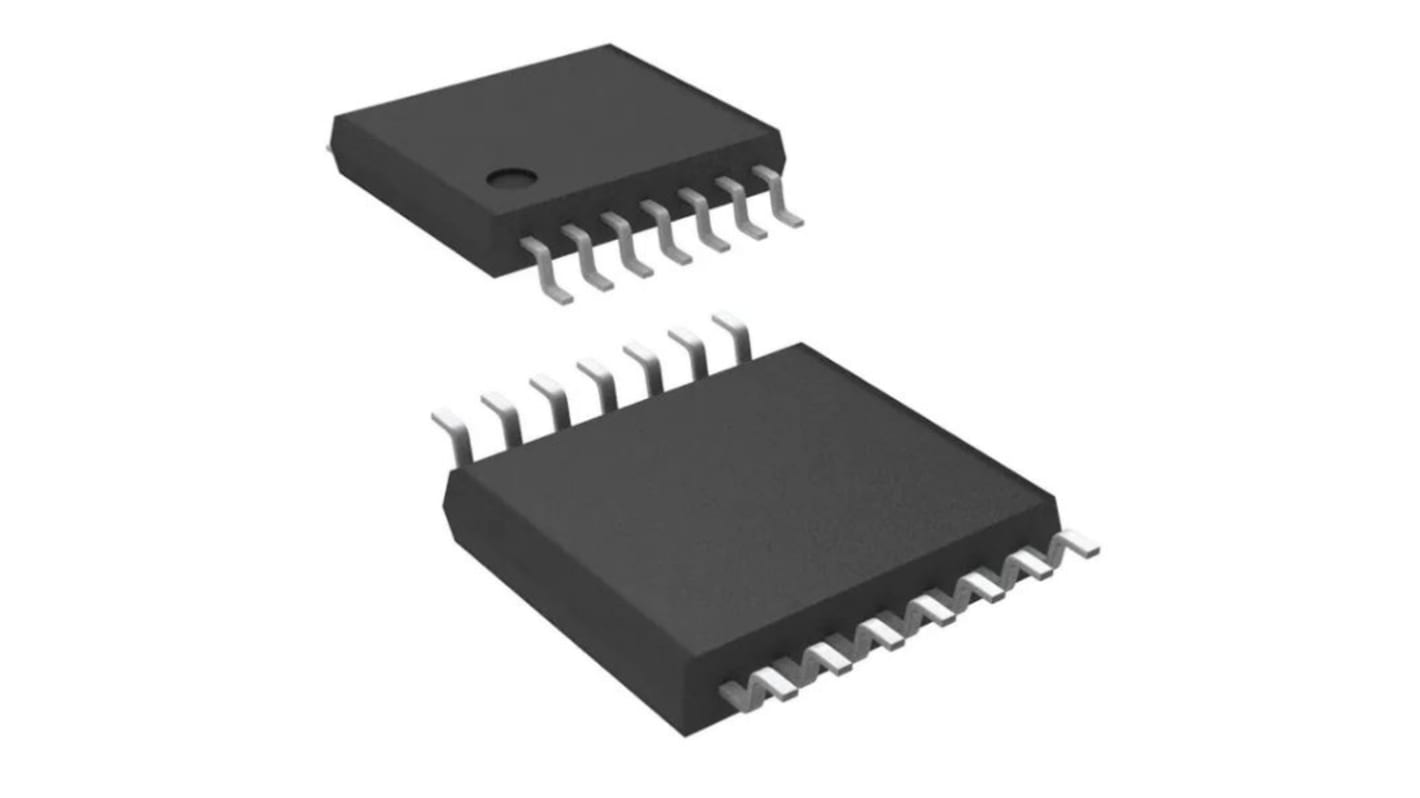

LM224PT STMicroelectronics, Operational Amplifier, 1.3 MHz, 16-Pin 30V TSSOP-14
- RS Stock No.:
- 239-6297
- Mfr. Part No.:
- LM224PT
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 15 units)*
£3.18
(exc. VAT)
£3.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6,795 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 135 | £0.212 | £3.18 |
| 150 - 360 | £0.187 | £2.81 |
| 375 - 1485 | £0.168 | £2.52 |
| 1500 - 7485 | £0.143 | £2.15 |
| 7500 + | £0.133 | £2.00 |
*price indicative
- RS Stock No.:
- 239-6297
- Mfr. Part No.:
- LM224PT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | TSSOP-14 | |
| Number of Channels | 4 | |
| Pin Count | 16 | |
| GBP - Gain Bandwidth Product | 1.3MHz | |
| Maximum Supply Voltage | 30V | |
| Minimum Supply Voltage | 3V | |
| Input Bias Current | 20 nA | |
| Vos - Input Offset Voltage | 5 mV | |
| Slew Rate | 0.4V/μs | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 5.1mm | |
| Standards/Approvals | RoHS | |
| Series | LM224x | |
| Height | 1.2mm | |
| Automotive Standard | No | |
| Output Current | 40mA | |
| Input Offset Current | 2 nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type TSSOP-14 | ||
Number of Channels 4 | ||
Pin Count 16 | ||
GBP - Gain Bandwidth Product 1.3MHz | ||
Maximum Supply Voltage 30V | ||
Minimum Supply Voltage 3V | ||
Input Bias Current 20 nA | ||
Vos - Input Offset Voltage 5 mV | ||
Slew Rate 0.4V/μs | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Length 5.1mm | ||
Standards/Approvals RoHS | ||
Series LM224x | ||
Height 1.2mm | ||
Automotive Standard No | ||
Output Current 40mA | ||
Input Offset Current 2 nA | ||
The STMicroelectronics OP-AMP is a low-power quad operational amplifiers and operates from a single power supply over a wide range of voltages.
Wide gain bandwidth 1.3 MHz
Input common mode voltage range includes ground
Large voltage gain 100 dB
Very low supply current/amplifier 375 μA
Low input bias current 20 nA
Low input voltage 3 mV max.
Low input offset current 2 nA
