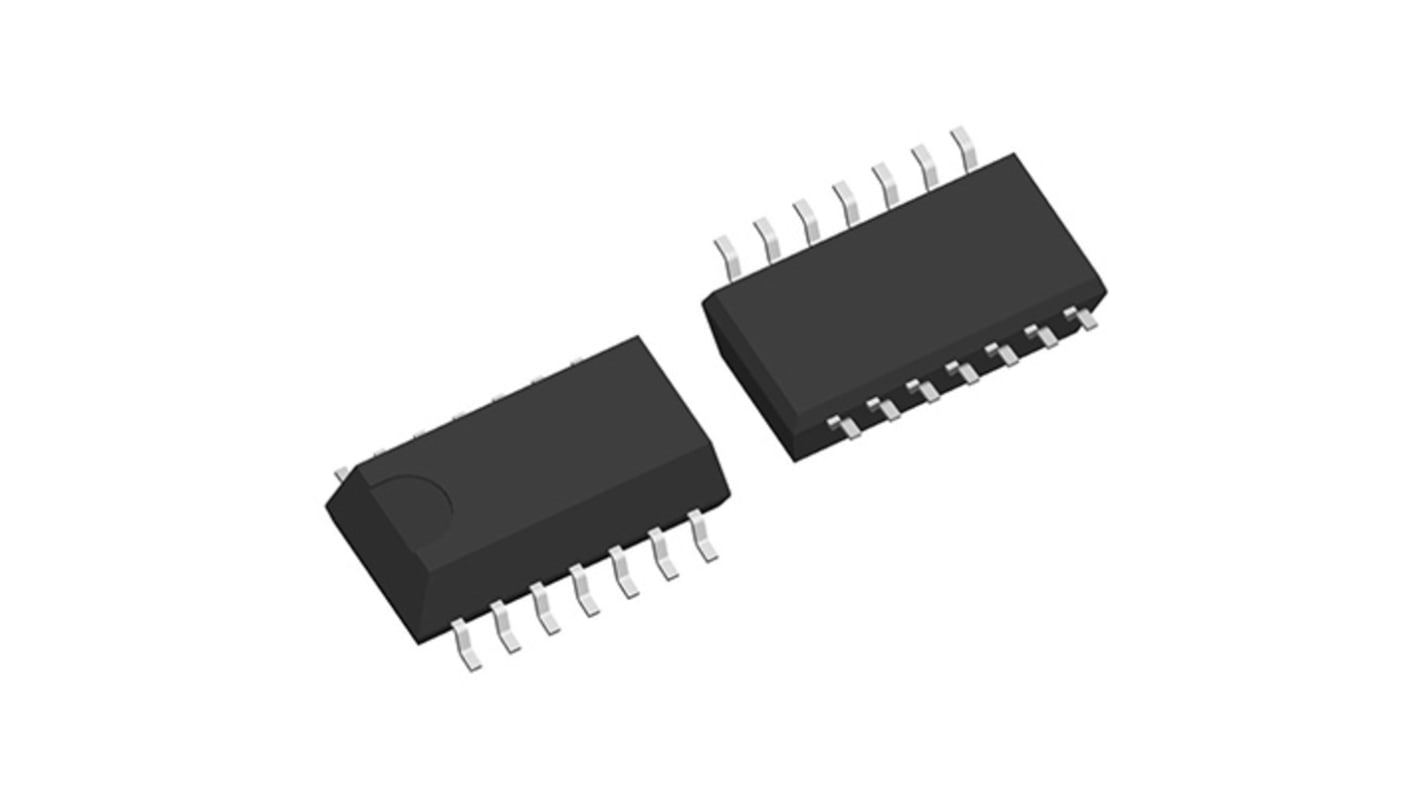

NJM324CG-TE2 Nisshinbo Micro Devices, Quad Operational Amplifier, Op Amp, 1.3MHz, 3 → 30 V, 14-Pin SOP14
- RS Stock No.:
- 244-8605
- Mfr. Part No.:
- NJM324CG-TE2
- Brand:
- Nisshinbo Micro Devices
Bulk discount available
Subtotal (1 reel of 2500 units)*
£1,135.00
(exc. VAT)
£1,362.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | £0.454 | £1,135.00 |
| 5000 - 5000 | £0.386 | £965.00 |
| 7500 + | £0.347 | £867.50 |
*price indicative
- RS Stock No.:
- 244-8605
- Mfr. Part No.:
- NJM324CG-TE2
- Brand:
- Nisshinbo Micro Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Amplifier Type | Quad Operational Amplifier | |
| Mounting Type | Surface Mount | |
| Package Type | SOP14 | |
| Power Supply Type | Dual, Single | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 3 → 30 V | |
| Typical Gain Bandwidth Product | 1.3MHz | |
| Rail to Rail | No | |
Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Amplifier Type Quad Operational Amplifier | ||
Mounting Type Surface Mount | ||
Package Type SOP14 | ||
Power Supply Type Dual, Single | ||
Pin Count 14 | ||
Typical Single Supply Voltage 3 → 30 V | ||
Typical Gain Bandwidth Product 1.3MHz | ||
Rail to Rail No | ||
The New Japan Radio NJM324C series consists of independent, high gain, internally frequency compensated operation amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Operating temperature range is -40°C to 85°C
