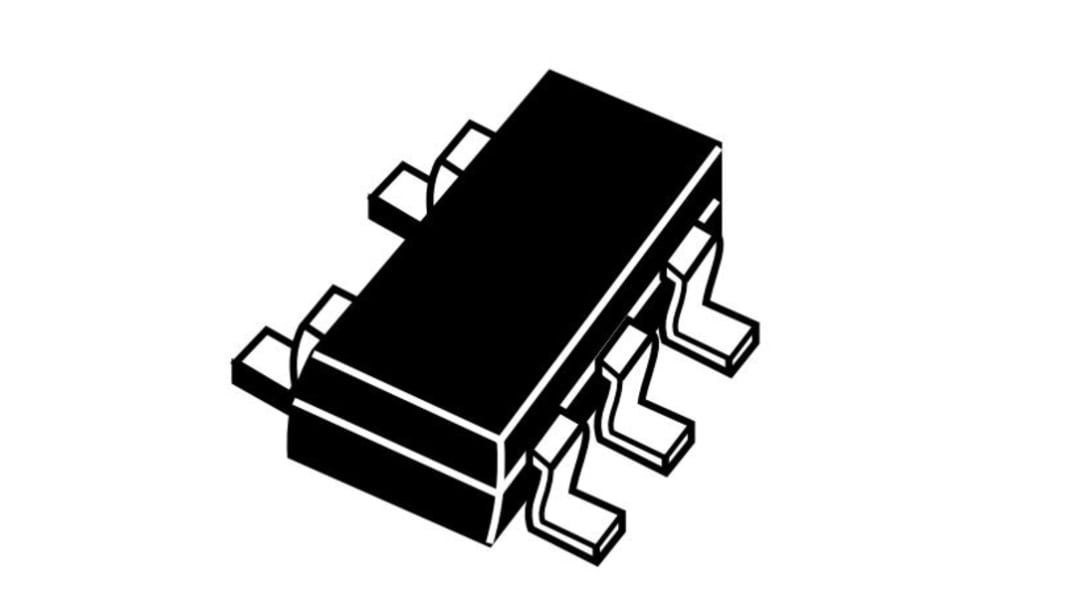

TSB7191IYLT STMicroelectronics, Operational Amplifier, 22 MHz, 5-Pin 36V SOT-23
- RS Stock No.:
- 239-5548
- Mfr. Part No.:
- TSB7191IYLT
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 10 units)*
£13.58
(exc. VAT)
£16.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,860 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.358 | £13.58 |
| 50 - 90 | £1.322 | £13.22 |
| 100 - 240 | £1.288 | £12.88 |
| 250 + | £1.256 | £12.56 |
*price indicative
- RS Stock No.:
- 239-5548
- Mfr. Part No.:
- TSB7191IYLT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Number of Channels | 1 | |
| Pin Count | 5 | |
| GBP - Gain Bandwidth Product | 22MHz | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 36V | |
| Vos - Input Offset Voltage | ±1100 μV | |
| Input Bias Current | 0 nA | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 12V/μs | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.45mm | |
| Length | 3mm | |
| Standards/Approvals | JEDEC, ANSI/ESD STM5.3.1 | |
| Series | TSB7191 | |
| Automotive Standard | AEC-Q3, AEC-Q100 | |
| Input Offset Current | 10 nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Number of Channels 1 | ||
Pin Count 5 | ||
GBP - Gain Bandwidth Product 22MHz | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 36V | ||
Vos - Input Offset Voltage ±1100 μV | ||
Input Bias Current 0 nA | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 12V/μs | ||
Maximum Operating Temperature 125°C | ||
Height 1.45mm | ||
Length 3mm | ||
Standards/Approvals JEDEC, ANSI/ESD STM5.3.1 | ||
Series TSB7191 | ||
Automotive Standard AEC-Q3, AEC-Q100 | ||
Input Offset Current 10 nA | ||
The STMicroelectronics BiCMOS TSB7191, TSB7191A, TSB7192 and the TSB7192A 22 MHz bandwidth operational amplifier feature rail-to-rail input and output, which is guaranteed to operate from +2.7 V to +36 V single supply as well as from ±1.35 V to ±18 V dual supplies. These amplifiers have the advantage of offering a large span of supply voltage and an excellent input offset voltage of 300 μV maximum at 25 °C. The combination of wide bandwidth, slew rate, low noise, rail-to-rail capability and precision makes the TSB7191, TSB7191A, TSB7192 and the TSB7192A useful in a wide variety of applications such as: filters, power supply and motor control, actuator driving, hall effect sensors and resistive transducers.
Rail-to-rail input and output
Low offset voltage: 300 μV maximum
Stable with gain +10/-9
Automotive-grade available
Integrated EMI filter
Extended temperature range: -40 °C to +125 °C
Low noise: 12 nV/√Hz
