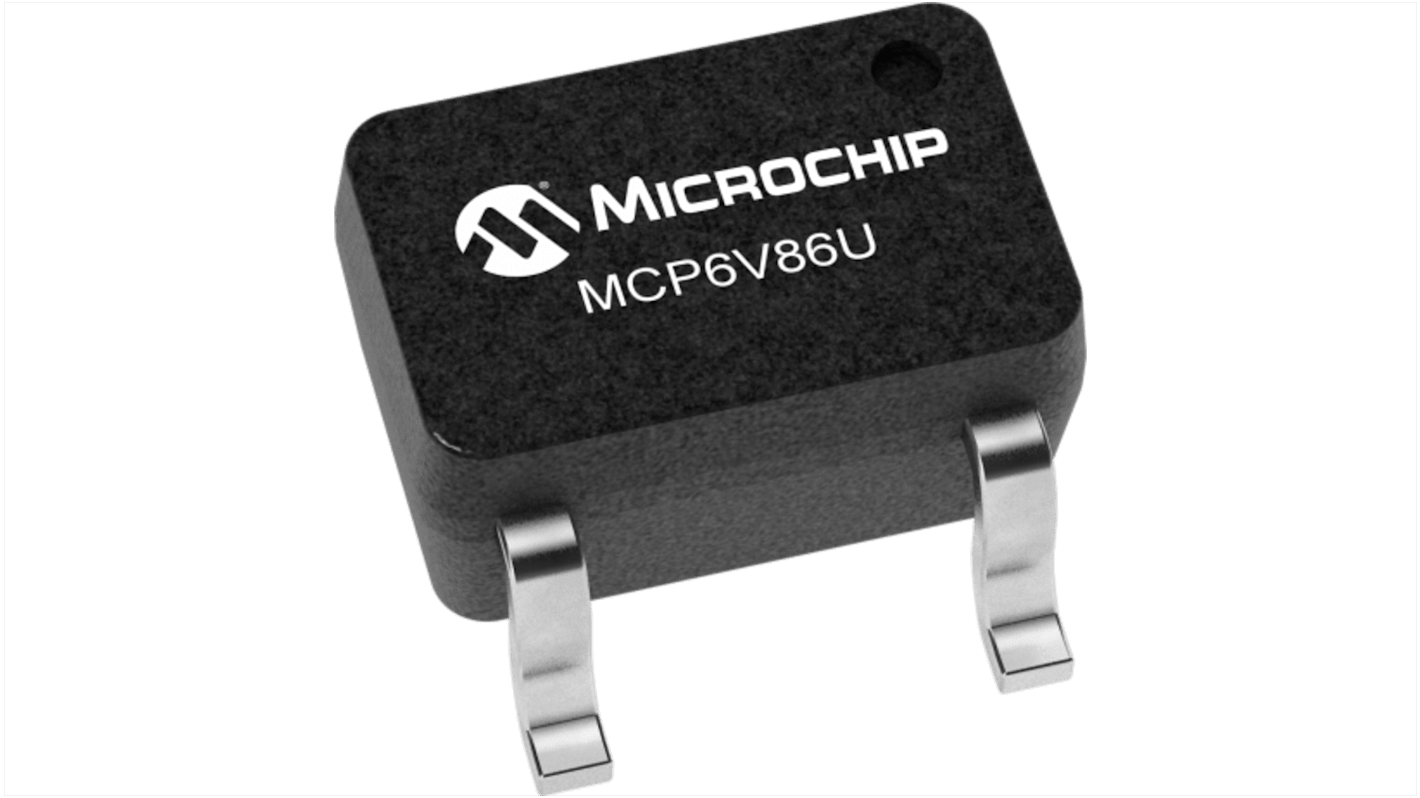

MCP6V86UT-E/OT Microchip, Operational Amplifier, 5 MHz, 5-Pin 5.5 V SOT-23
- RS Stock No.:
- 215-5930
- Mfr. Part No.:
- MCP6V86UT-E/OT
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 10 units)*
£9.35
(exc. VAT)
£11.22
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 40 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.935 | £9.35 |
| 50 - 90 | £0.775 | £7.75 |
| 100 - 240 | £0.724 | £7.24 |
| 250 - 990 | £0.705 | £7.05 |
| 1000 + | £0.687 | £6.87 |
*price indicative
- RS Stock No.:
- 215-5930
- Mfr. Part No.:
- MCP6V86UT-E/OT
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Pin Count | 5 | |
| GBP - Gain Bandwidth Product | 5MHz | |
| Minimum Supply Voltage | 2.2V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 4V/μs | |
| Input Bias Current | 50 pA | |
| Vos - Input Offset Voltage | 25 μV | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.45mm | |
| Width | 2.8 mm | |
| Length | 2.9mm | |
| Series | MCP6V86 | |
| Standards/Approvals | No | |
| Output Current | 30mA | |
| Automotive Standard | No | |
| Input Offset Current | 400 pA | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
GBP - Gain Bandwidth Product 5MHz | ||
Minimum Supply Voltage 2.2V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 4V/μs | ||
Input Bias Current 50 pA | ||
Vos - Input Offset Voltage 25 μV | ||
Maximum Operating Temperature 125°C | ||
Height 1.45mm | ||
Width 2.8 mm | ||
Length 2.9mm | ||
Series MCP6V86 | ||
Standards/Approvals No | ||
Output Current 30mA | ||
Automotive Standard No | ||
Input Offset Current 400 pA | ||
The Microchip MCP6V86/6U/7/9 family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These devices provide a gain bandwidth product of 5 MHz, are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 2.2V with a maximum quiescent current of only 770 uA per channel.
Zero-Drift architecture
Maximum offset of only 25 uV
Maximum offset drift of 150 nV/C
Enhanced EMI rejection
