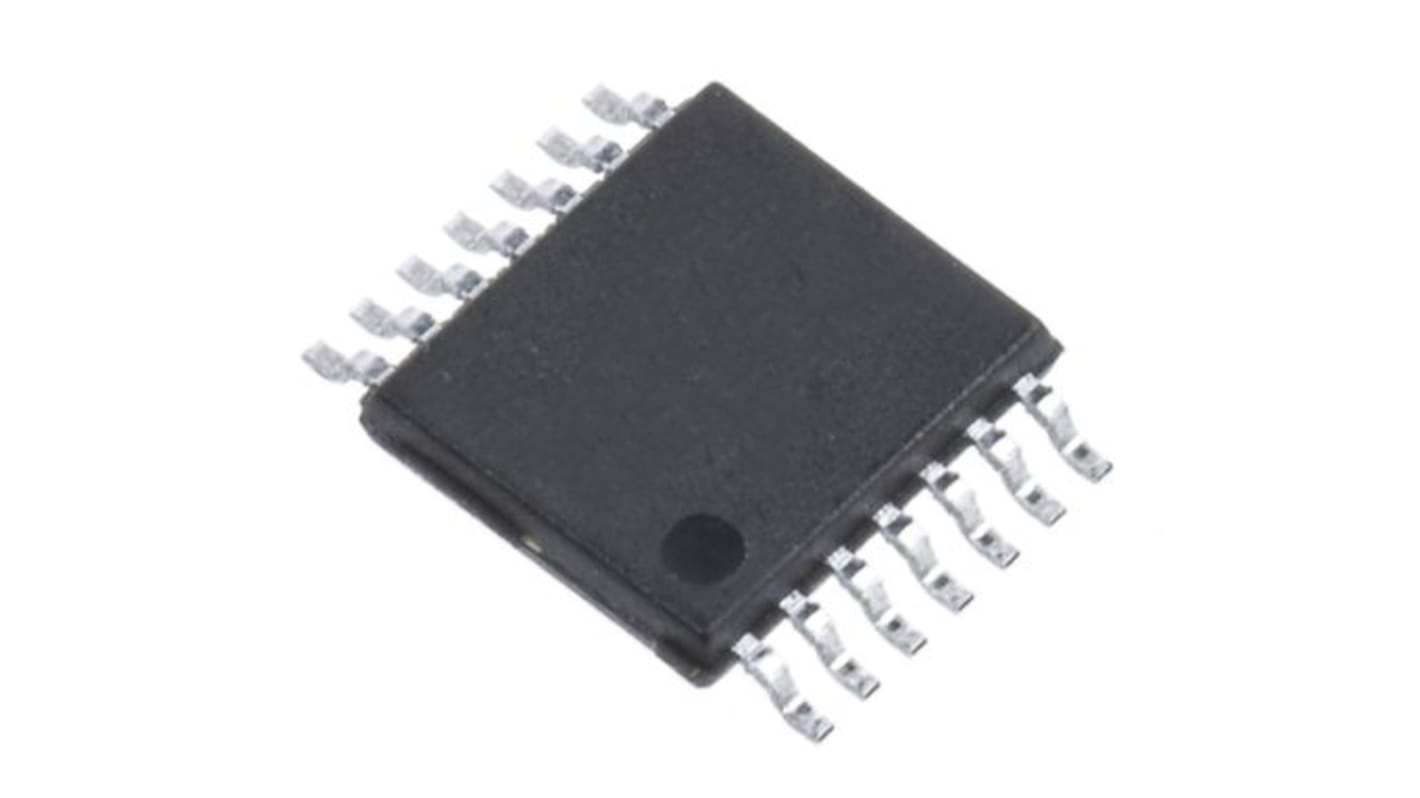

LM2902PT STMicroelectronics, Op Amp, 1.3MHz, 3 → 30 V, 14-Pin TSSOP
- RS Stock No.:
- 196-1964
- Mfr. Part No.:
- LM2902PT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£250.00
(exc. VAT)
£300.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.10 | £250.00 |
*price indicative
- RS Stock No.:
- 196-1964
- Mfr. Part No.:
- LM2902PT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Dual, Single | |
| Number of Channels per Chip | 2 | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 3 → 30 V | |
| Typical Gain Bandwidth Product | 1.3MHz | |
| Typical Dual Supply Voltage | ±1.5 to ±15V | |
| Typical Slew Rate | 0.4V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Output Current | 20 mA | |
| Typical Voltage Gain | 100 dB | |
| Maximum Input Voltage | 30 V | |
| Offset Voltage | 9mV | |
| Minimum Input Voltage | 3 V | |
| Length | 5.1mm | |
| Input Offset Current | 2nA | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Height | 1mm | |
| Width | 4.5mm | |
| Input Voltage Range | 3 → 30 V | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Dual, Single | ||
Number of Channels per Chip 2 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 3 → 30 V | ||
Typical Gain Bandwidth Product 1.3MHz | ||
Typical Dual Supply Voltage ±1.5 to ±15V | ||
Typical Slew Rate 0.4V/µs | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Output Current 20 mA | ||
Typical Voltage Gain 100 dB | ||
Maximum Input Voltage 30 V | ||
Offset Voltage 9mV | ||
Minimum Input Voltage 3 V | ||
Length 5.1mm | ||
Input Offset Current 2nA | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Height 1mm | ||
Width 4.5mm | ||
Input Voltage Range 3 → 30 V | ||
- COO (Country of Origin):
- CN
This circuit consists of four independent, high-gain operational amplifiers (op amps) which employ internal frequency compensation and are specifically designed for automotive and industrial control systems. The device operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent from the power supply voltage magnitude.
Wide gain bandwidth: 1.3 MHz
Input common-mode voltage range includes negative rail
Large voltage gain: 100 dB
Supply current per amplifier: 375 μA
Low input bias current: 20 nA
Low input offset current: 2 nA
Wide power supply range:
Single supply: 3 V to 30 V
Dual supplies: ± 1.5 V to ± 15 V
Input common-mode voltage range includes negative rail
Large voltage gain: 100 dB
Supply current per amplifier: 375 μA
Low input bias current: 20 nA
Low input offset current: 2 nA
Wide power supply range:
Single supply: 3 V to 30 V
Dual supplies: ± 1.5 V to ± 15 V
