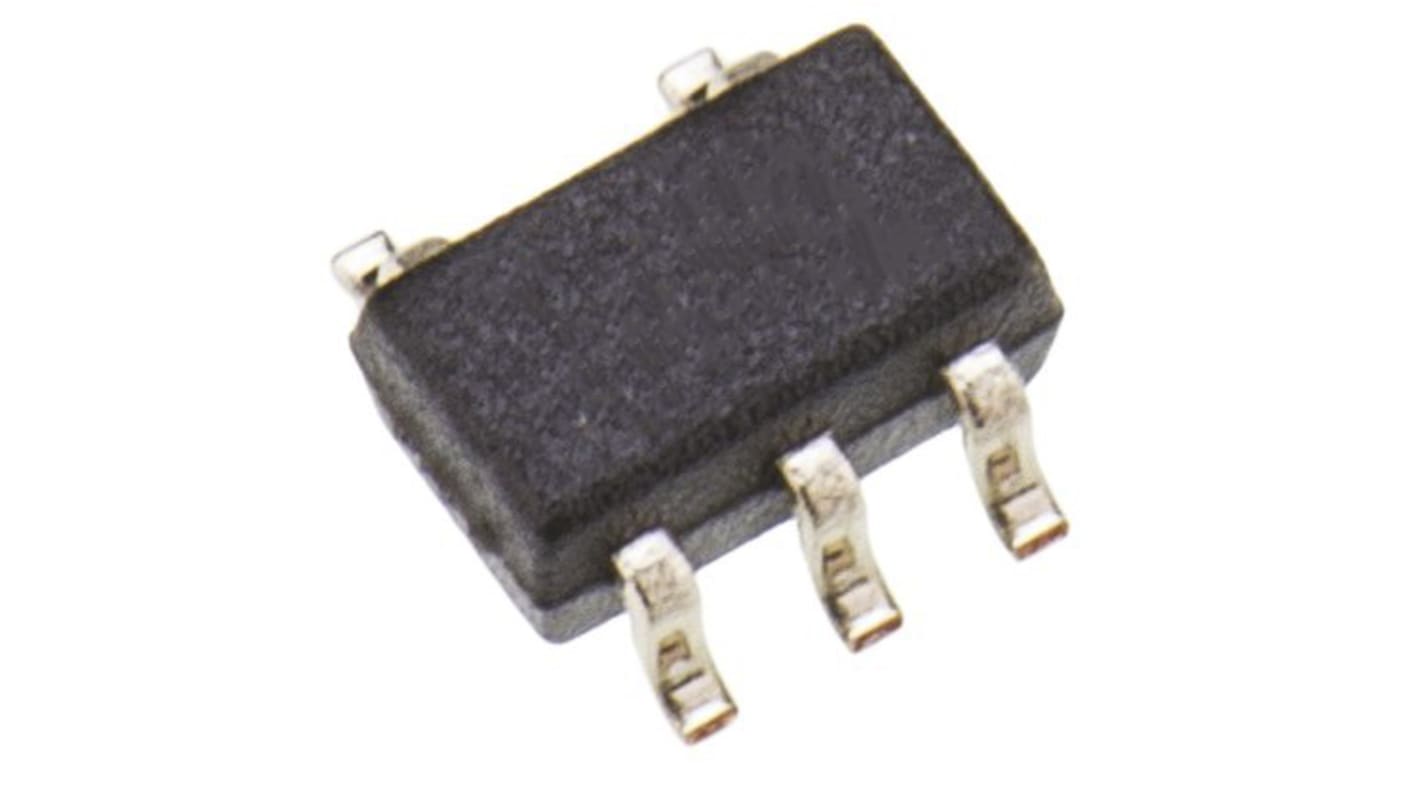

MAX9910EXK+T Maxim Integrated, Operational Amplifier, Op Amps, 200kHz 1 kHz, 1.8 → 5.5 V, 5-Pin SC-70

View all Op Amps
Bulk discount available

Subtotal 30 units (supplied on a continuous strip)*

£26.40

(exc. VAT)

£31.80

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 500 unit(s), ready to ship
Units
Per unit
30 - 90£0.88
100 - 240£0.675
250 - 490£0.596
500 +£0.565

*price indicative

Packaging Options:
RS Stock No.:
190-6661P
Mfr. Part No.:
MAX9910EXK+T
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

SC-70

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

5

Typical Single Supply Voltage

1.8 → 5.5 V

Typical Gain Bandwidth Product

200kHz

Output Type

Rail to Rail

Typical Slew Rate

0.1V/µs

Maximum Operating Frequency

1 kHz

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Maximum Input Voltage

5.5 V

Offset Voltage

5mV

Output Current

15 mA

Typical Voltage Gain

120 dB

Minimum Input Voltage

1.8 V

Input Offset Current

20pA

Length

2.2mm

Typical Input Voltage Noise Density

400nV/√Hz

Height

1mm

Dimensions

2.2 x 1.35 x 1mm

Width

1.35mm

Input Voltage Range

1.8 → 5.5 V

200kHz GBW
Ultra-Low 4μA Supply Current
Single 1.8V to 5.5V Supply Voltage Range
Ultra-Low 1pA Input Bias Current
Rail-to-Rail Input and Output Voltage Ranges
Low ±200μV Input Offset Voltage
Low 0.001μA Shutdown Current
High-Impedance Output During Shutdown (MAX9911/MAX9913)
Unity-Gain Stable
Available in Tiny WLP, SC70, SOT23, and μMAX Packages
Applications
Cellular Handsets
Data-Acquisition Equipment
Digital Cameras (DIGICAMs)
Glucose Meters
GPS Solutions
IP Camera
Laptops
MP3 and Portable Media Players
Portable Medical Devices
Portable Test Equipment
