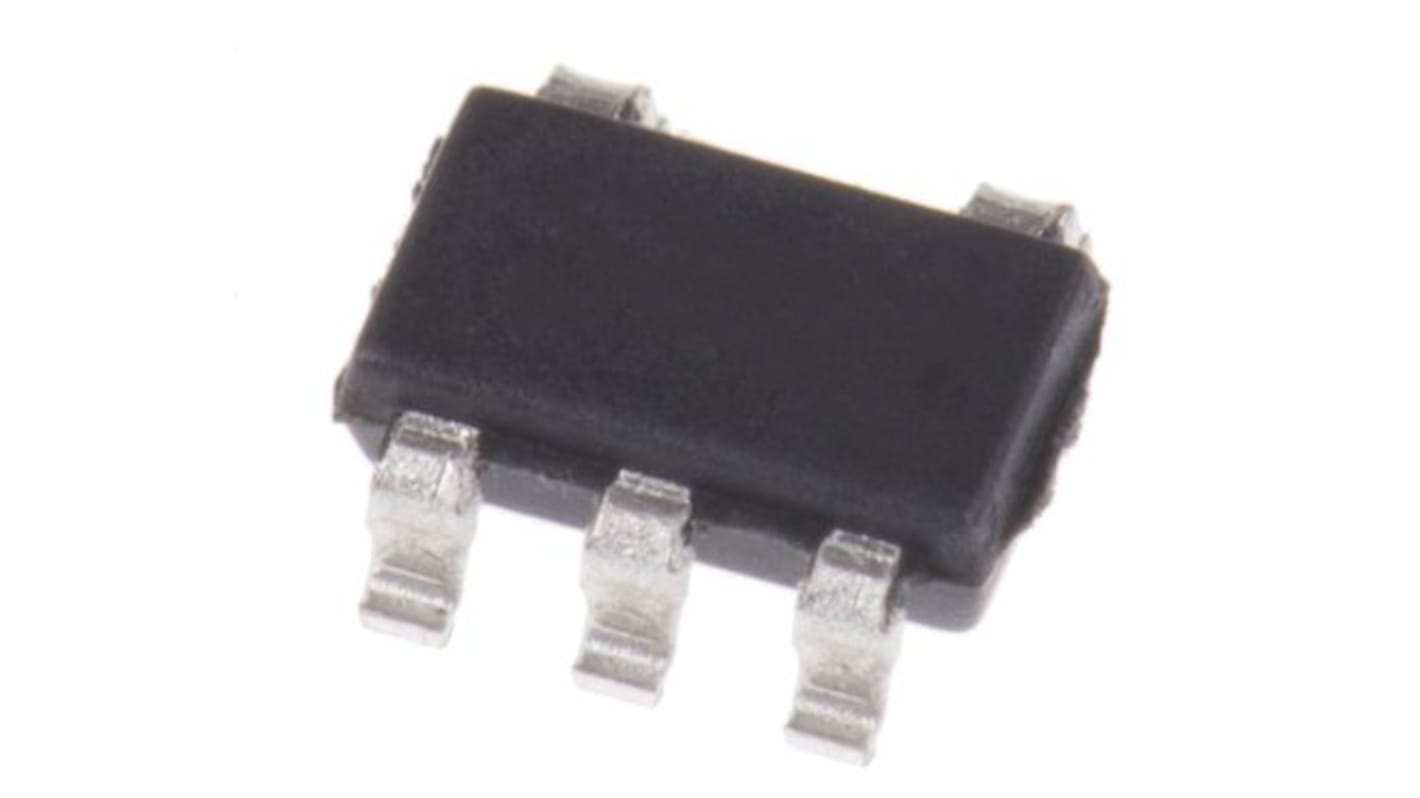

MAX4230AUK+T Maxim Integrated, Operational Amplifier, 10 MHz, 5-Pin 5.5V SOT-23
- RS Stock No.:
- 190-6362
- Mfr. Part No.:
- MAX4230AUK+T
- Brand:
- Maxim Integrated
Subtotal (1 pack of 5 units)*
£6.54
(exc. VAT)
£7.85
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 475 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.308 | £6.54 |
*price indicative
- RS Stock No.:
- 190-6362
- Mfr. Part No.:
- MAX4230AUK+T
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Number of Channels | 1 | |
| Pin Count | 5 | |
| GBP - Gain Bandwidth Product | 10MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.7V | |
| Vos - Input Offset Voltage | ±8 mV | |
| Input Bias Current | 1 pA | |
| Slew Rate | 10V/μs | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.3mm | |
| Length | 3mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q100 | |
| Output Current | 200mA | |
| Input Offset Current | 1 pA | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Number of Channels 1 | ||
Pin Count 5 | ||
GBP - Gain Bandwidth Product 10MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.7V | ||
Vos - Input Offset Voltage ±8 mV | ||
Input Bias Current 1 pA | ||
Slew Rate 10V/μs | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.3mm | ||
Length 3mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q100 | ||
Output Current 200mA | ||
Input Offset Current 1 pA | ||
- COO (Country of Origin):
- MY
Optimized for Headsets and High-Current Outputs
200mA Output Drive Capability
100dB Voltage Gain (RL = 100kΩ)
85dB Power-Supply Rejection Ratio
No Phase Reversal for Overdriven Inputs
Unity-Gain Stable for Capacitive Loads to 780pF
Suitable for High-Bandwidth Applications
10MHz Gain-Bandwidth Product
High Slew Rate: 10V/μs
Extends the Battery Life of Portable Applications
1.1mA Supply Current per Amplifier
Low-Power Shutdown Mode Reduces Supply Current to < 1μA
Small Package Options
Tiny, 2.1mm x 2.0mm Space-Saving SC70 Package
Applications
Audio Hands-Free Car Phones (Kits)
Digital-to-Analog Converter Buffers
Motor Drivers
Portable Headphone Speaker Drivers (32Ω)
Portable/Battery-Powered Audio Applications
RF PA Biasing Controls in Handset Applications
Tablet/Notebook Computers
Transformer/Line Drivers
