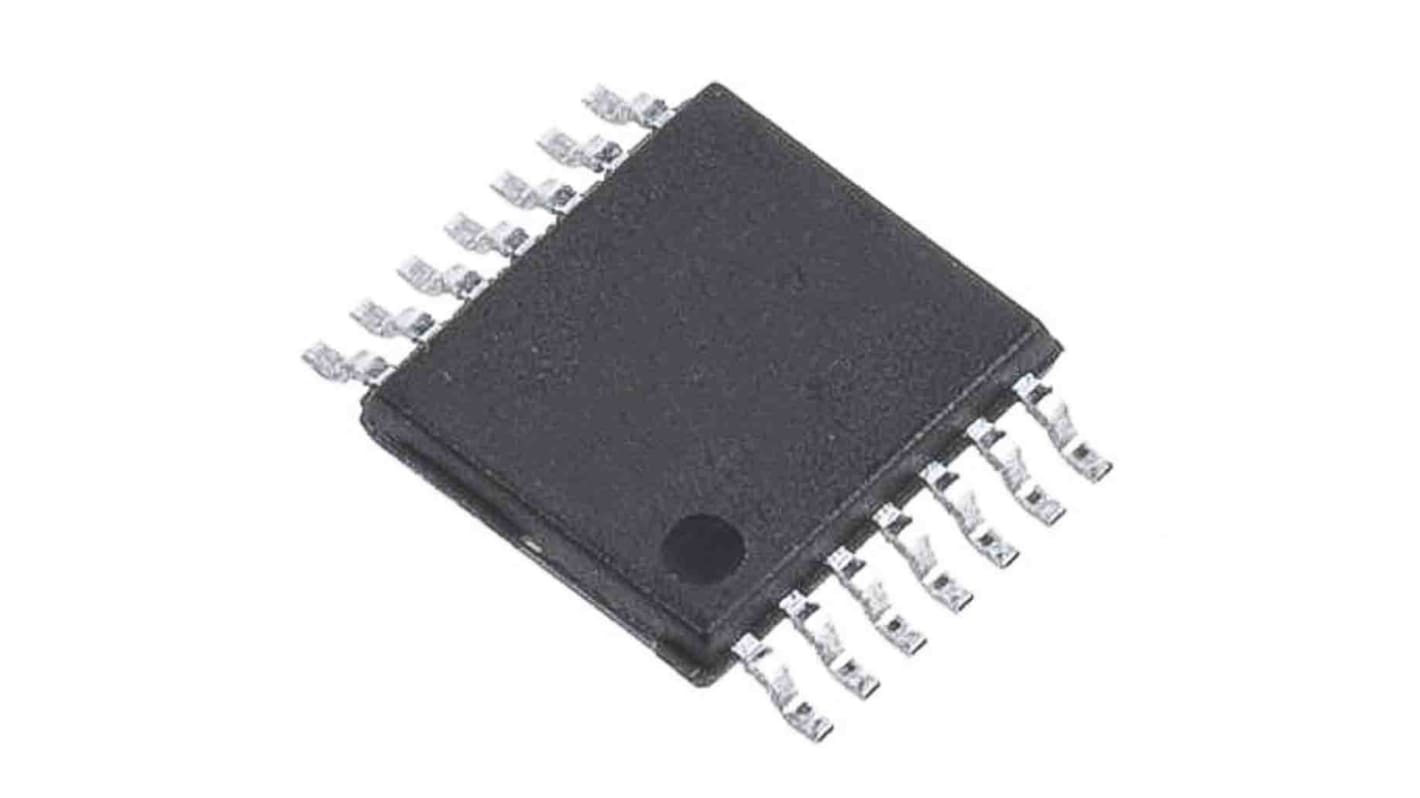

TS924AIPT STMicroelectronics, Operational Amplifier, Op Amp, RRO, 4MHz 1 kHz, 2.7 → 12 V, 14-Pin TSSOP
- RS Stock No.:
- 189-2053P
- Mfr. Part No.:
- TS924AIPT
- Brand:
- STMicroelectronics
Subtotal 10 units (supplied on a continuous strip)*
£17.60
(exc. VAT)
£21.10
(inc. VAT)
FREE delivery for orders over £50.00
- 775 unit(s) ready to ship
Units | Per unit |
---|---|
10 - 95 | £1.76 |
100 - 495 | £1.224 |
500 - 995 | £1.192 |
1000 + | £0.986 |
*price indicative
- RS Stock No.:
- 189-2053P
- Mfr. Part No.:
- TS924AIPT
- Brand:
- STMicroelectronics
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Amplifier Type | Operational Amplifier | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Power Supply Type | Single | |
Number of Channels per Chip | 4 | |
Pin Count | 14 | |
Typical Single Supply Voltage | 2.7 → 12 V | |
Typical Gain Bandwidth Product | 4MHz | |
Output Type | Rail to Rail | |
Typical Slew Rate | 1.3V/µs | |
Maximum Operating Frequency | 1 kHz | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Rail to Rail | Rail to Rail Output | |
Maximum Input Voltage | 12 V | |
Typical Voltage Gain | 200 V/mV | |
Offset Voltage | 0.9mV | |
Output Current | 80 mA | |
Input Offset Current | 30nA | |
Dimensions | 5.1 x 4.5 x 1.05mm | |
Height | 1.05mm | |
Typical Input Voltage Noise Density | 9nV/√Hz | |
Minimum Input Voltage | 2.7 V | |
Input Voltage Range | 2.7 → 12 V | |
Width | 4.5mm | |
Length | 5.1mm | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Amplifier Type Operational Amplifier | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Single | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 2.7 → 12 V | ||
Typical Gain Bandwidth Product 4MHz | ||
Output Type Rail to Rail | ||
Typical Slew Rate 1.3V/µs | ||
Maximum Operating Frequency 1 kHz | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Rail to Rail Rail to Rail Output | ||
Maximum Input Voltage 12 V | ||
Typical Voltage Gain 200 V/mV | ||
Offset Voltage 0.9mV | ||
Output Current 80 mA | ||
Input Offset Current 30nA | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Height 1.05mm | ||
Typical Input Voltage Noise Density 9nV/√Hz | ||
Minimum Input Voltage 2.7 V | ||
Input Voltage Range 2.7 → 12 V | ||
Width 4.5mm | ||
Length 5.1mm | ||
- COO (Country of Origin):
- PH
Low noise: 9 nV/√ Hz
Low distortion
High output current: 80 mA (able to drive 32 Ω loads)
High-speed: 4 MHz, 1.3 V/μs
Operating range from 2.7 V to 12 V
Low input offset voltage: 900 μV max. (TS924A)
ESD internal protection: 3 kV
Latch-up immunity
Macro model included in this specification
Related products
See the TS921 device for the single version and the TS922 device for the dual version
See the TSX56x series for smaller packages
